SUZUKI OEM PART NUMBERS: • Suzuki: 31400-59L00 / 3140059L00
DENSO OEM PART NUMBERS: • Denso: 104210-1070 / 1042101070
SPECIFICATIONS: • 12 Volt / 130 Amp / Clockwise (CW) Rotation
• Internal Regulator, Internal Fan, Negative Ground
• Pulley: 6-Groove Serpentine Clutch (SC6)
• Stator: Denso Hairpin • Design: IR/IF
• Engine: 2.4L J24B 2393cc 146 CID four cylinder
• Condition: New Aftermarket
SUZUKI APPLICATIONS: • Suzuki Kizashi S 2.4L J24B 2393cc (2010-2013)
• Suzuki Kizashi SE 2.4L J24B 2393cc (2010-2013)
• Suzuki Kizashi SLS 2.4L J24B 2393cc (2010-2013)
• Suzuki Kizashi GTS 2.4L J24B 2393cc (2010-2013)
• Suzuki Kizashi Sport 2.4L J24B 2393cc (2010-2013)
• Front wheel drive and i-AWD take the same alternator
• CVT and six speed manual take the same alternator
THE ENGINE: • J24B 2.4L four cylinder — 2393cc 146 cubic inch
• Bore 92.0mm / Stroke 90.0mm
• Sixteen valve dual overhead camshaft
• The only engine offered in the Kizashi
ONE NUMBER ACROSS THE WHOLE RUN: • Suzuki used 31400-59L00 for every US Kizashi model year
• 2010 2011 2012 and 2013 all take this alternator
• Every trim and both drivetrains share it
• No mid-cycle number change exists

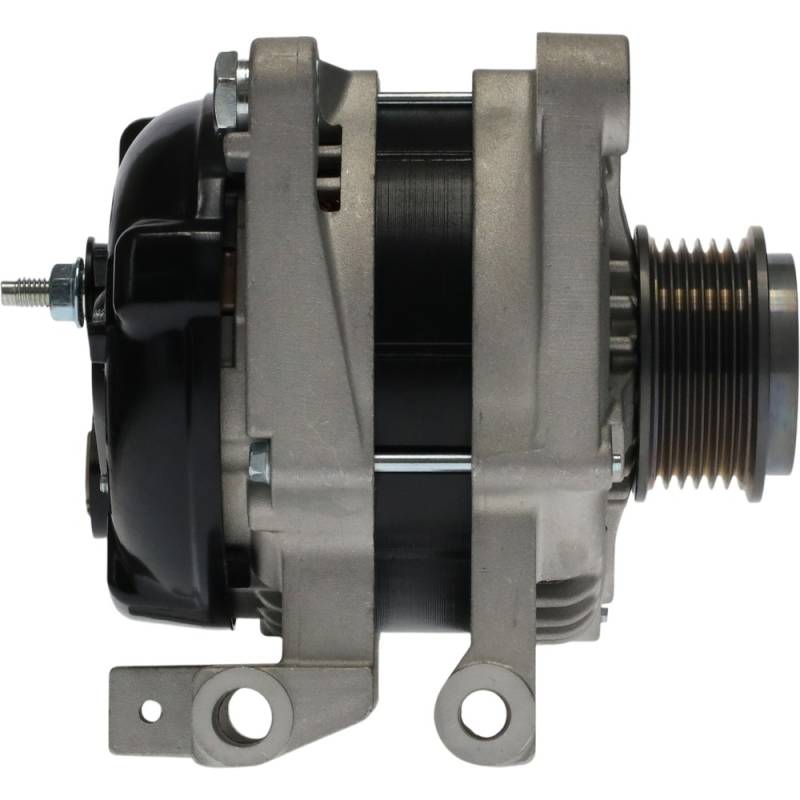

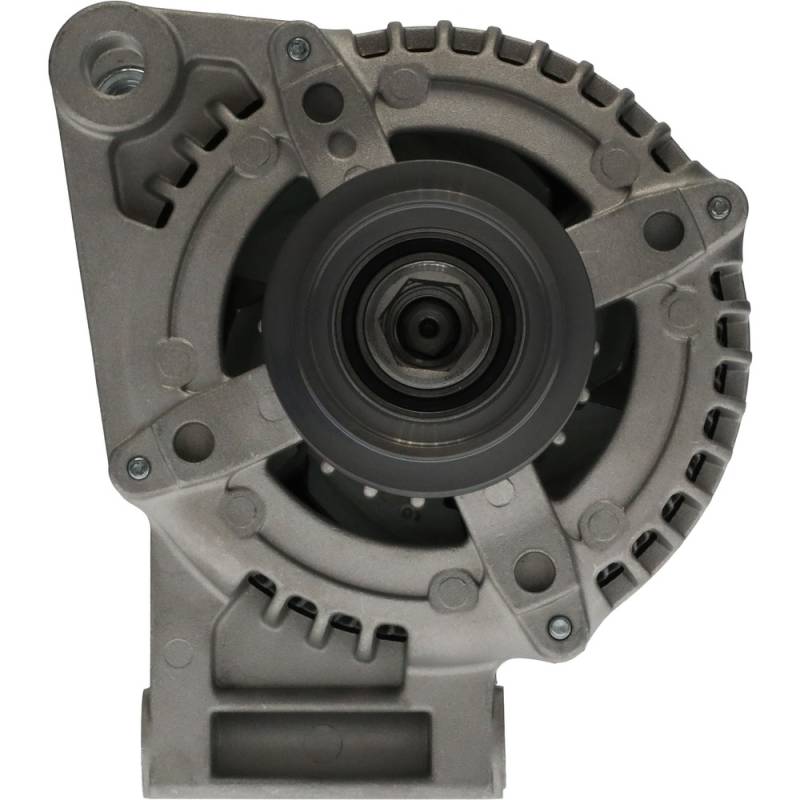

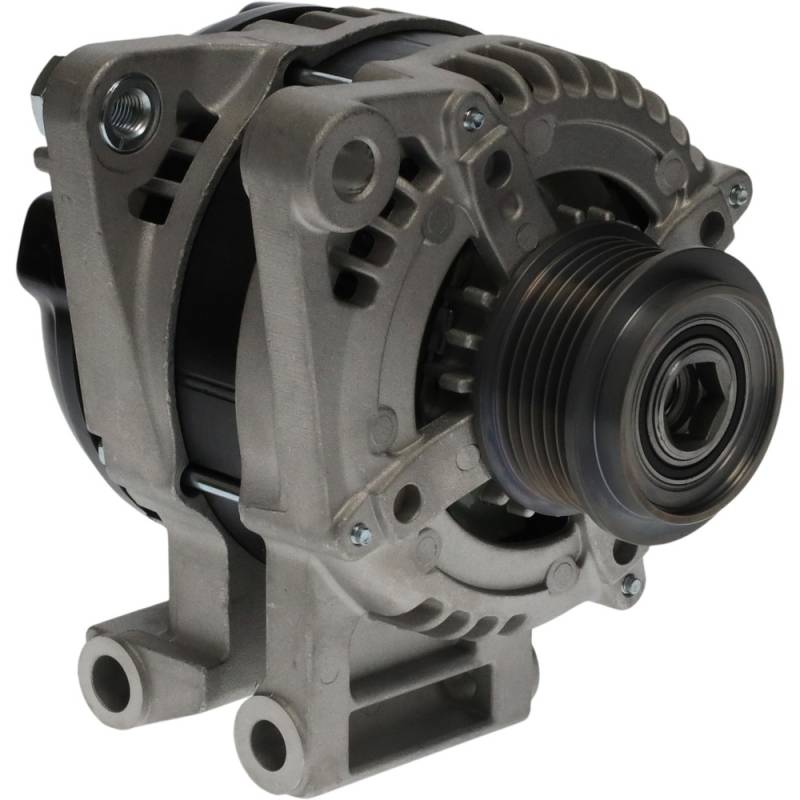

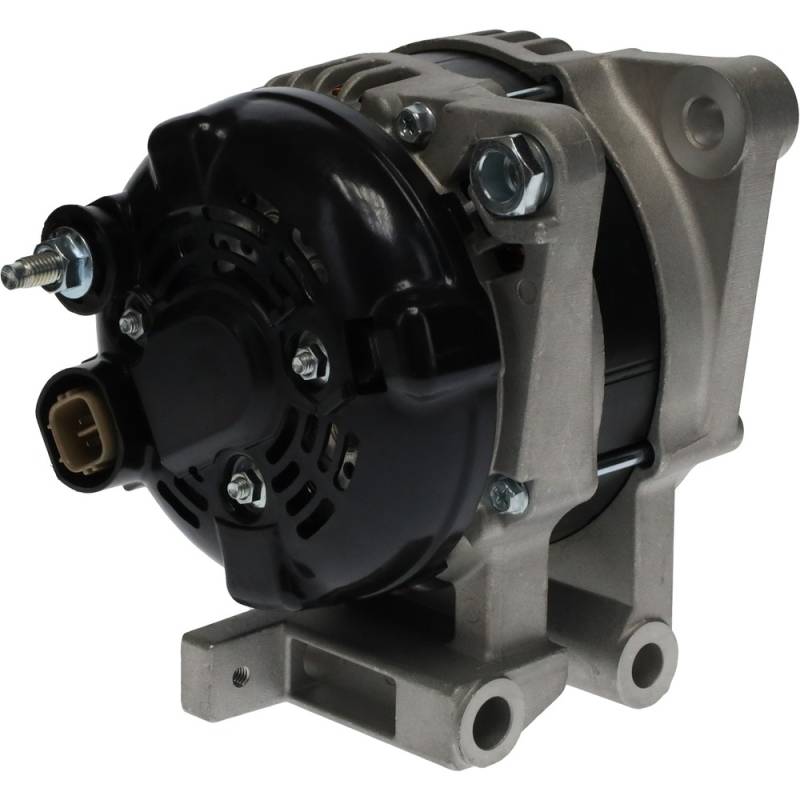

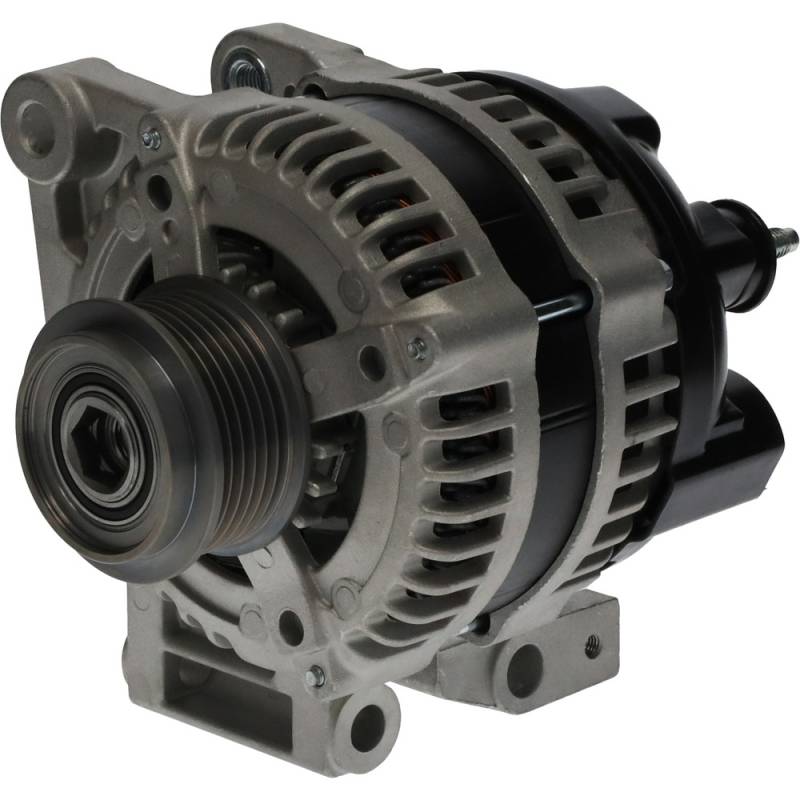

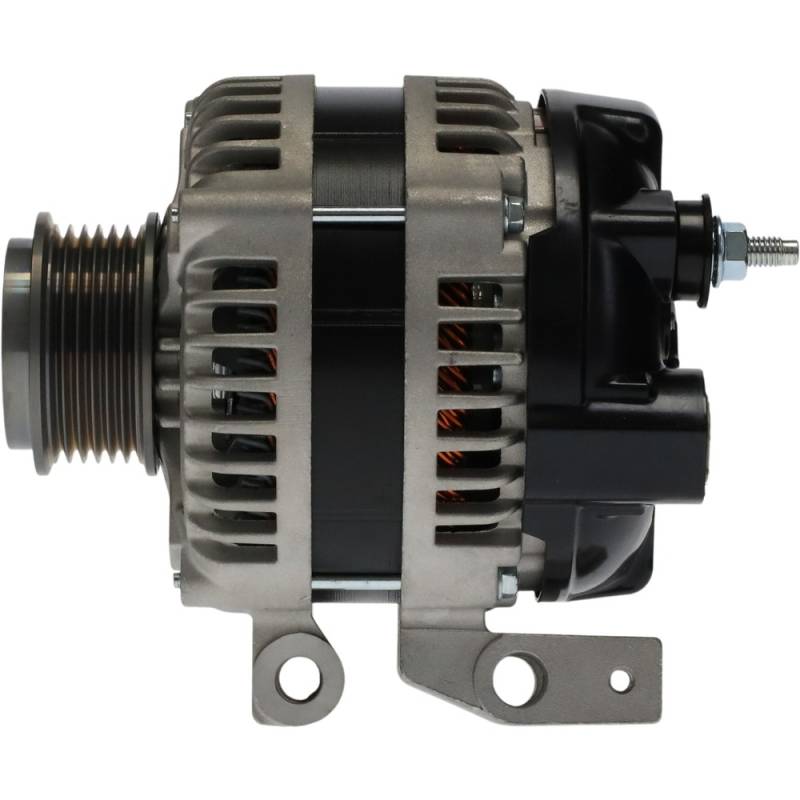

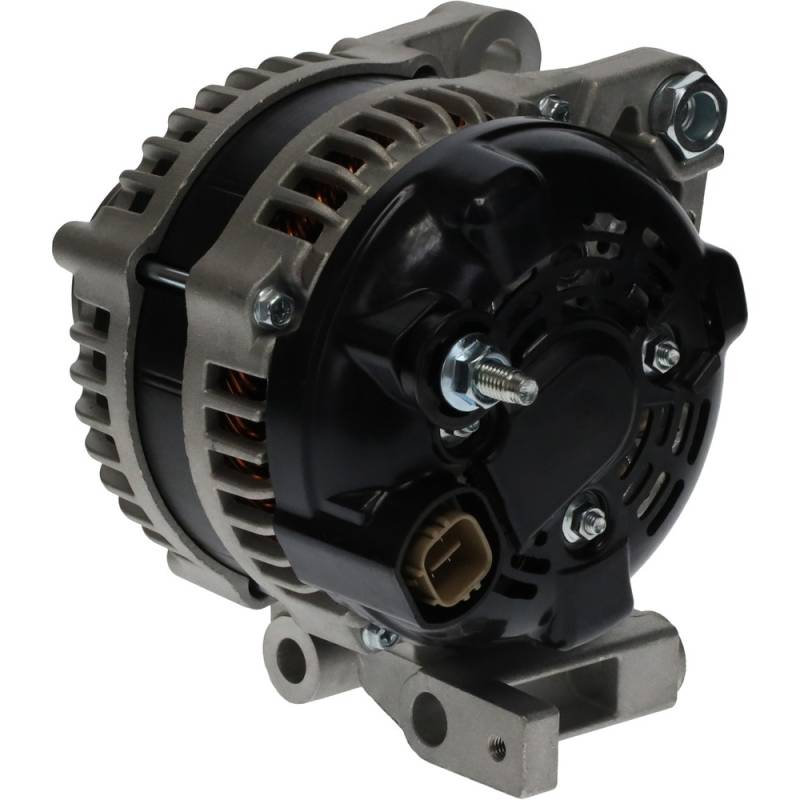

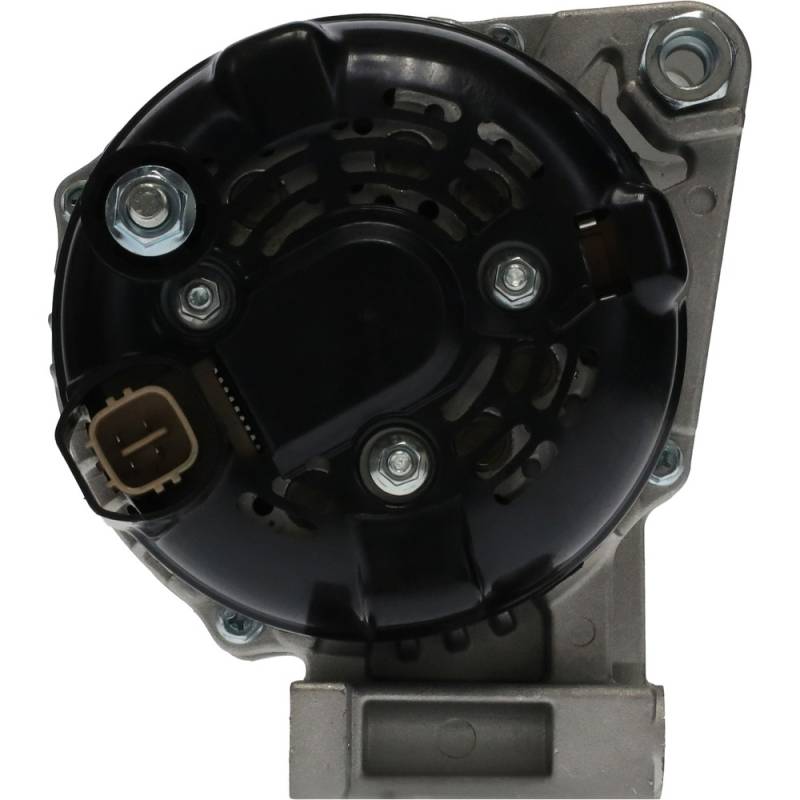

WHAT THIS UNIT IS: • Output: 12 Volt 130 Amp clockwise
• Pulley: 6-groove serpentine clutch pulley
• Case number: 31400-59L00 or 104210-1070
• Vehicle: Suzuki Kizashi 2010 through 2013
• Engine: 2.4L J24B 2393cc 146 CID
