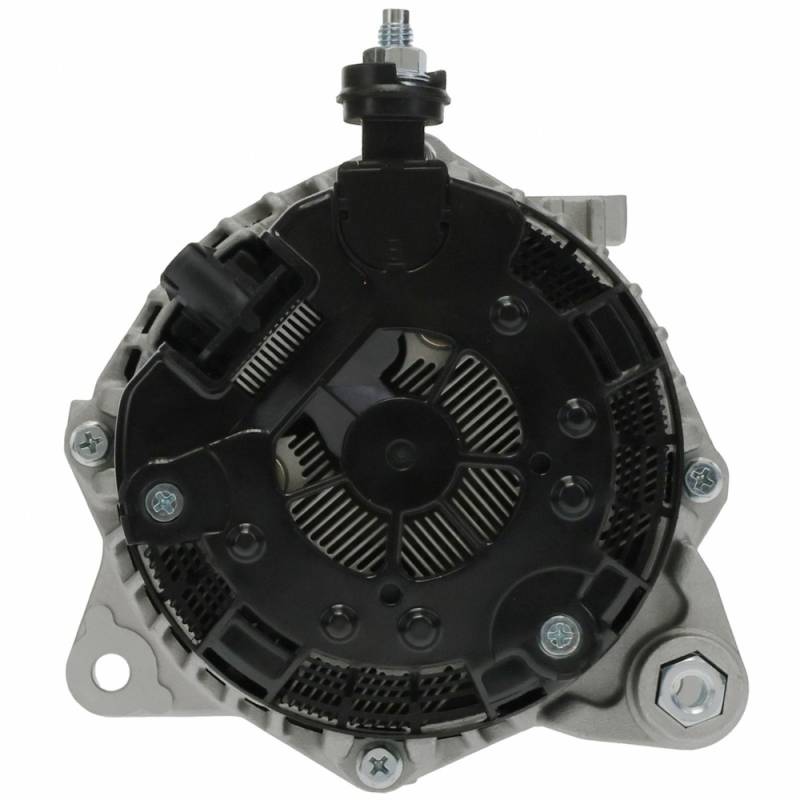

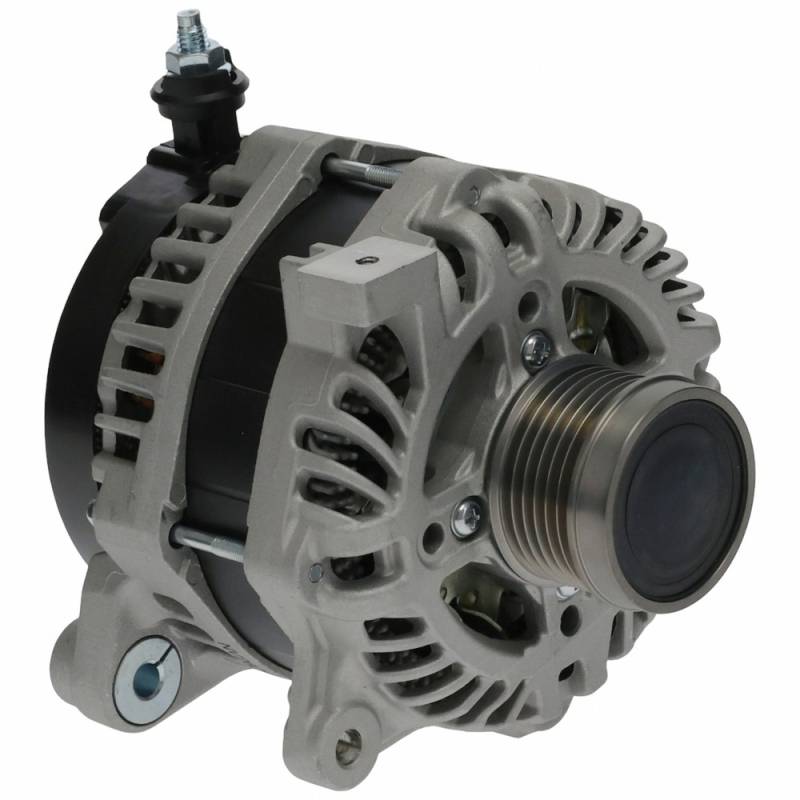

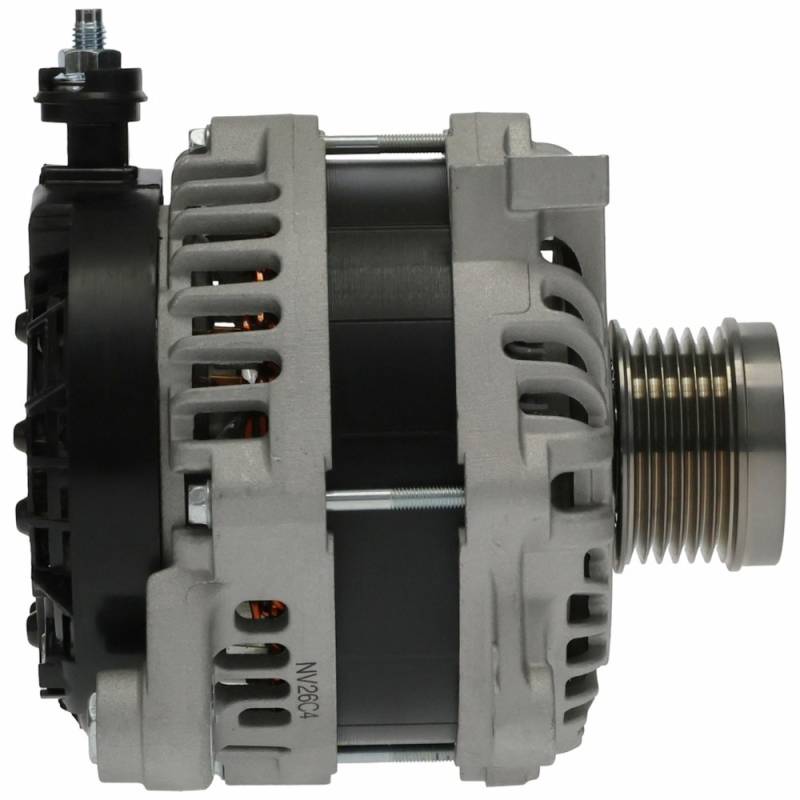

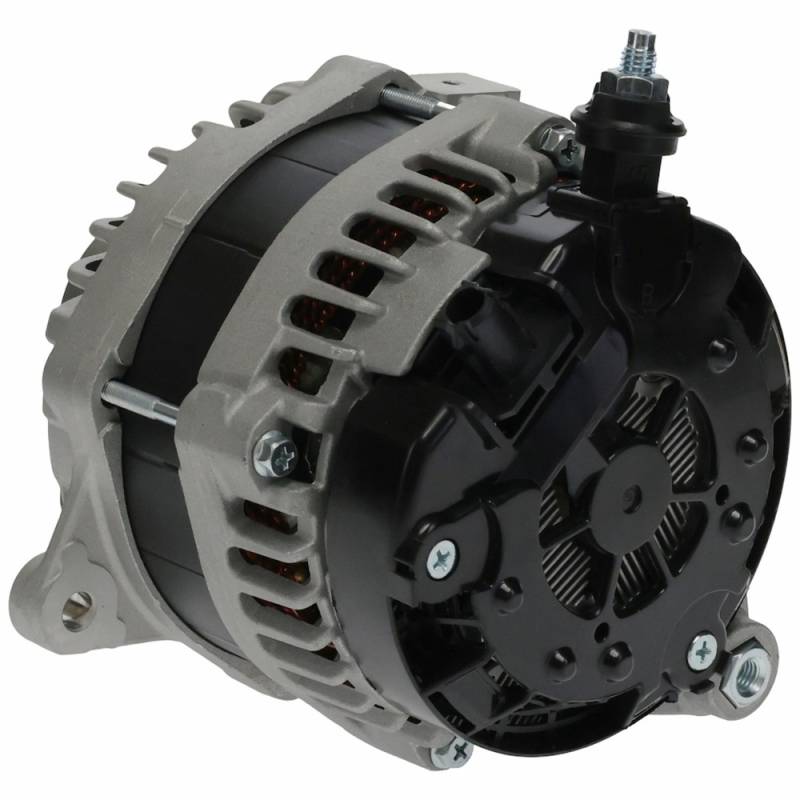

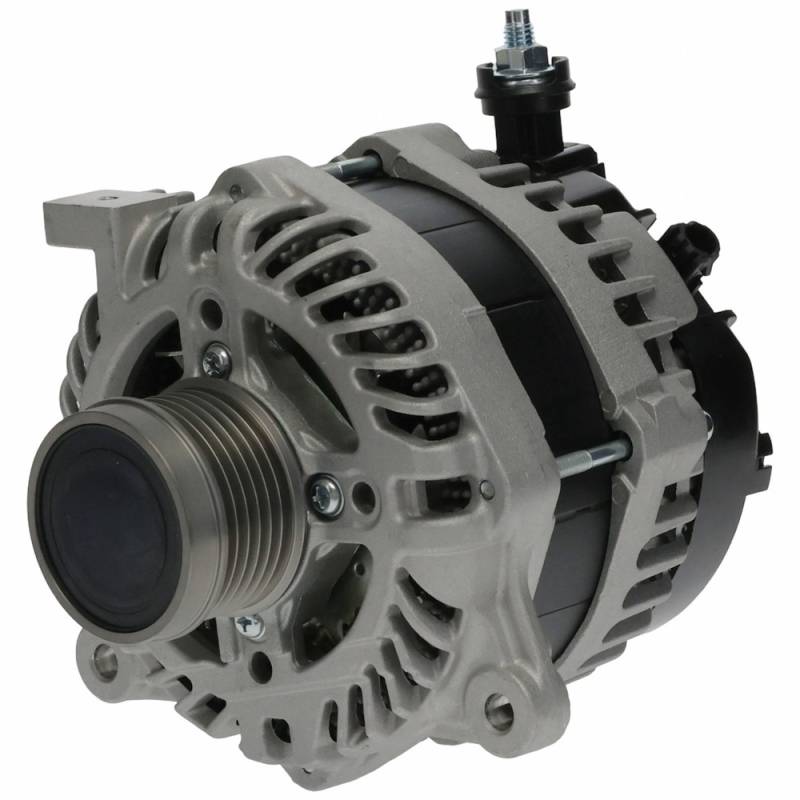

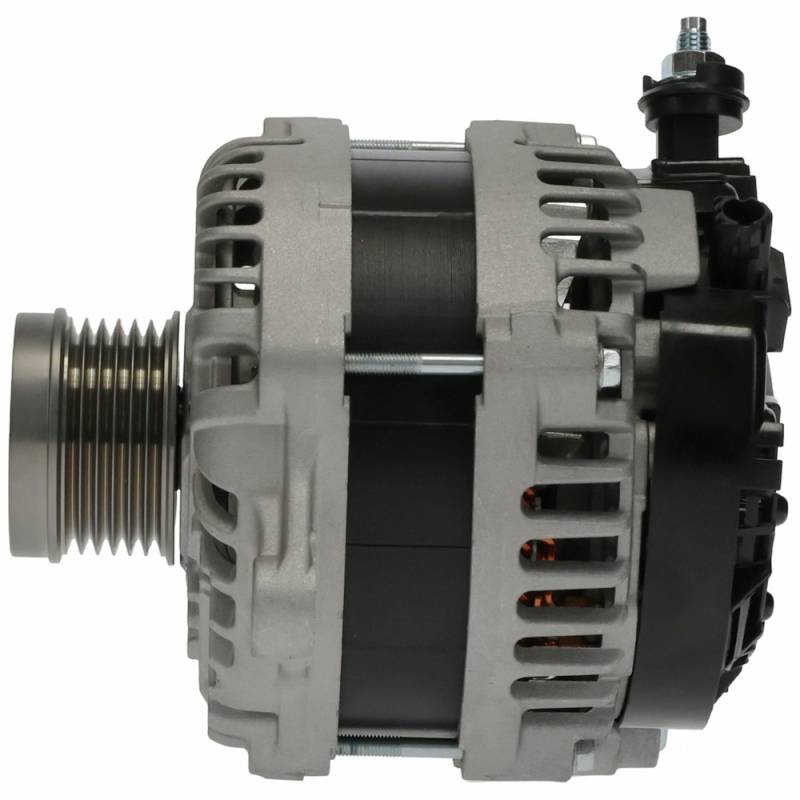

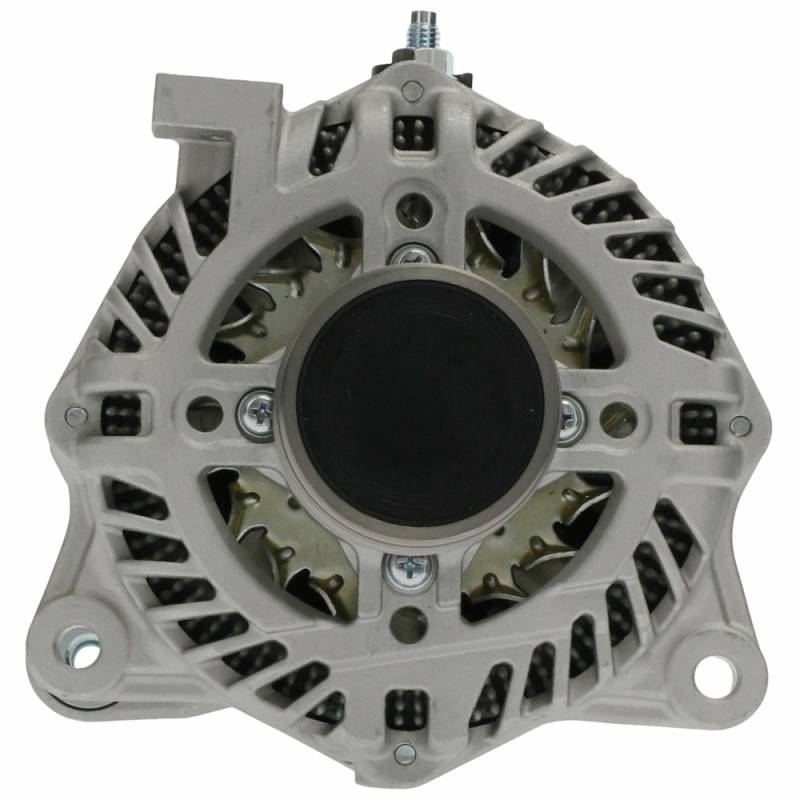

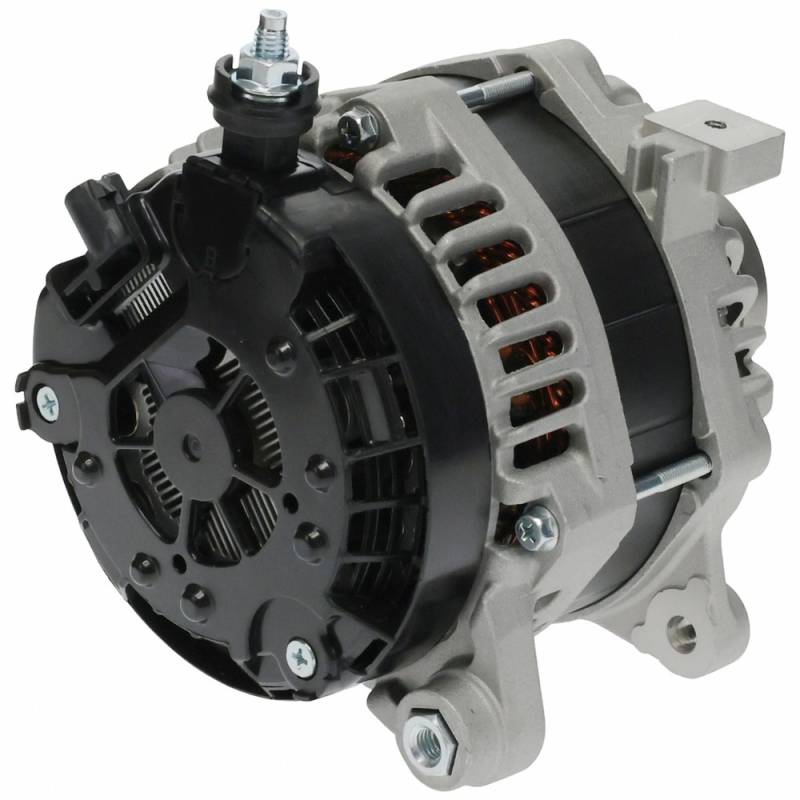

Alternator Compatible With 2019-25 Subaru Ascent 23700Ab16a

ALTERNATOR 12V 180 Amp CLOCKWISE — SUBARU 2.4L FA24 TURBO APPLICATIONS:

CHECK THE MODEL AND THE ENGINE:
• Subaru Ascent 2.4L Turbo — Fits
• Subaru Outback XT 2.4L Turbo — Fits
• Subaru Legacy XT 2.4L Turbo — Fits
• Subaru WRX 2.4L Turbo — Does Not Fit
• Subaru BRZ 2.4L Naturally Aspirated — Does Not Fit
• Subaru Forester 2.5L — Does Not Fit
• The displacement alone does not decide it

SUBARU ASCENT:
• Subaru Ascent (2019) — 2.4L FA24 Turbo 2387cc
• Subaru Ascent (2020-2021) — 2.4L FA24 Turbo 2387cc
• Subaru Ascent (2022-2023) — 2.4L FA24 Turbo 2387cc
• Subaru Ascent (2024-2025) — 2.4L FA24 Turbo 2387cc
• Ascent Base Premium Onyx Limited and Touring

SUBARU OUTBACK XT:
• Subaru Outback XT (2020-2021) — 2.4L FA24 Turbo DIT
• Subaru Outback XT (2022-2023) — 2.4L FA24 Turbo DIT
• Subaru Outback XT (2024-2025) — 2.4L FA24 Turbo DIT
• Outback Onyx XT Limited XT Touring XT and Wilderness

SUBARU LEGACY XT:
• Subaru Legacy XT (2020-2021) — 2.4L FA24 Turbo DIT
• Subaru Legacy XT (2022-2023) — 2.4L FA24 Turbo DIT
• Subaru Legacy XT (2024-2025) — 2.4L FA24 Turbo DIT
• Legacy Limited XT Sport and Touring XT

ENGINE:
• 2.4L FA24 Turbo Boxer Four
• Displacement 2387cc / 146cid
• Direct Injection Turbocharged
• 260 HP at 5600 RPM
• 277 lb-ft at 2000 RPM
• Badged XT on the Outback and Legacy

SUPERSESSION:
• Subaru 23700-AB04A was the 2019 launch number
• Subaru 23700-AB16A replaced it
• 23700-AB16A covers the full 2019 through 2025 run
• There is no year gap between the two numbers
• Both describe the same 180 amp unit

PULLEY NOTE:
• Six groove serpentine
• Freewheel clutch type not a solid pulley
• Pulley outer diameter 52.5mm
• A solid pulley unit will not behave the same on this engine

MITSUBISHI NUMBER NOTE:
• A002TV0281 is the full Mitsubishi Electric number
• A2TV0281 is the same number written short
• A002TV1881 is the later Mitsubishi build
• All spellings resolve to one unit

CROSS REFERENCE:
• Subaru: 23700-AB16A / 23700AB16A
• Subaru: 23700-AB04A / 23700AB04A
• Mitsubishi: A002TV0281 / A2TV0281
• Mitsubishi: A002TV0281ZC / A2TV0281ZC
• Mitsubishi: A002TV1881 / A2TV1881
• A2TV0281 is the short written form of A002TV0281

DOES NOT FIT:
• Subaru WRX (2022-2025) — 2.4L turbo takes another alternator
• Subaru WRX (2019-2021) — 2.0L turbo takes another alternator
• Subaru BRZ (2022-2025) — 2.4L naturally aspirated
• Subaru BRZ (2019-2020) — 2.0L naturally aspirated
• Subaru Forester (2019-2025) — 2.5L naturally aspirated
• Subaru Outback and Legacy (2020-2025) — 2.5L naturally aspirated
• Subaru Outback and Legacy (2018-2019) — 3.6L six cylinder
• Subaru Solterra — battery electric with no alternator
