OEM PART NUMBERS: • VAG Current New: 06E903024L / 06E-903-024-L
• VAG Current Reman: 06E903024LX / 06E-903-024-LX
• VAG Early Build to 08/2016: 06E903024 • 06E903024X
• VAG SQ5 and SQ5 Sportback: 06M903027 • 06M903027B
• Valeo Sales: 2715186B • 2620775A • 2623662
• Valeo Boxed: 443008 new • 440808 reman
• Valeo Type: EG15T027 • EG15T013
• Lucas: LRA04250 / LRA4250
• Delco Remy: DRA2173 • DRA2012 • 932173
• Elstock and DRI: 28-7859 • 2115581502
• AS-PL and Kuhner: A3972S • 556067RIV
• PSH and Casco: 305.334.150.500 • CAL15A21GS
SPECIFICATIONS: • 12 Volt / 150 Amp / Clockwise (CW) Rotation
• Design: IR/IF — Internal Regulator and Internal Fan

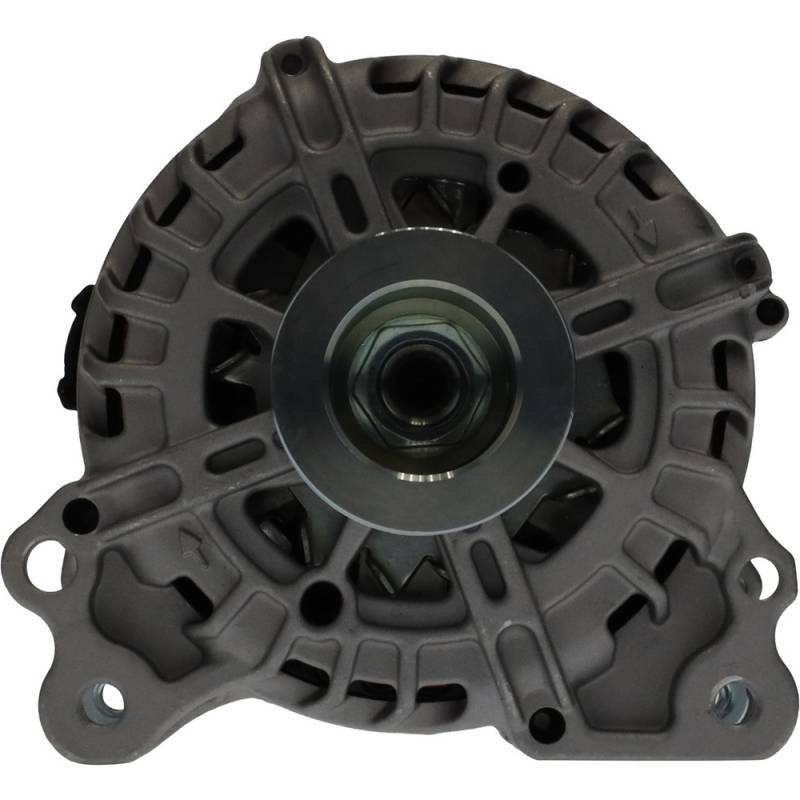

• Pulley: 6-Groove Serpentine Solid / 56mm OD
• Regulator: LIN COM Protocol • COM ID 105
• Regulator Plug: 0238 / P0214 at the 3:00 position
• B Plus Terminal: M8 x 1.25
• Mounting Holes: 4 at 8.5mm Bore
• Polarity: Negative Ground • Weight: 6.5 kg
• Condition: New Aftermarket
VEHICLE APPLICATIONS: • Audi S4 3.0L V6 CWGD 2995cc (2018-2024)
• Audi S5 Coupe and Cabriolet 3.0L V6 (2018-2024)
• Audi S5 Sportback 3.0L V6 CWGD (2018-2025)
• Audi RS5 Coupe 2.9L V6 DECA (2018-2019 and 2021-2024)
• Audi RS5 Sportback 2.9L V6 DECA (2019 and 2021-2025)
• Audi SQ5 and SQ5 Sportback 3.0L under 06M903027B
PART NUMBER CHAIN: • 06E903024 — new build up to 15.08.2016
• 06E903024X — exchange build up to 15.08.2016
• 06E903024L — new build from 15.08.2016
• 06E903024LX — exchange build from 15.08.2016
• 06M903027B — the SQ5 and SQ5 Sportback number
• All of these are the 150 Amp Valeo unit
ENGINE GATE — READ THIS FIRST: • Output required: 150 Amp Valeo
• Read the amperage and the maker off your own alternator
• Look for EG15T027 stamped on the Valeo unit
• Build break: 06E903024L applies from 15.08.2016 onward
• Earlier European build cars take 06E903024 or 06E903024X
• SQ5 owners order against 06M903027B

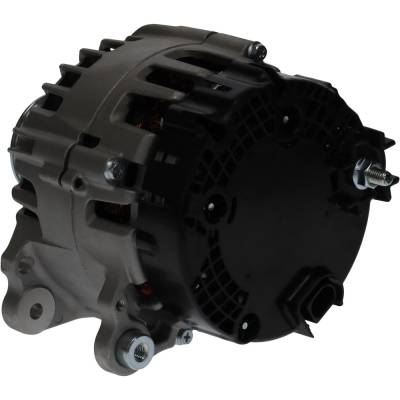

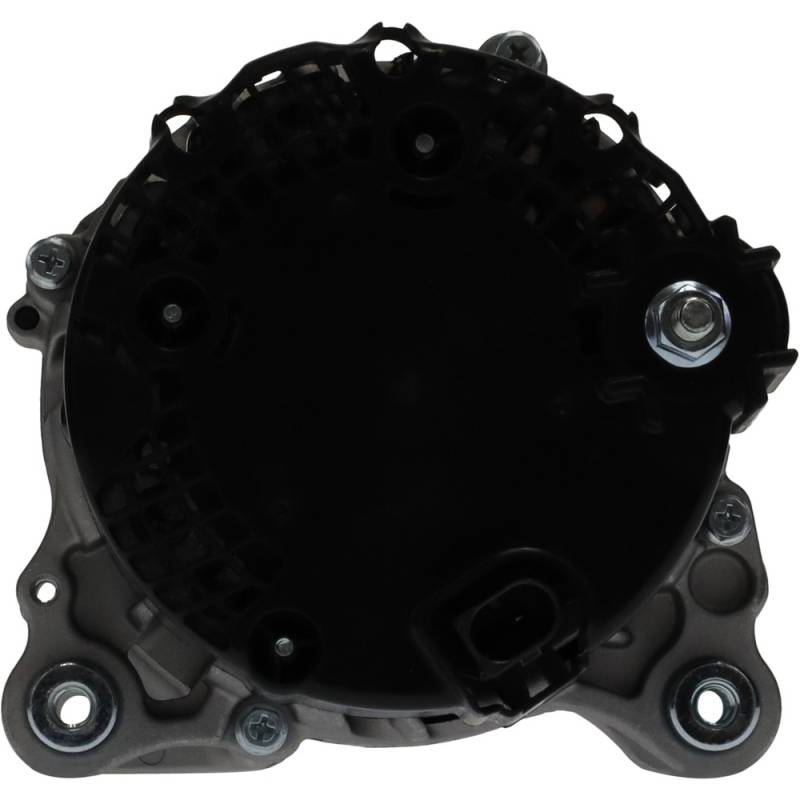

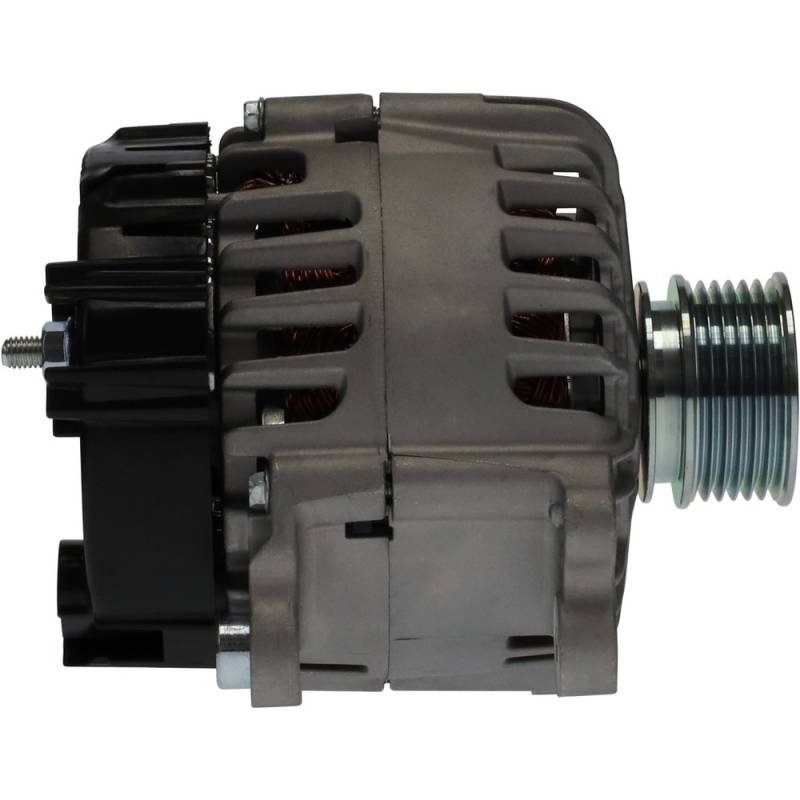

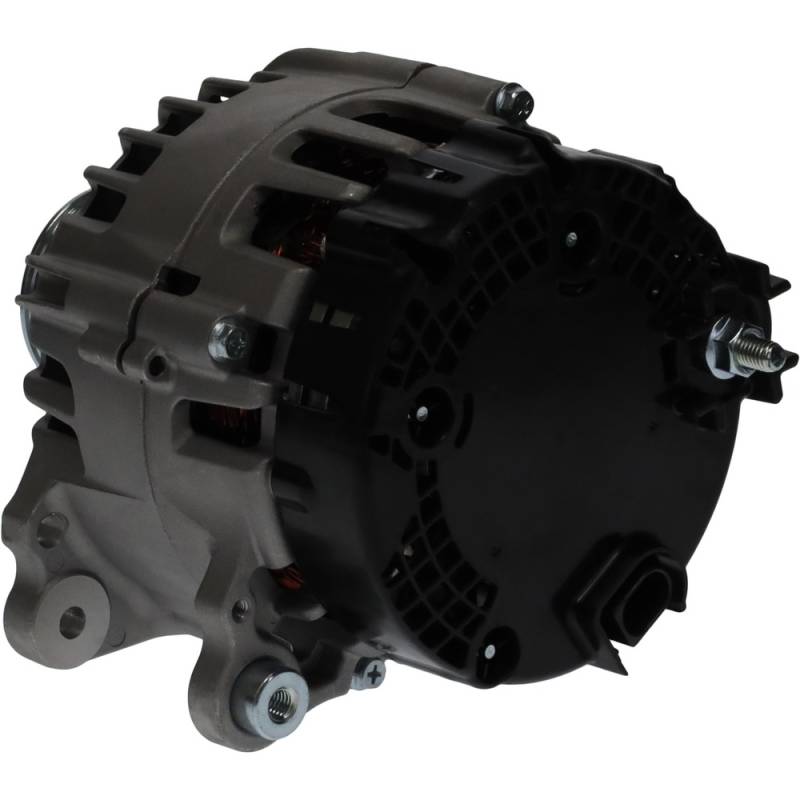

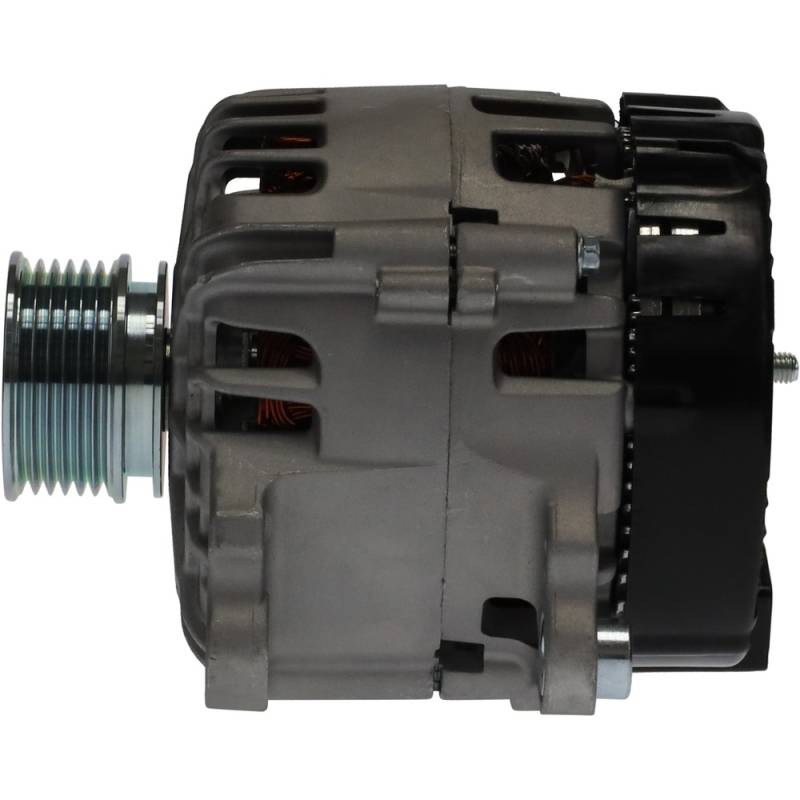

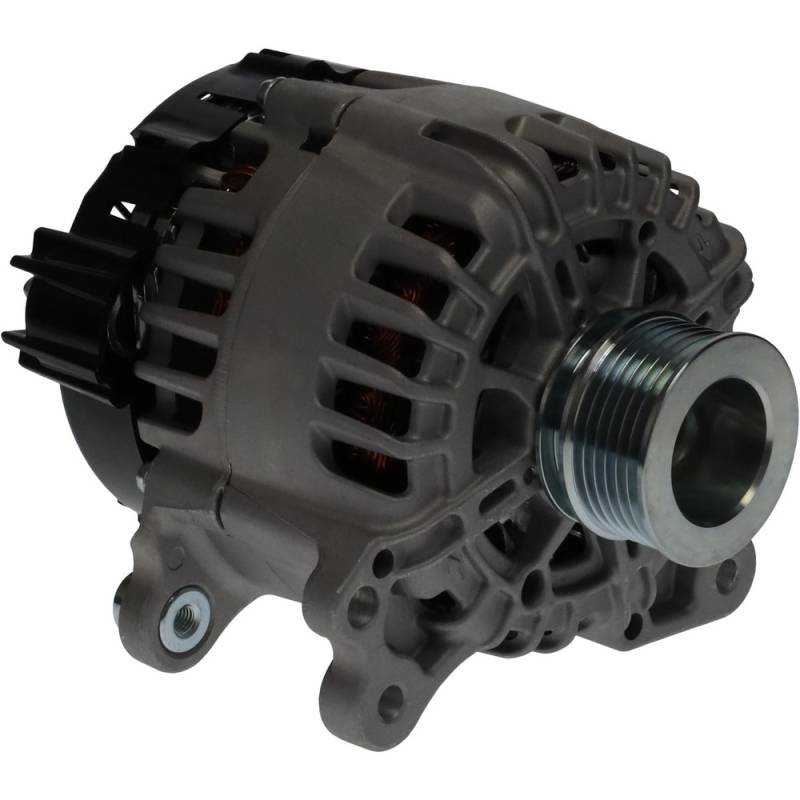

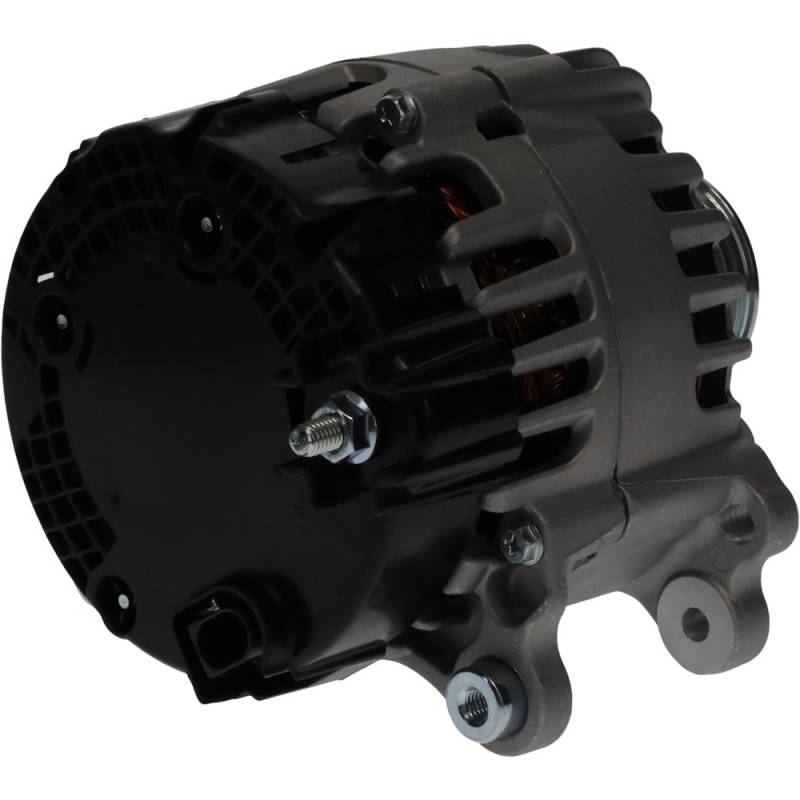

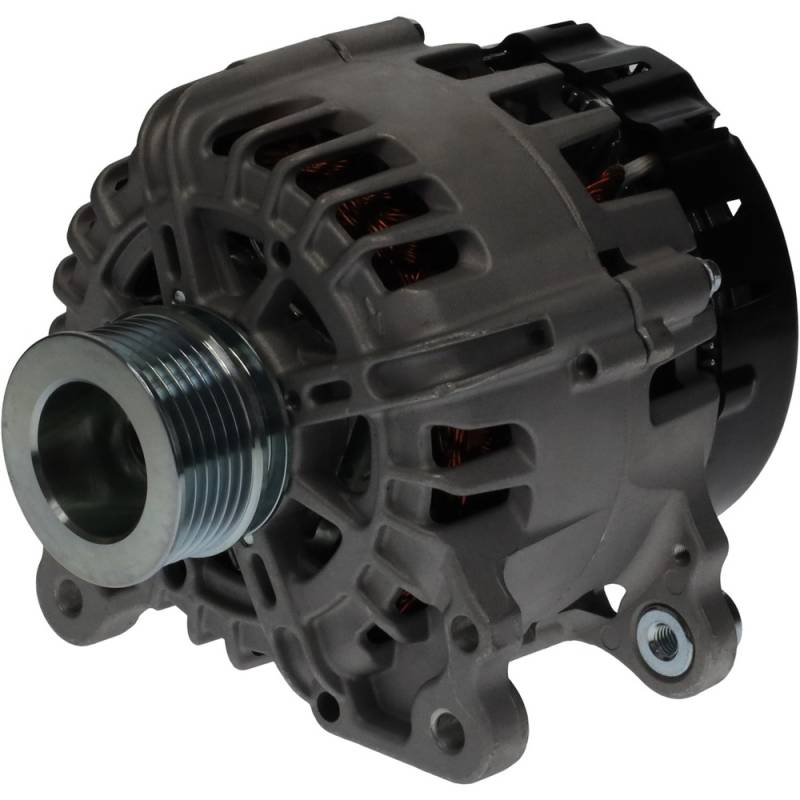

WHAT THIS UNIT IS: • Output: 12 Volt 150 Amp clockwise
• Pulley: 6 groove serpentine solid at 56mm
• Regulator: internal LIN COM at the 3:00 position
• Fan: internal • Mounting: 4 holes at 8.5mm
• Engines: Audi EA839 2.9L and 3.0L V6
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
