OEM PART NUMBERS: • Honda Supersession: 36120-ZY9-003 → 36120-ZY9-013 → 36120-ZY9-023
• Honda Current: 36120-ZY9-023
• Arco: 6236
• API Marine: PT314NM
• Recmar: REC36120-ZY9-003
• Suzuki DF70 DF80 DF90: 38100-87L00 • 38100-87L12 • 38100-90J00
• Suzuki DF70 DF80 DF90: 38100-90J01 • 38100-90J20 • 38100-90J30
• Suzuki DF70 DF80 DF90: 38100-92J01 • 38100-92J02 • 38100-92J10
• Suzuki DF70 DF80 DF90: 38100-99E01-EP
SPECIFICATIONS: • 12 Volt / Reversible Bi-Rotational
• Type: Power Tilt and Trim Motor
• Shaft: Blade Type
• Mount: 4 Bolt Flange
• Bolt Centres: 66mm • Mounting Ring: 71mm OD
• Motor Case Outside Diameter: 79mm
• Overall Length: 113mm / 4.449 in
• Connection: 2 Wire with Round Plug-In Connector
• Wire Colours: Blue Up • Green Down
• O-Ring: Included
• Condition: New Aftermarket
VEHICLE APPLICATIONS: • Honda BF75DK0 DK2 DK3 and DK4 75HP (2007-2025)
• Honda BF90DK0 DK2 DK4 and DK5 90HP (2007-2025)
• Honda BF100A and BF100AK1 100HP (2016-2025)
• Shaft codes LHTA LRTA XRTA and JRTA as applicable
• Suzuki DF70 DF80 and DF90 four stroke outboards
PART NUMBER CHAIN: • 36120-ZY9-003 — the original Honda number
• 36120-ZY9-013 — the first supersession
• 36120-ZY9-023 — the current Honda number
• 6236 — the Arco number for this motor
• PT314NM — the API Marine number
• All three Honda numbers describe one motor
ENGINE GATE — READ THIS FIRST: • Engine generation required: the 1496cc four from 2007
• Honda numbers on this motor: 36120-ZY9-003 013 or 023
• Read the Honda number off your own motor before ordering
• Connection: 2 wire ending in a round plug-in connector
• Confirm a 4 bolt flange at 66mm bolt centres
• Confirm a blade type shaft

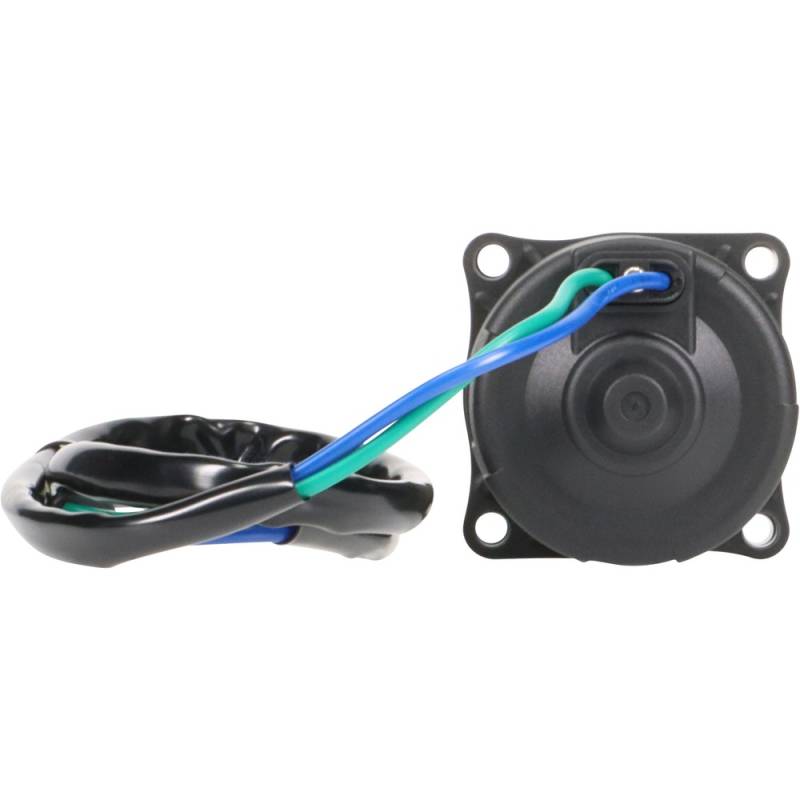

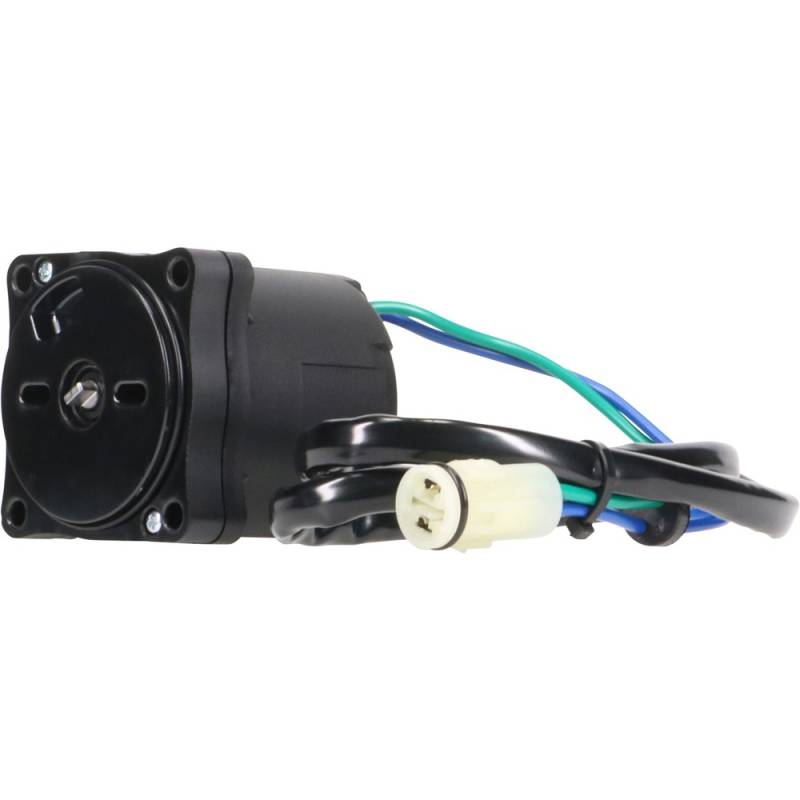

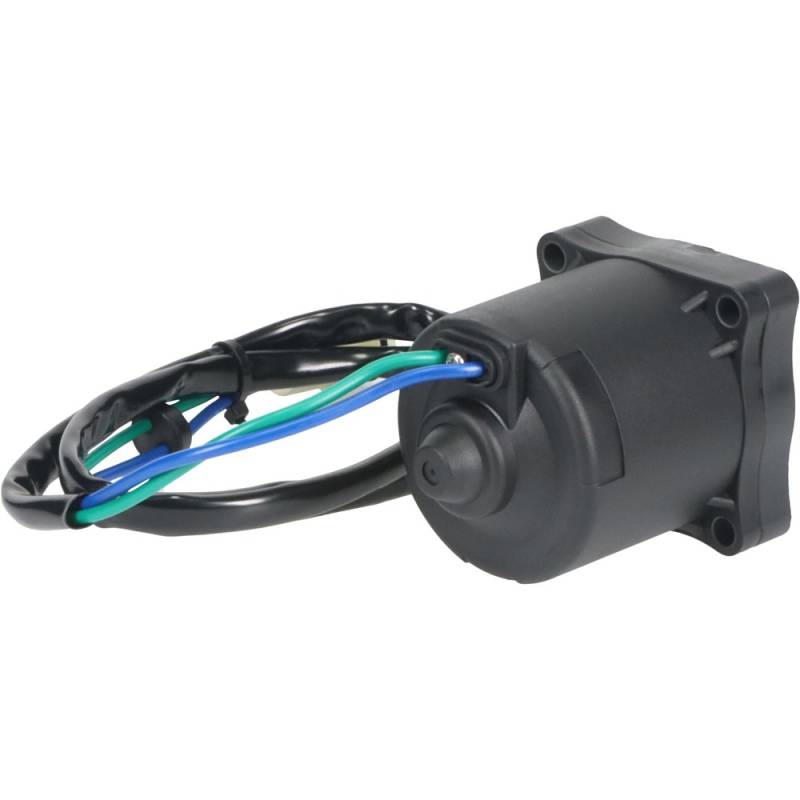

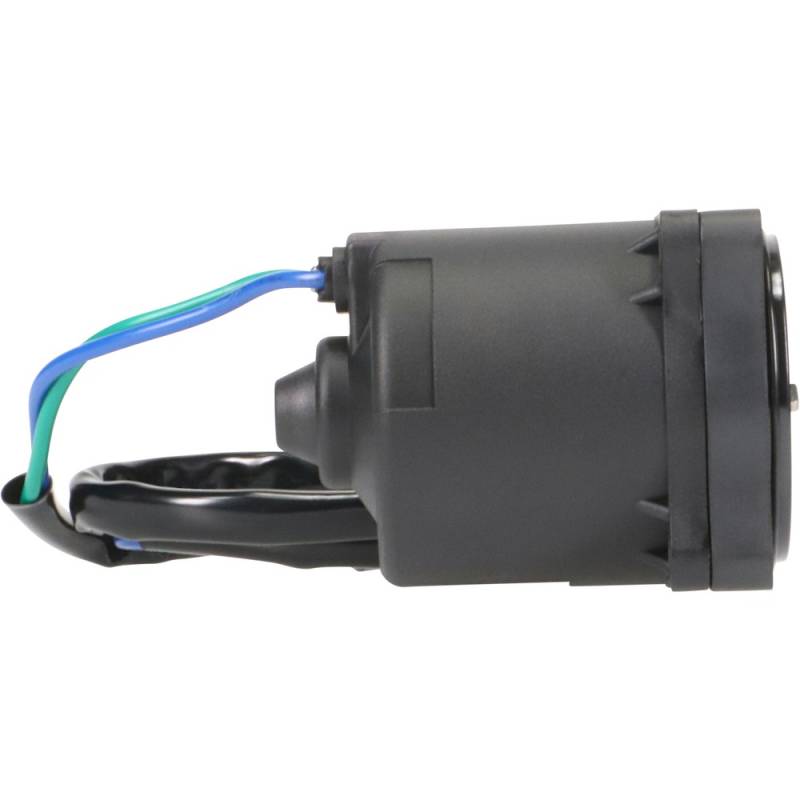

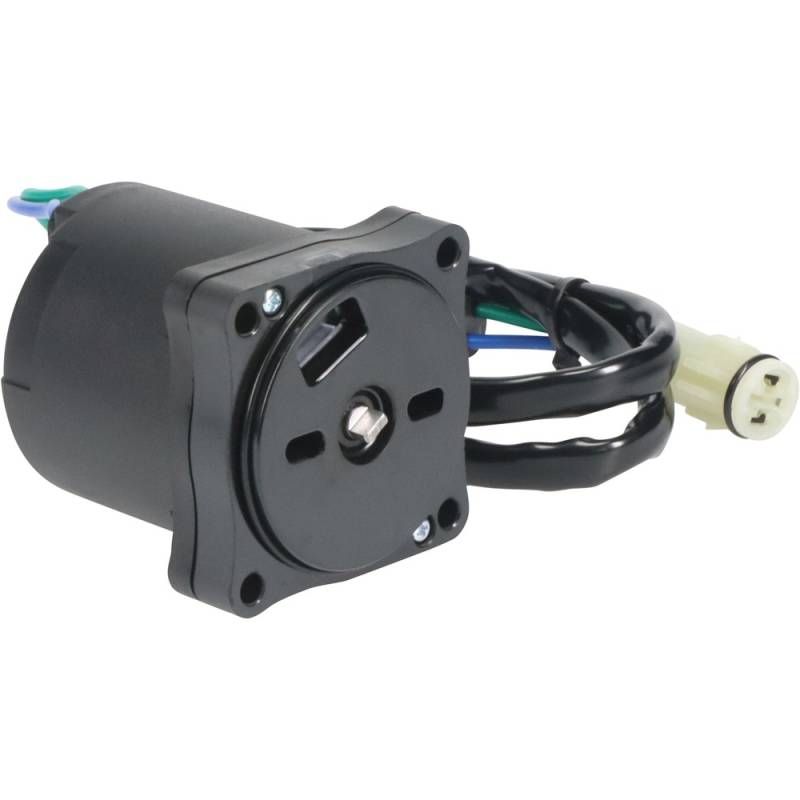

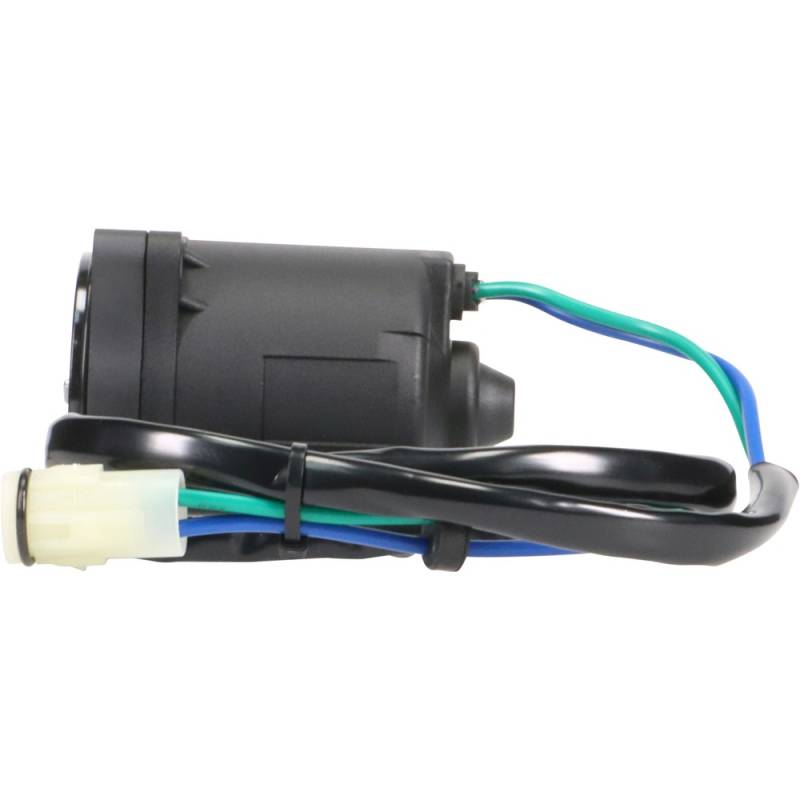

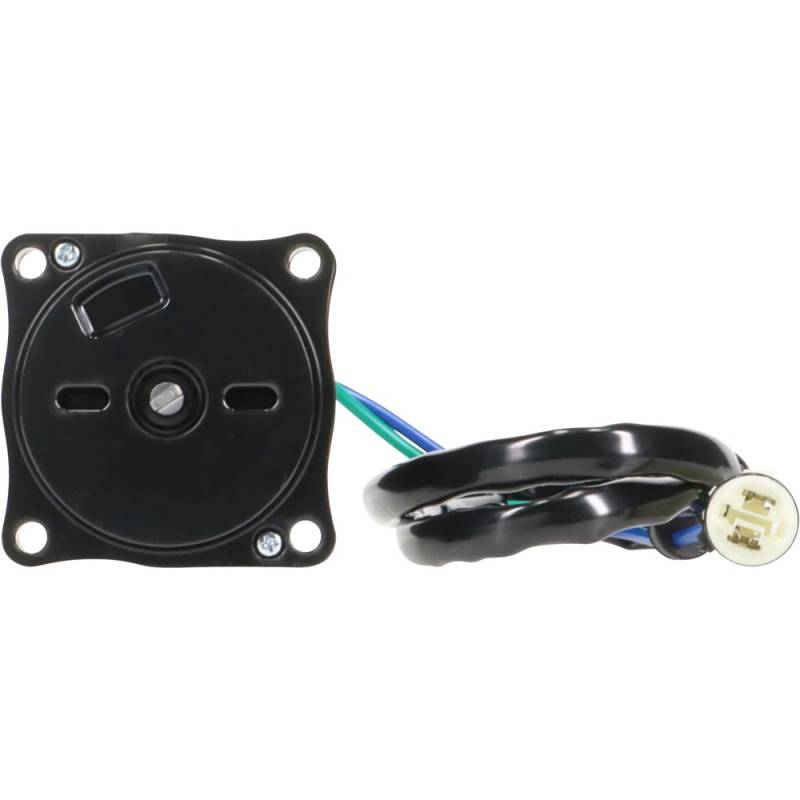

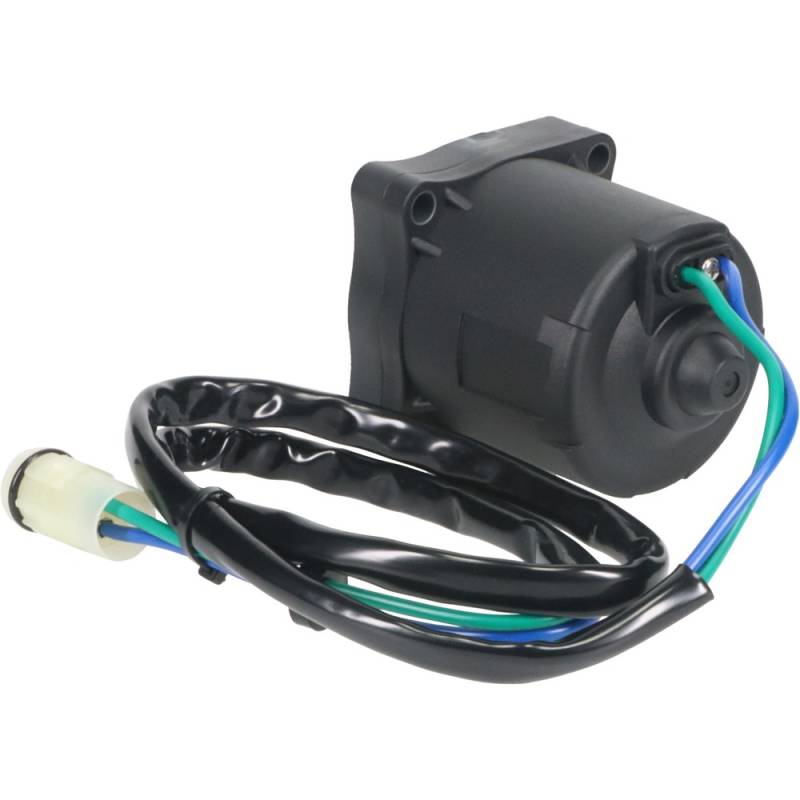

WHAT THIS UNIT IS: • Type: 12 Volt reversible power tilt and trim motor
• Shaft: blade type on a 4 bolt flange
• Mount: 66mm bolt centres on a 71mm ring
• Wiring: 2 wire round plug-in with blue up and green down
• Engines: Honda BF75D BF90D and BF100A four strokes
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
