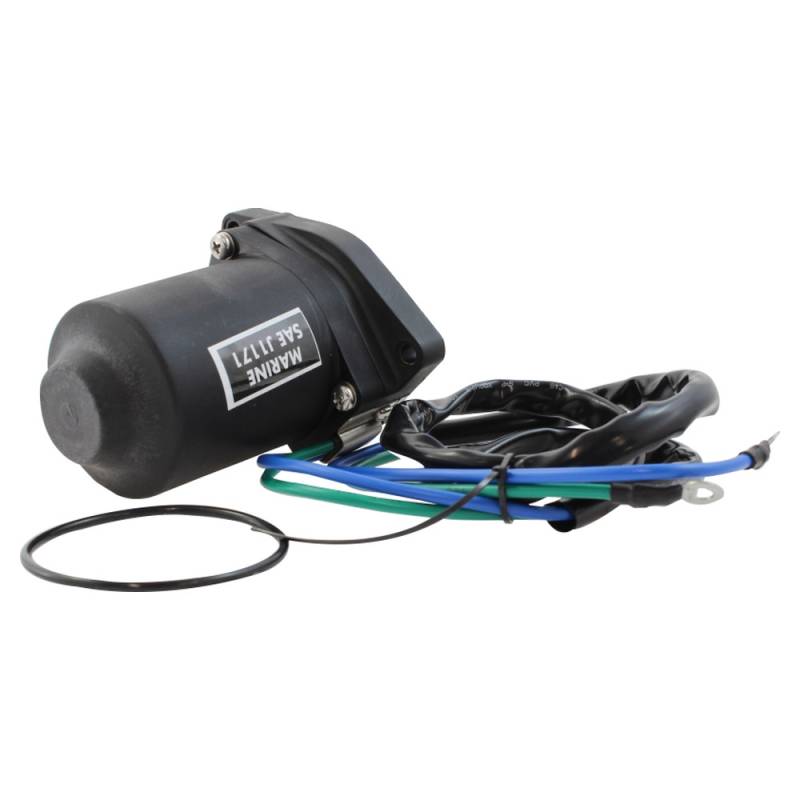

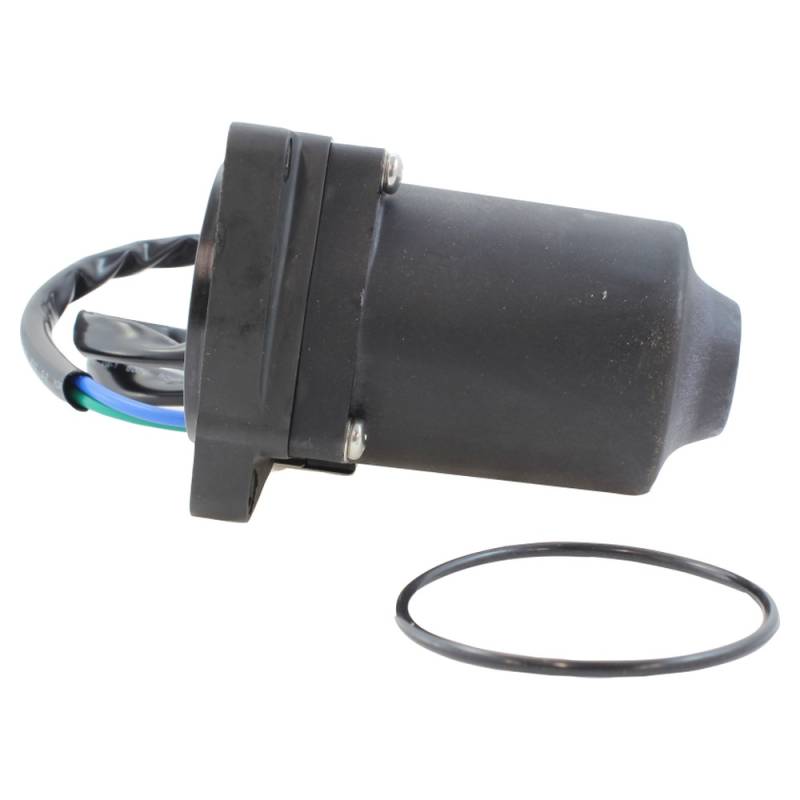

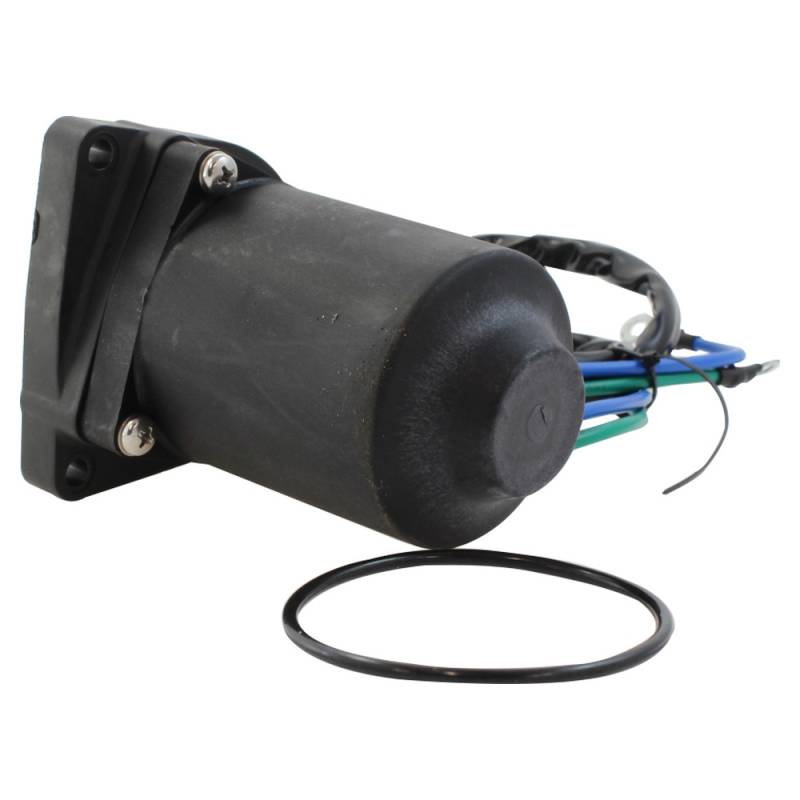

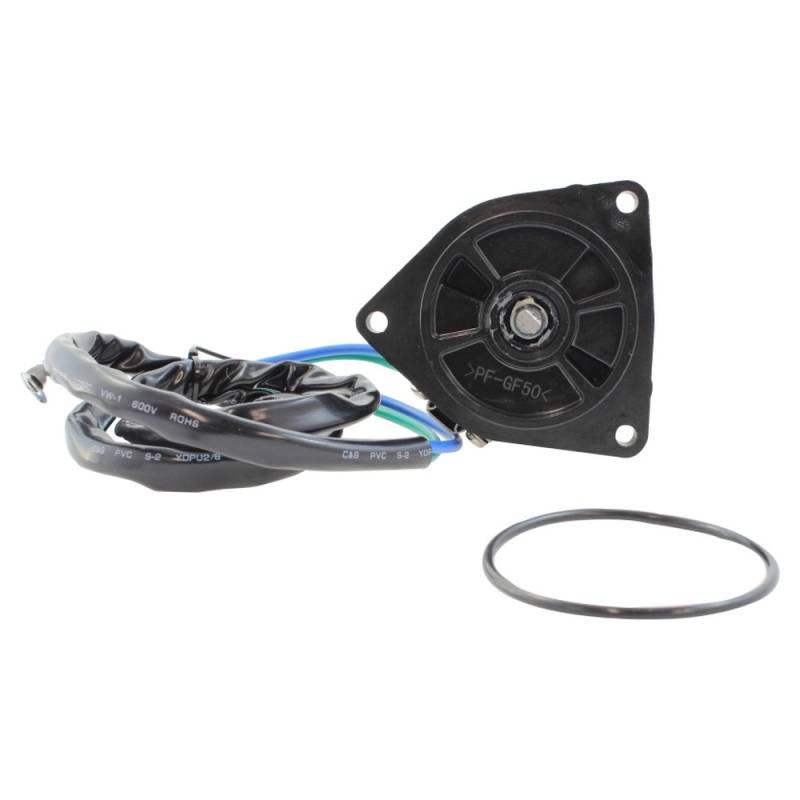

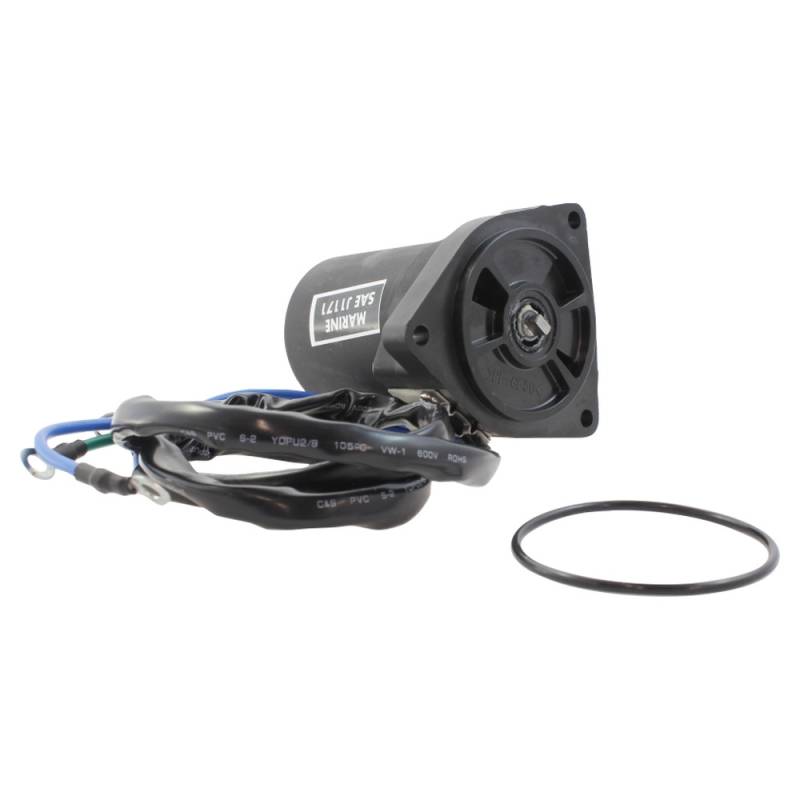

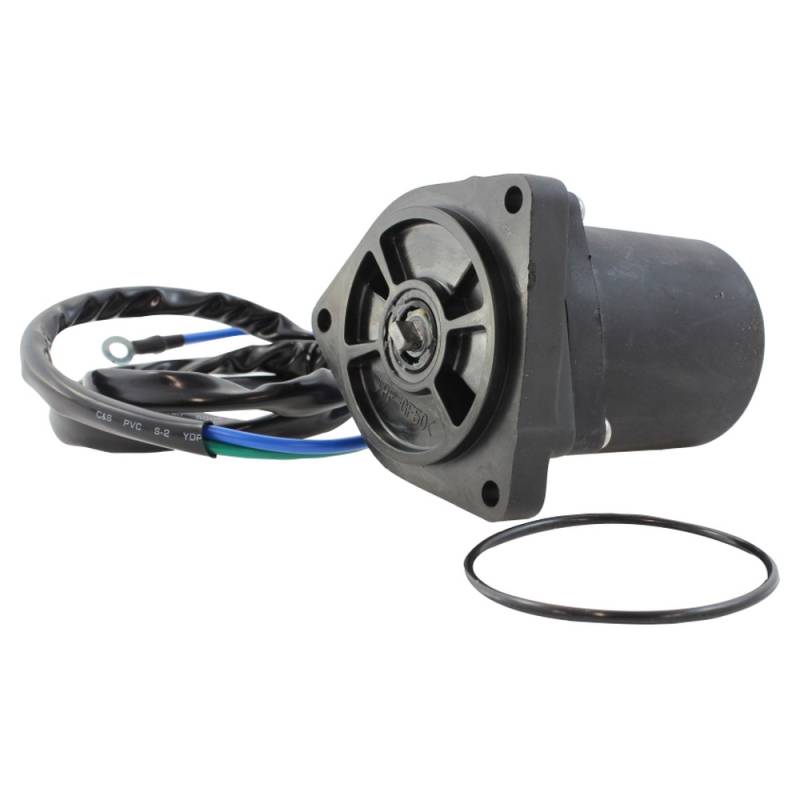

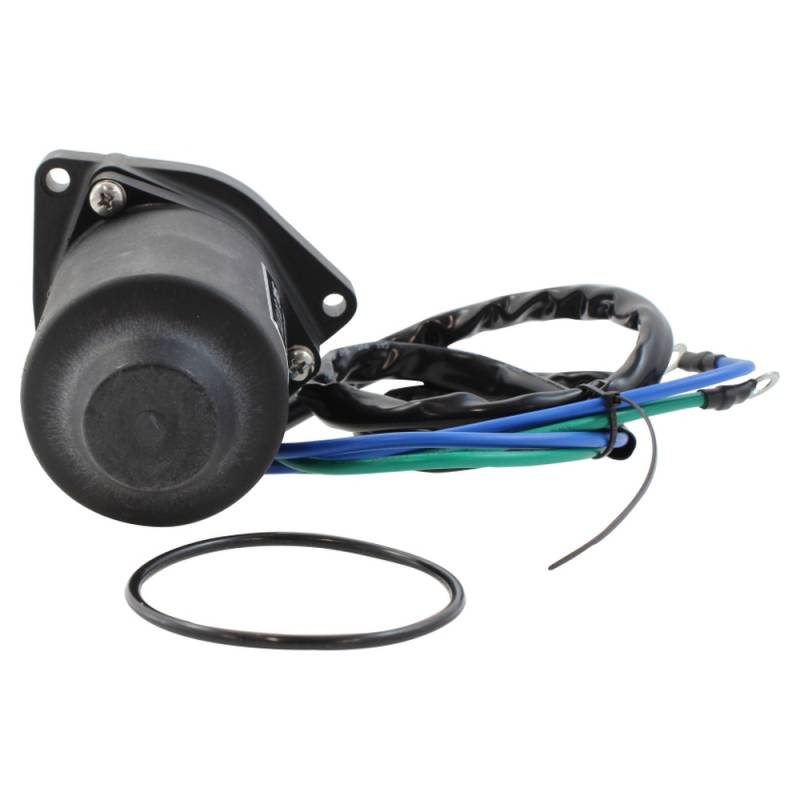

Trim Motor Compatible With Yamaha F175 And F200 Arco 6293

OEM CROSS-REFERENCE PART NUMBERS:

Yamaha:
63P-43880-10-00, 63P-43880-11-00, 63P-43880-21-00, 63P-43880-22-00,
6KW-43880-00-00, 6KW-43880-01-00

ARCO:
6293

SPECIFICATIONS:
• Type: Power Tilt and Trim Motor
• Voltage: 12 Volts
• Current Type: DC
• Rotation: Reversible
• Body Outside Diameter: 65.5 mm / 2.579 in
• Registration Diameter: 68.3 mm
• Overall Length: 124.5 mm / 4.902 in
• Shaft Outside Diameter: 7.9 mm / 0.311 in
• Shaft Drive Tang: 3.9 mm x 6.1 mm
• Leads: 2 Wire
• Blue Lead: 64 in — Trim Up
• Green Lead: 58.5 in — Trim Down
• Terminals: 6.3 mm ID Ring x 2
• Condition: New

PART NUMBER BY MODEL YEAR:
• 2012-2015 — 63P-43880-10-00 and 63P-43880-11-00
• 2016-2019 — 63P-43880-21-00
• 2020-2021 — 63P-43880-22-00
• 2022 and later — 6KW-43880-00-00 and 6KW-43880-01-00
• All five supersede into one another and into ARCO 6293

APPLICATIONS — YAMAHA F150 FOUR STROKE:
• F150TLR / F150TXR / LF150TXR (2012)
• F150JA / F150LA / F150XA / LF150XA (2013-2015)
• F150JB / F150LB / F150XB / LF150XB (2016-2021)
• F150JB / F150LB2 / F150XB / LF150XB (2022 and later)

APPLICATIONS — YAMAHA F175 AND F200 FOUR STROKE:
• F175XA / F175LA / LF175XA Inline Four Cylinder
• F200XA / F200XB / F200LB / LF200XB Inline Four Cylinder

DOES NOT FIT:
• 2011 and earlier F150 — F150TJR / F150TLR / F150TXR / LF150TXR of those years take 67H-43880-03-00
• Yamaha F115 — takes 68V-43880-04-00
• Yamaha V6 F225 and F250 — take 61A-43880
• Yamaha VF150 V MAX SHO — different powerhead family
• V6 F200 — only the inline four cylinder F200 uses this motor
• Yamaha 6EK-43880 series — ARCO catalogs that one separately
• Suzuki 38100 and Honda 36120 trim motors
