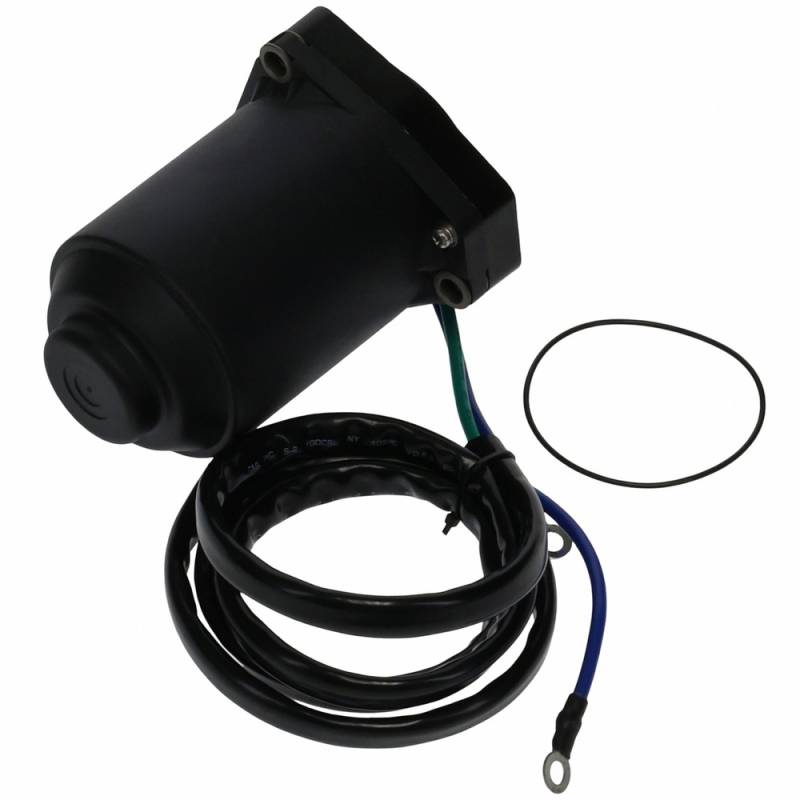

Trim Motor Compatible With 2018-26 Yamaha Fl425 6Gr-43880

POWER TRIM AND TILT MOTOR — YAMAHA XTO OFFSHORE 5.6L V8 APPLICATIONS:

CHECK THE HORSEPOWER FIRST:
• Yamaha 375 HP XTO Offshore — Fits
• Yamaha 425 HP XTO Offshore — Fits
• Yamaha 450 HP XTO Offshore — Does Not Fit
• The 450 runs a different trim and tilt assembly
• Read the horsepower on the cowling

YAMAHA F425 AND FL425:
• Yamaha F425 (2018-2021) — XTO Offshore 5.6L V8 425HP
• Yamaha F425 (2022-2026) — XTO Offshore 5.6L V8 425HP
• Yamaha FL425 (2018-2021) — Counter Rotation 425HP
• Yamaha FL425 (2022-2026) — Counter Rotation 425HP

YAMAHA XF425 CATALOGUE CODES:
• Yamaha XF425NSA (2018-2021) — Dark Bluish Gray 1
• Yamaha XF425NSA2 (2018-2021) — White Pearl A
• Yamaha XF425NSA7 (2018-2021) — No Paint
• Yamaha XF425NSB (2022-2026) — B Generation
• Yamaha LXF425 (2018-2026) — Counter Rotation

YAMAHA F375 AND FL375:
• Yamaha F375 (2019-2021) — XTO Offshore 5.6L V8 375HP
• Yamaha FL375 (2019-2021) — Counter Rotation 375HP
• Yamaha XF375NSA (2019-2021) — Export Model
• The F375 is an export model and was not sold in the United States

ROTATION COVERAGE:
• Yamaha F425 and F375 — Standard Rotation
• Yamaha FL425 and FL375 — Counter Rotation
• Both rotations take the same motor

SHAFT LENGTH COVERAGE:
• Yamaha XF425X 25 Inch Shaft (2018-2026)
• Yamaha XF425U 30 Inch Shaft (2018-2026)
• Yamaha XF425E 35 Inch Shaft (2018-2026)
• Every shaft length takes the same motor

ENGINE:
• Yamaha XTO Offshore 5.6L V8
• Displacement 5559cc
• 60 Degree V8 Double Overhead Cam
• 32 Valves and Four Per Cylinder
• Direct Injection at 2900 PSI
• 375 HP at 5500 RPM
• 425 HP at 5500 RPM

TRIM AND TILT SYSTEM:
• One motor driving one gear pump
• One tilt ram and one trim ram
• Tilt range minus 4 to plus 73 degrees
• Trim range minus 4 to plus 16 degrees
• Plastic motor housing for corrosion resistance
• The relay is inside the electrical management unit

SUPERSESSION:
• Yamaha: 6GR-43880-00-00 superseded
• Yamaha: 6GR-43880-01-00 superseded
• Yamaha: 6GR-43880-02-00 current
• The housing changed to plastic across the revisions

CROSS REFERENCE:
• Yamaha: 6GR-43880-02-00 / 6GR438800200
• Yamaha: 6GR-43880-01-00 / 6GR438800100
• Yamaha: 6GR-43880-00-00 / 6GR438800000
• Arco: 6300

DOES NOT FIT:
• Yamaha F450 and FL450 — the 450 HP XTO takes another motor
• Yamaha XF450NSA — the 450 HP XTO takes another motor
• Yamaha F350 V8 — different trim and tilt series
• Yamaha F300 V6 — different trim and tilt series
• Yamaha F200 and F250 — different trim and tilt series
• Yamaha F150 and smaller — different trim and tilt series
