11" Clutch Kit Compatible With New Holland Tn80f Tn85fa Tn90f Tn95f Tn95fa T4050v T4060f Case Ih

OEM PART NUMBERS:
• NH/Case: 87590434, 87732506 (PP Assembly)
• NH/Case: 47134874, 47134874R, 47134882, 47135670
• NH/Case: 82824592, 84317689, 84342956
• NH/Case: 87289219, 87345759, 87541561, 87541562
• NH/Case: 87732485, 87732502, 87732503
• NH/Case: 5097877, 5097880, 5097881, 5097958
• NH/Case: 5103175, 5119164, 5119165, 5119875
• NH/Case: 5122028, 5136682, 5157318, 5176450
• NH/Case: 5196819, 5197980, 9973689, 9976506
• NH/Case: B513160, K51336186, K5197980, K87345759
• LuK: 228-0184-10, 328-0332-10, 410-0025-40
• LuK: 500-0459-00, 500-1292-40, 628308610

SPECIFICATIONS:
• Disc OD: 11" (280mm) | Disc Spline: 14 (Trans) / 10 (PTO)
• Type: Double | PP: 6 Bolt, 6 Lever, Cast Iron
• Trans Disc: Captive 14-Spline, 6-Pad Dampened Cerametallic
• PTO Disc: Loose 10-Spline, 4-Pad Rigid Cerametallic
• PTO Release: 115mm OD x 75mm ID x 20mm
• Trans Release: 90mm OD x 50mm ID x 21.6mm
• Pilot Bearing: 47mm OD x 17mm ID

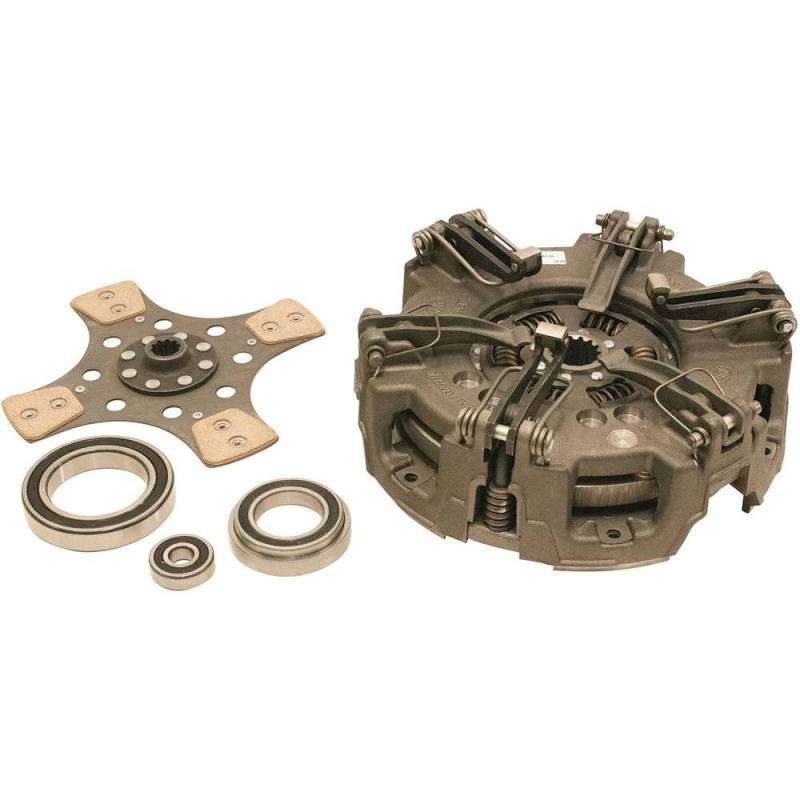

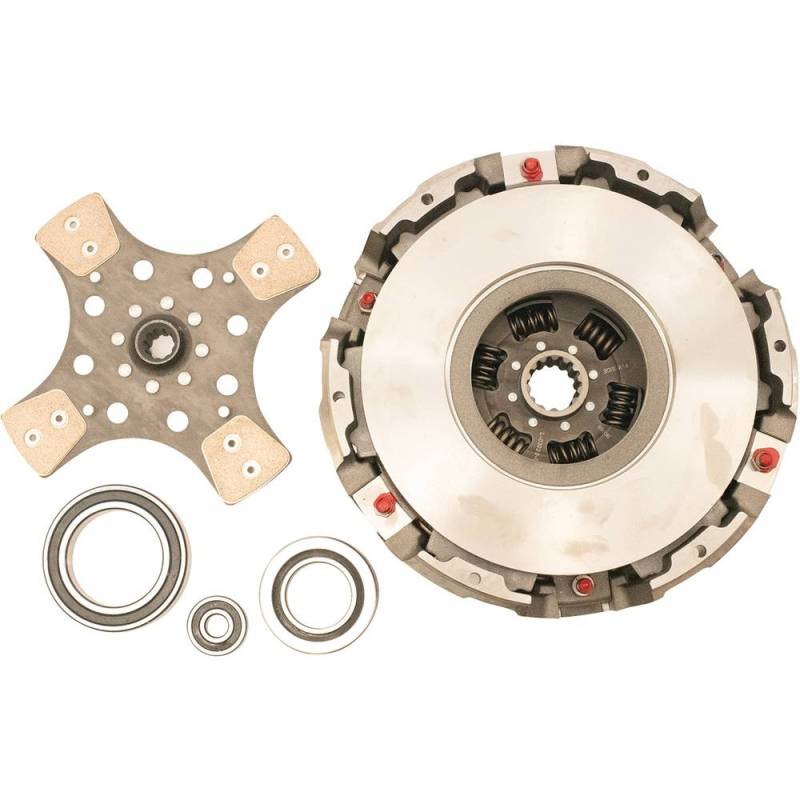

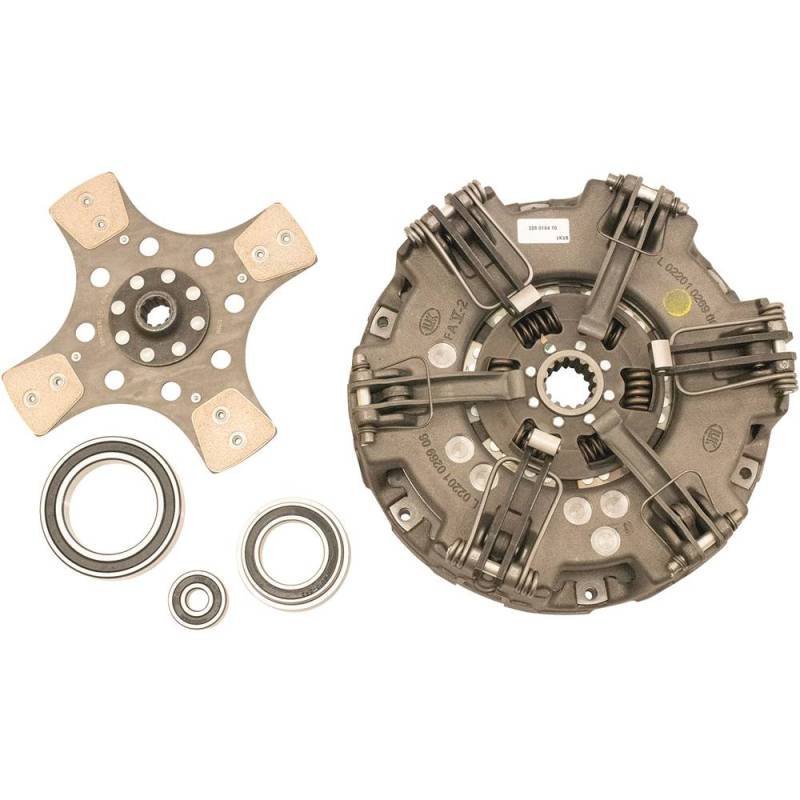

• Includes: PP, Trans Disc, PTO Disc, 2 Release Bearings, Pilot Bearing

NEW HOLLAND / CASE IH APPLICATIONS:
• TN-F: TN65F, TN70F, TN70NA, TN75F, TN75FA, TN80F, TN90F, TN95F, TN95FA
• TN85/95: TN85A, TN85DA, TN85FA, TN85SA, TN95A, TN95DA, TN95NA, TN95VA
• T4000: T4040, T4050F, T4050V, T4060F, T4060V
• Case IH: JX1070C, JX1075C, JX1075N, JX1075V, JX1085C, JX1095C, JX1095N

PRODUCT NOTICE:
