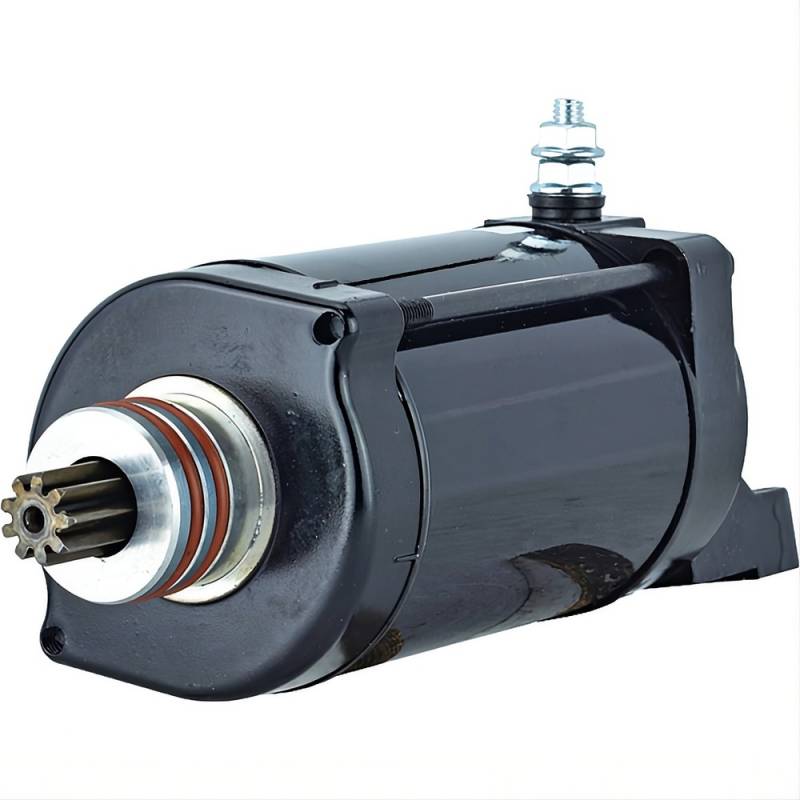

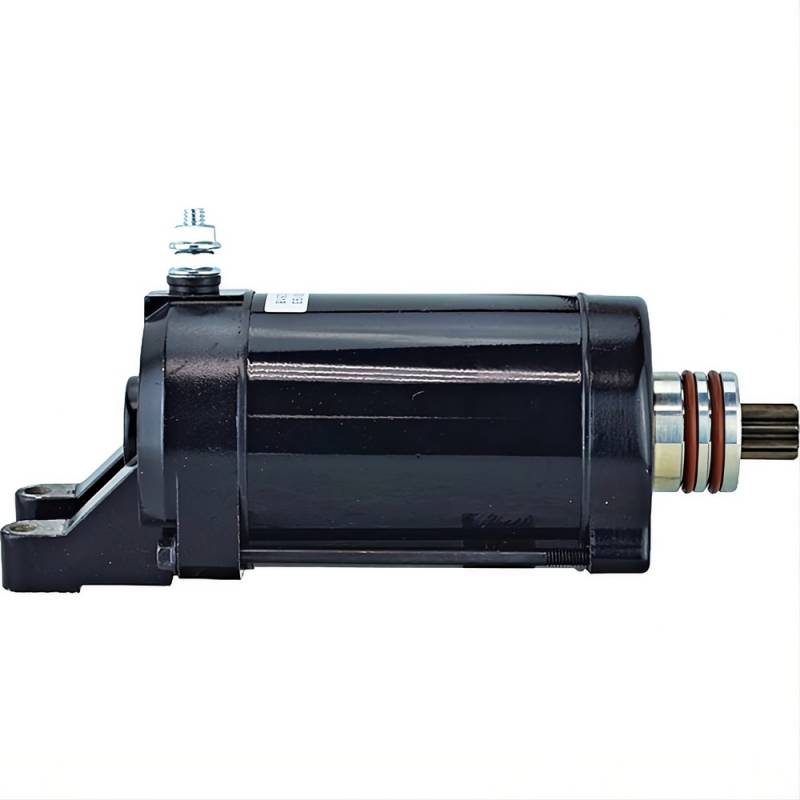

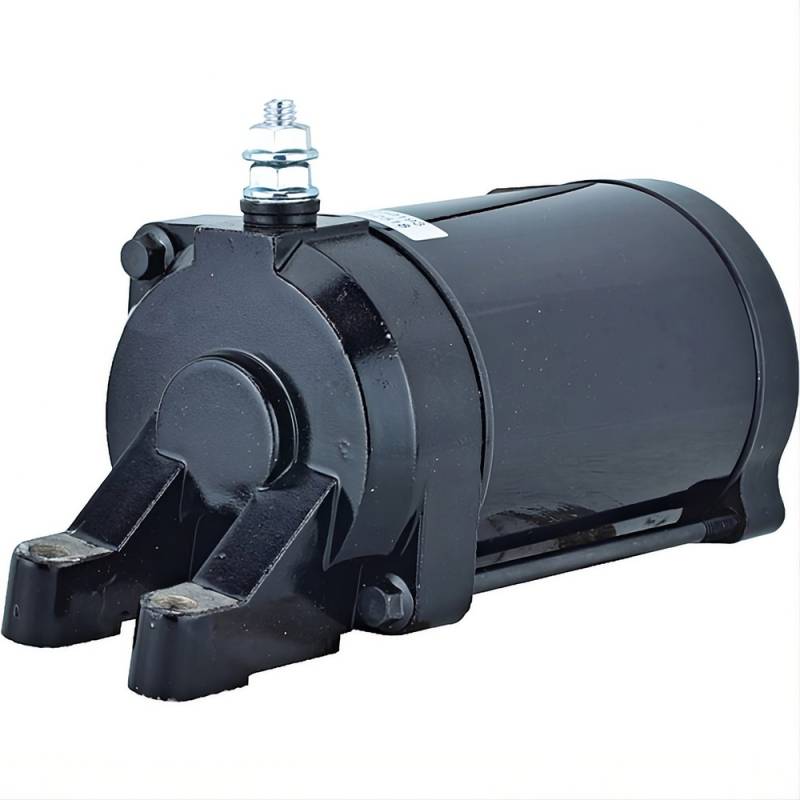

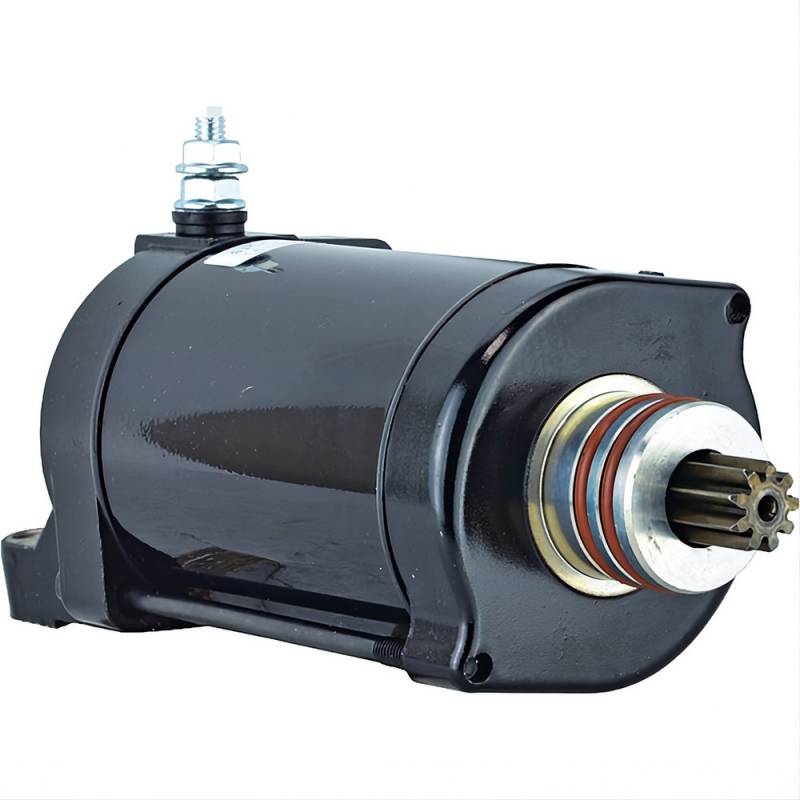

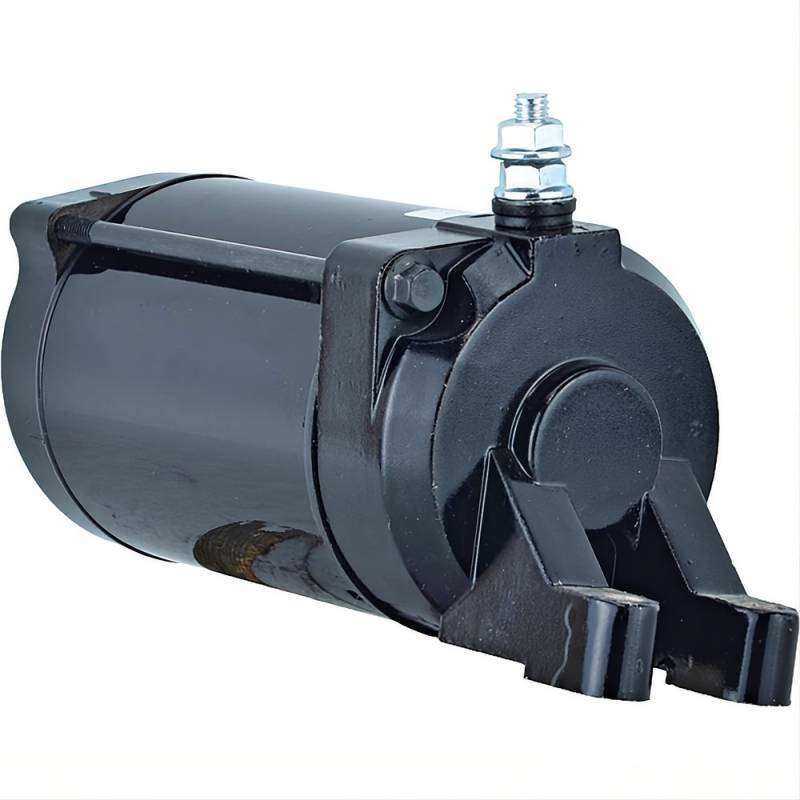

12V Starter Motor Fits 2017-2018 Sea-Doo Gti Gts 420-893-830

BRP ROTAX ACE 12 VOLT 9-TOOTH PMDD STARTER MOTOR — SEA-DOO, MAVERICK X3, RYKER AND SPYDER APPLICATIONS (2014-2025):

SEA-DOO PERSONAL WATERCRAFT — ROTAX 900 ACE:
• Sea-Doo Spark 2Up / 3Up 900 ACE 3-Cyl 4-Stroke (2014-2020)
• Sea-Doo Spark HO 900 ACE 3-Cyl 4-Stroke (2014-2018)
• Sea-Doo Spark TRIXX 900 ACE 3-Cyl 4-Stroke (2017-2020)
• Sea-Doo Spark IBR 900 ACE 3-Cyl 4-Stroke (2015-2018)
• Sea-Doo GTI 900 ACE 3-Cyl 4-Stroke (2017-2018)
• Sea-Doo GTS 900 ACE 3-Cyl 4-Stroke (2017-2018)

CAN-AM MAVERICK X3 — 900cc ROTAX ACE TURBO TRIPLE:
• Can-Am Maverick X3 / X3 HO 900cc Turbo Triple (2017-2018)
• Can-Am Maverick X3 Turbo / Turbo R XDS XRS XMR XRC 900cc (2017-2019)
• Can-Am Maverick X3 Turbo R DS / Turbo DS 900cc (2021-2025)
• Can-Am Maverick X3 Turbo RR DS RS XDS XRS 900cc (2023-2025)
• Can-Am Maverick X3 Turbo RR XMR 64 / XMR 72 900cc (2022-2025)
• Can-Am Maverick X3 Turbo RR XRC 64 / XRC 72 900cc (2022-2025)
• Can-Am Maverick X3 Turbo RS 900cc Turbo Triple (2024)

CAN-AM MAVERICK X3 MAX — 900cc ROTAX ACE TURBO TRIPLE 4-SEAT:
• Can-Am Maverick X3 Max / Max XDS DPS / Max XRS DPS 900cc (2017)
• Can-Am Maverick X3 Max Turbo / Turbo R XDS XRS 900cc (2018-2019)
• Can-Am Maverick X3 Max Turbo / Turbo DS 900cc (2022-2025)
• Can-Am Maverick X3 Max Turbo RR DS RS XDS XRS 900cc (2023-2025)
• Can-Am Maverick X3 Max Turbo RR XMR / XRC 900cc (2023-2025)

CAN-AM RYKER 3-WHEEL ROADSTER — ROTAX ACE:
• Can-Am Ryker 600 ACE 600cc 2-Cyl 4-Stroke Roadster (2019-2022)
• Can-Am Ryker 900 ACE 900cc 3-Cyl 4-Stroke Roadster (2019-2023)

CAN-AM SPYDER 3-WHEEL ROADSTER — 1330cc ROTAX ACE TRIPLE:
• Can-Am Spyder F3 1330cc ACE 3-Cyl 4-Stroke (2015-2023)
• Can-Am Spyder F3-S / F3-S Special Series 1330cc ACE (2015-2022)
• Can-Am Spyder F3-T / F3-T Limited 1330cc ACE (2016-2024)
• Can-Am Spyder F3 Limited 1330cc ACE 3-Cyl (2016-2024)
• Can-Am Spyder F3 Sport 1330cc ACE 3-Cyl (2023-2024)
• Can-Am Spyder RT / RT (SE5) 1330cc ACE 3-Cyl (2014-2024)
• Can-Am Spyder RT-S 1330cc ACE 3-Cyl (2016-2017)
• Can-Am Spyder RT Limited 1330cc ACE 3-Cyl (2017-2024)

ENGINE FAMILY DATA — ROTAX ACE:
• Rotax 900 ACE 899cc 3-Cylinder 4-Stroke — Sea-Doo Spark, GTI, GTS
• Rotax 900 ACE Turbo 899cc 3-Cylinder — Can-Am Maverick X3 and X3 Max
• Rotax 600 ACE 600cc 2-Cylinder 4-Stroke — Can-Am Ryker 600
• Rotax 900 ACE 899cc 3-Cylinder 4-Stroke — Can-Am Ryker 900
• Rotax 1330 ACE 1330cc 3-Cylinder 4-Stroke — Can-Am Spyder F3 and RT

FITMENT NOTES:
• 12 VOLT permanent magnet direct drive — no gear reduction

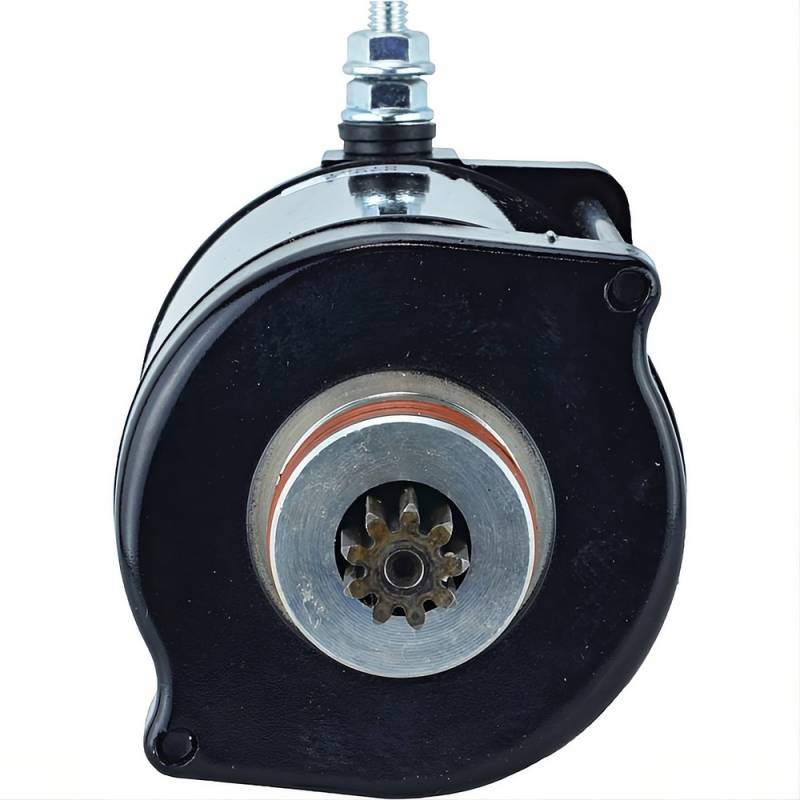

• CLOCKWISE rotation with 9-tooth pinion, 14.1mm gear outside diameter
• Registry outside diameter 30mm, overall length 158.5mm

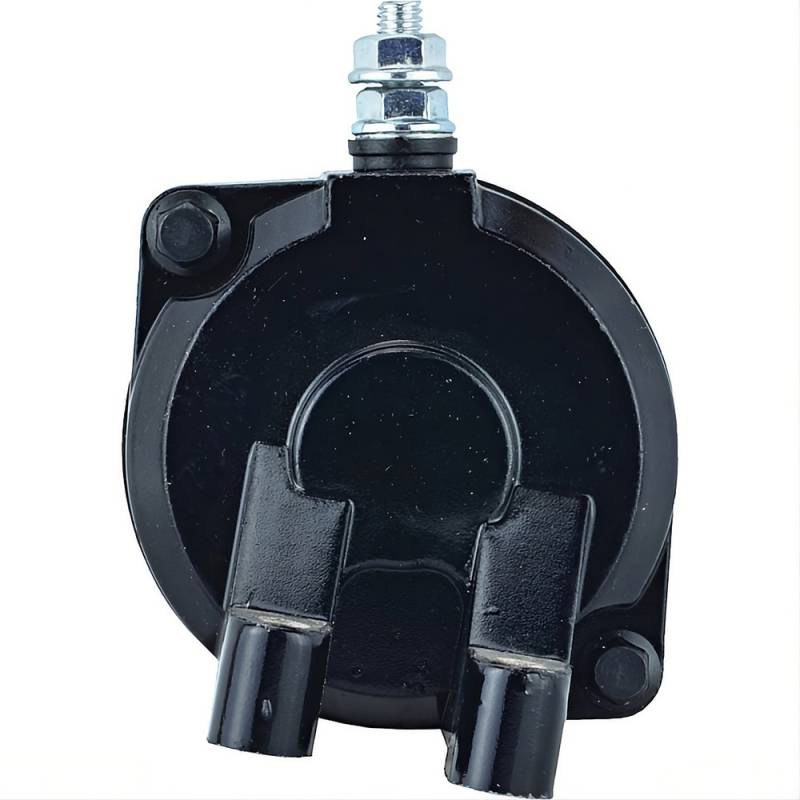

• Mounting: 2 unthreaded holes 6.4mm inside diameter on 28mm centres
• Output terminal is an M6 B+ stud — verify your cable terminal size
• CRITICAL — DOES NOT FIT the Can-Am Maverick 1000R or Maverick Max 1000R with the 976cc Rotax V-twin, including all Turbo, X ds, X rs, X mr and X xc versions of those models. Those use BRP 420684560 / 420684562 / 420684566 / 420684568, a different starter shared with Commander, Defender, Outlander and Traxter
• Also does not fit Maverick Trail 800 / 1000 or Maverick Sport 1000 — same 420684xxx family
• Both BRP numbers 420-892-426 and 420-893-830 cover this unit and interchange
