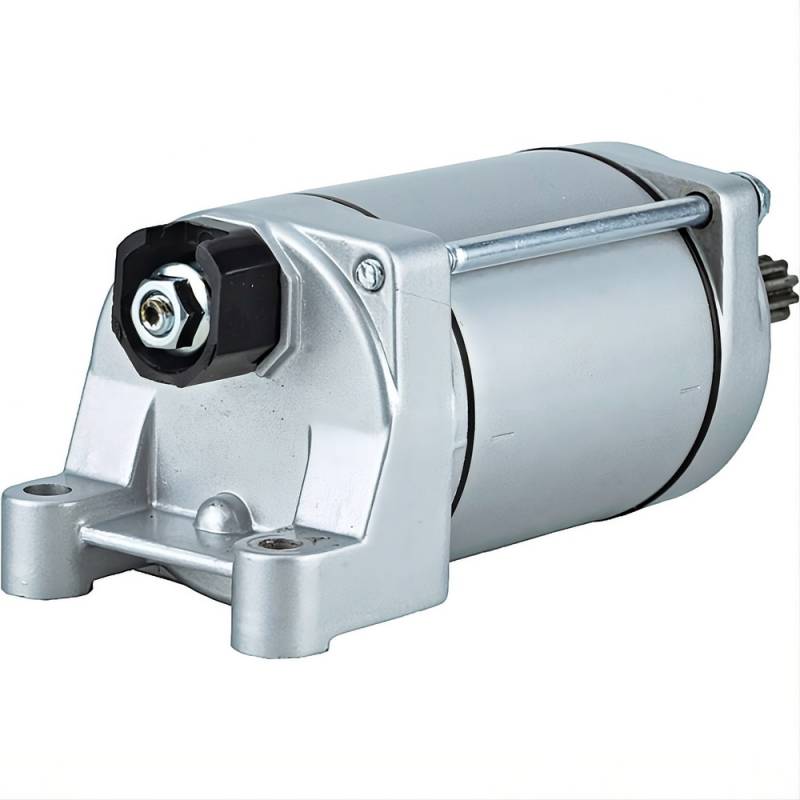

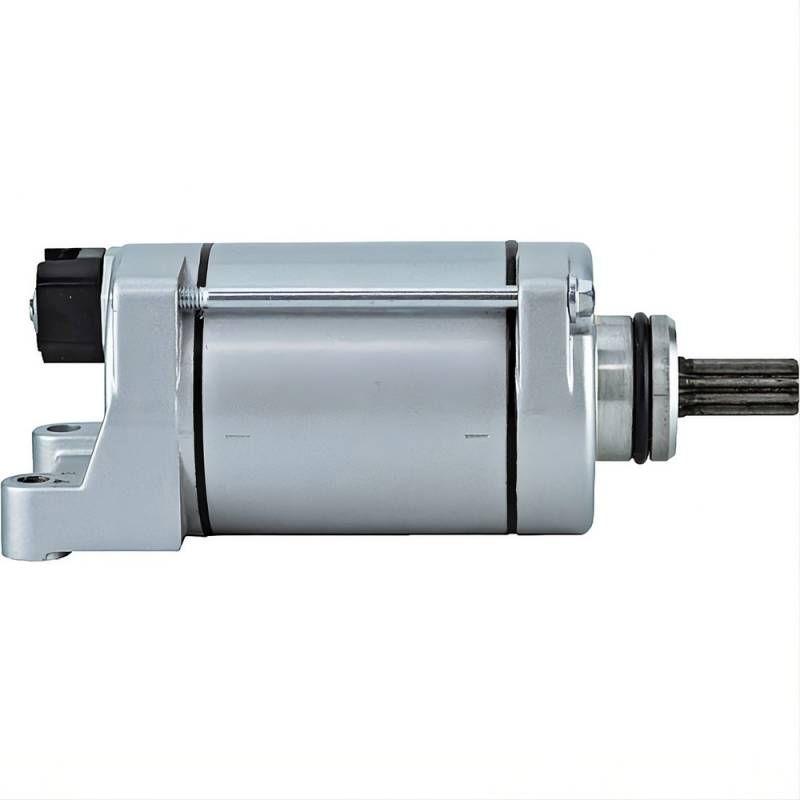

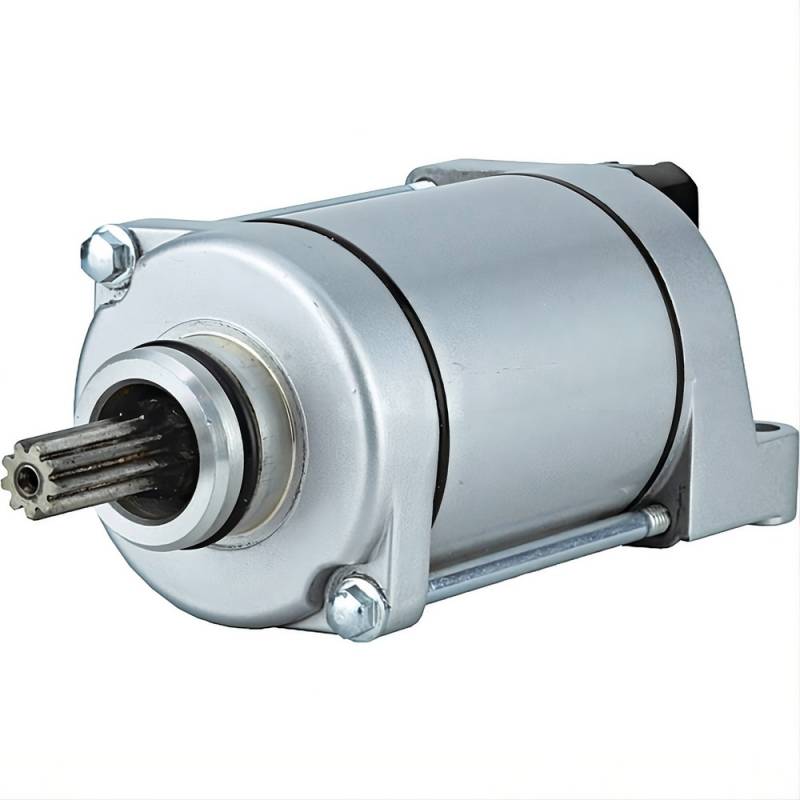

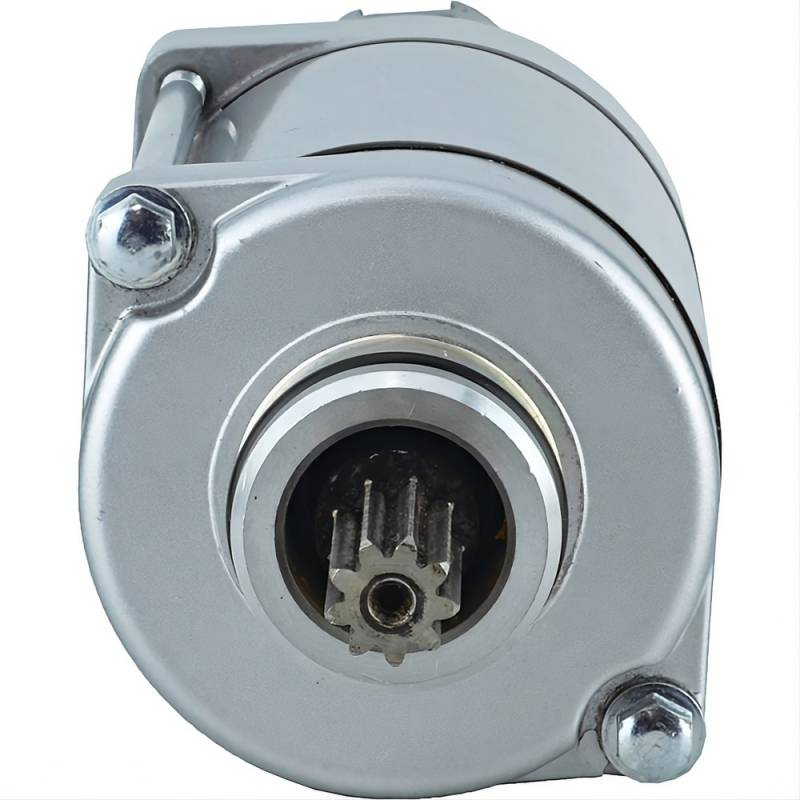

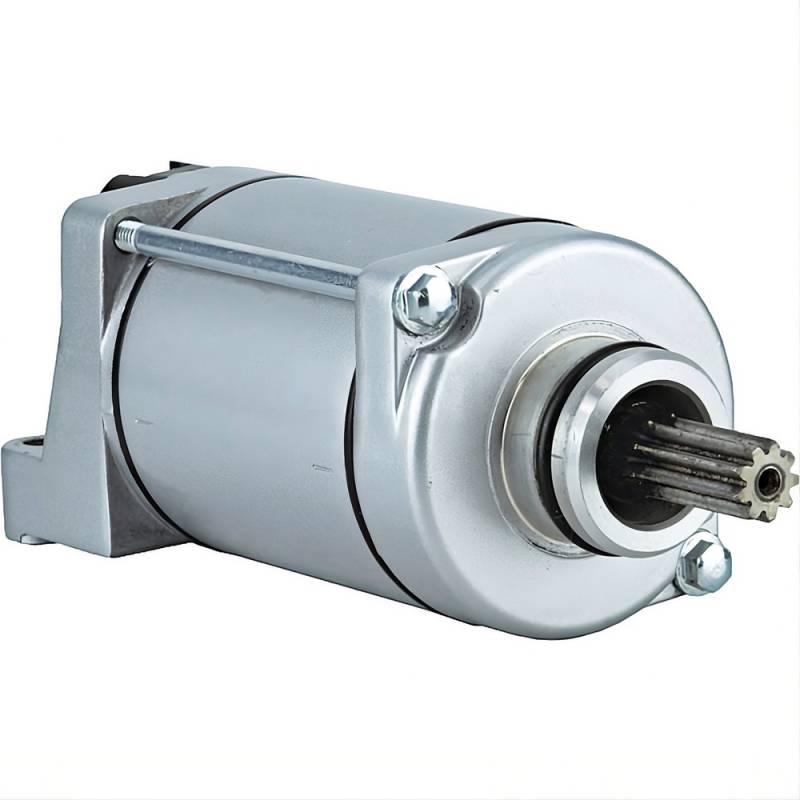

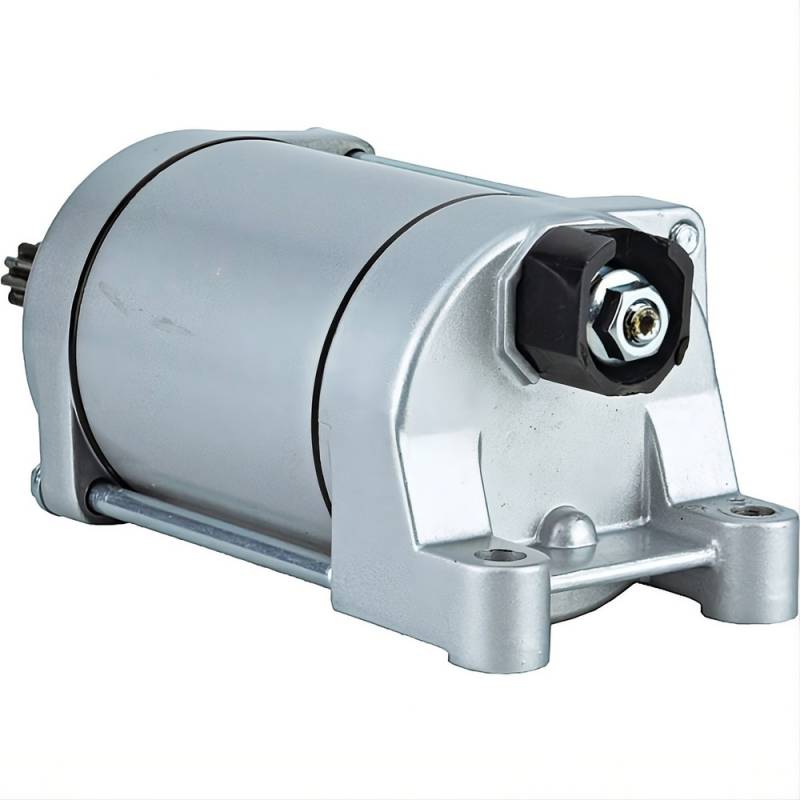

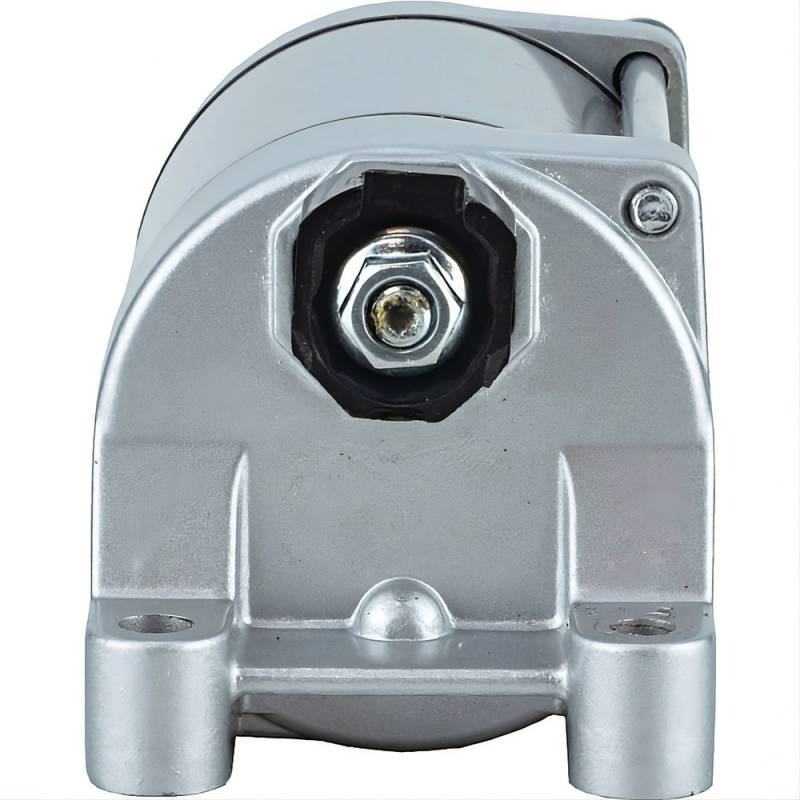

12V Starter Motor Fits 2013-2023 Honda Cb500x 31200-Mgz-J81

HONDA 12 VOLT CCW PERMANENT MAGNET STARTER MOTOR — CB500X AND CB400X APPLICATIONS (2013-2023):

HONDA CB500X ADVENTURE TOURING — 471cc PARALLEL TWIN:
• Honda CB500X 471cc DOHC 8-Valve Liquid-Cooled Parallel Twin (2013-2023)
• Honda CB500XA ABS 471cc DOHC Liquid-Cooled Parallel Twin (2013-2023)
• Honda CB500X ABS 471cc 4-Stroke Parallel Twin Motorcycle (2013-2023)

HONDA CB400X — 399cc PARALLEL TWIN (ASIAN MARKET):
• Honda CB400X 399cc DOHC Liquid-Cooled Parallel Twin (2013-2019)
• Honda CB400XA ABS 399cc DOHC Liquid-Cooled Parallel Twin (2013-2019)

ENGINE AND STARTING SYSTEM DATA:
• Engine: 471cc DOHC 8-Valve Liquid-Cooled Parallel Twin, CB500X (2013-2023)
• Engine: 399cc DOHC Liquid-Cooled Parallel Twin, CB400X (2013-2019)
• Starting System: 12 Volt Negative Ground, Permanent Magnet Direct Drive
• Drive Rotation: Counter Clockwise (CCW) viewed from the drive end

FITMENT NOTES:
• 12 VOLT permanent magnet direct drive — no gear reduction
• COUNTER CLOCKWISE rotation — a clockwise starter will not work
• 9-tooth pinion, 12mm gear outside diameter, 30mm registry outside diameter
• Overall length 161mm, 2 unthreaded mounting holes 6mm inside diameter
• CRITICAL — THIS IS NOT THE CB500F, CBR500R OR REBEL 500 STARTER. Those models use Honda 31200-MGZ-J01, which is a separate part number. Many listings incorrectly combine the two
• Also NOT the Honda 31200-MFL-003 unit used on the CBR1000RR Fireblade
• Model year coverage is confirmed through 2023 — verify the number on the machine for later CB500X models before ordering
