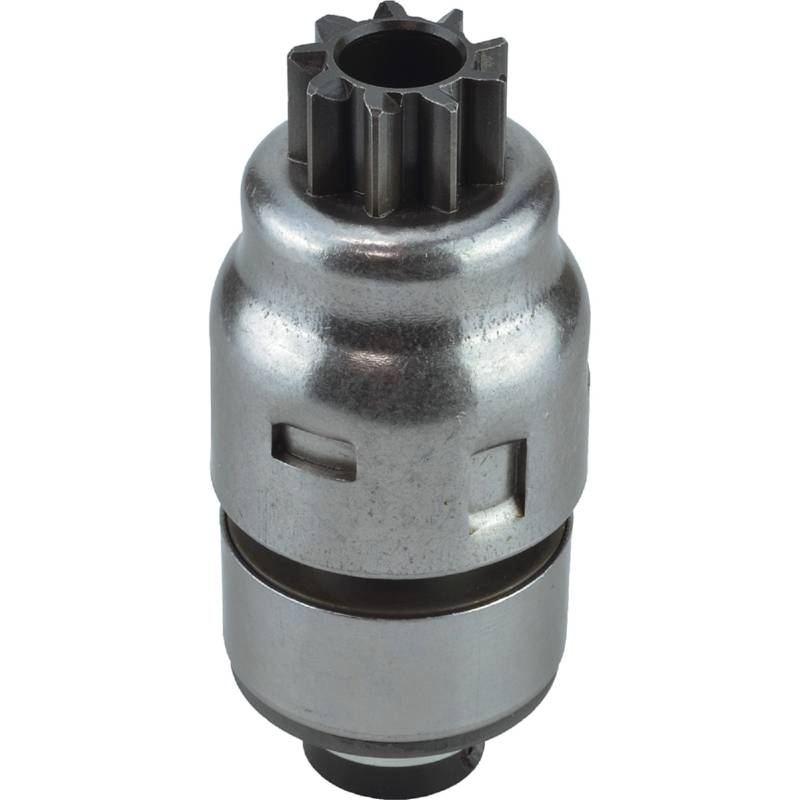

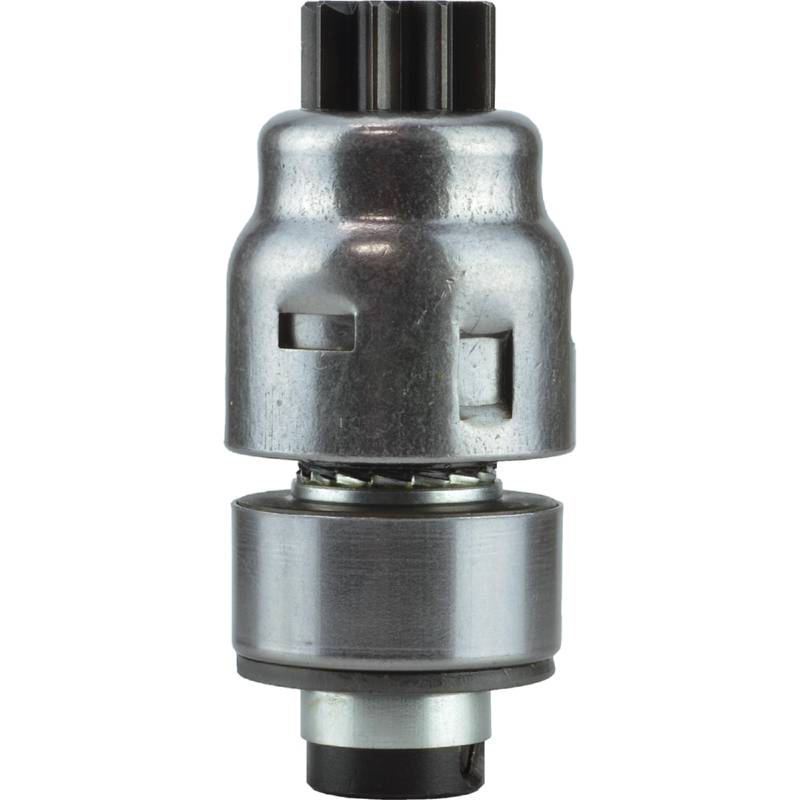

Starter Drive Assembly Compatible With Delco Prestolite Ford Starters 9 Tooth Cw 16Mm Id 30Mm Gear

Delco :
• D2012 (Starter Drive Assembly)

Cross-Reference:
• 11R-BR565 / 11-BR565 / 4-565 (Starter Drive)
• 59-34 / EBB-19 (Starter Drive)
• 3-565 / DR-565 / DR-565HD (Starter Drive)
• 6140-565 / 6140-565HD (Starter Drive)

Related Stens Part Numbers:
• 220-12036 / 220-12139 / 220-12297 (Starter Drive)
• 220-12301 / 220-12334 (Starter Drive)

:
• Stens 220-12438 (Drive Assembly)

Product Specifications:
• Type: Starter Drive Assembly — Rubber Folo Thru
• Rotation: Clockwise (CW)
• Number of Teeth: 9
• Inner Diameter (ID): 16.000mm
• Gear Outer Diameter (OD): 30.000mm
• Length: 117.000mm
• Number of Splines: 3
• Spline Type: Straight
• Drive Type: Rubber Folo Thru
• Specification: Large Barrel Folo Thru, Keyway & Set Screw
• Wet Clutch Seal: No
• Compatible Starters: Delco / Prestolite / Ford — CW Rotation
• Application: John Deere / Allis Chalmers / IH / Case / Massey Harris / Caterpillar

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
