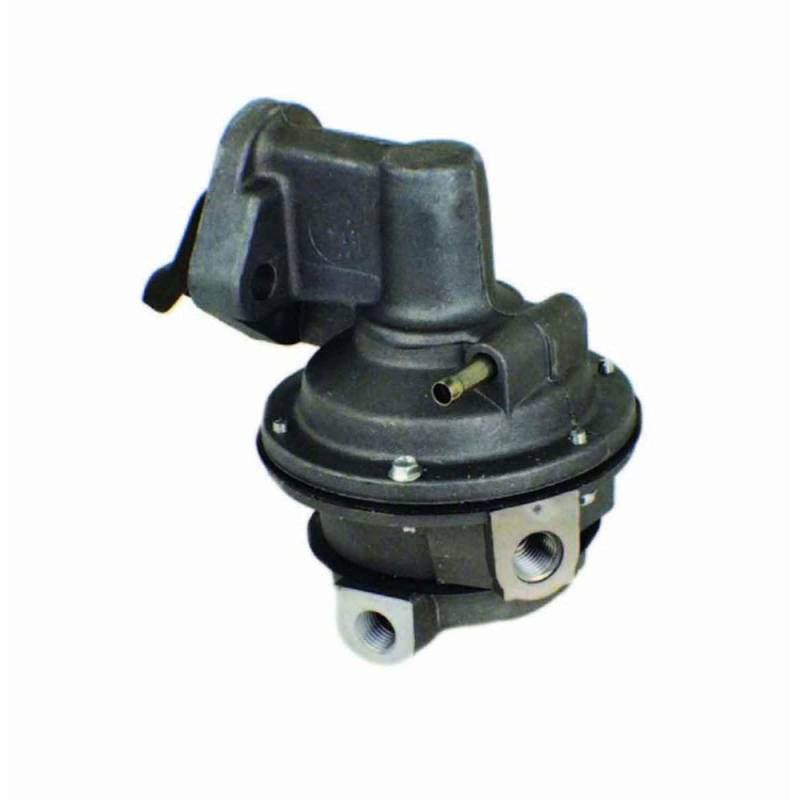

New Crusader Marine Fuel Pump Compatible With Gm Big Block V8 454/502 Inboard 97843 Direct

PH500-M017A1
CRUSADER PART NUMBERS:
• 97843

PLEASURECRAFT PART NUMBERS:
• RA080010A, PCMRA080010A

CARTER PART NUMBERS:
• M60502
• 60502, the flange stamp

OTHER PART NUMBERS:
• Airtex: 60502
• Facet: 60502
• Purolator: 60502
• GMB: 596-8010, 5968010
• NAPA: B0271P
• Precision: M23114
• Spectra Premium: SP1254MP
• Carquest: 1603399

SPECIFICATIONS:
• Type: Mechanical fuel pump, diaphragm, cam lever
• Engine: GM Mark IV 454 7.4L and 502 8.2L big block V8
• Fuel Type: Gasoline
• Inlet: 1/4-18 NPSF threaded, one
• Outlet: 1/4-18 NPSF threaded, one
• Pressure: 6.5 to 8.5 PSI
• Flow: 40 to 45 GPH
• Mounting: 2 holes
• Body: Aluminum housing
• Gasket: Included
• Weight: about 1.8 lb
• Box: 5.5 x 4.5 x 4.5 in
• Condition: New aftermarket, not a Crusader or Carter branded unit

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $235.04
Sale: $134.31
Save: 43%
Save: $100.73
Qty:
Free Shipping!

Description

⚠️ NEW AFTERMARKET MECHANICAL FUEL PUMP, CRUSADER 97843, FLANGE 60502:
• Mechanical diaphragm pump, 1/4-18 NPSF inlet and outlet, 6.5 to 8.5 PSI, 40 to 45 GPH
• Fits the carbureted GM Mark IV big block with the Carter style pump, engine serial 69879 to 88709
• Read the flange stamp on your old pump: it should read 60502

CRUSADER 454 7.4L BIG BLOCK V8:
• Crusader 454 Model 350, 7.4L Mark IV, 1987, serial 69879 to 73099
• Crusader 454 Model 350, 7.4L Mark IV, 1988, serial 73100 to 80122
• Crusader 454 Model 350, 7.4L Mark IV, 1989, serial 80123 to 84967
• Crusader 454 Model 350, 7.4L Mark IV, 1990, serial 84968 to 87880
• Crusader 454 Model 350, 7.4L Mark IV, 1991, serial 87881 to 88709

CRUSADER 502 8.2L BIG BLOCK V8:
• Crusader 502, 8.2L, carbureted, with the Carter style mechanical pump
• Crusader 502, 8.2L, engine serial 69879 to 88709

CARTER CATALOG LISTING:
• Crusader Marine 454 7.4L, 1984 to 1991
• Engines built before serial 69879 left the factory with an AC style pump
