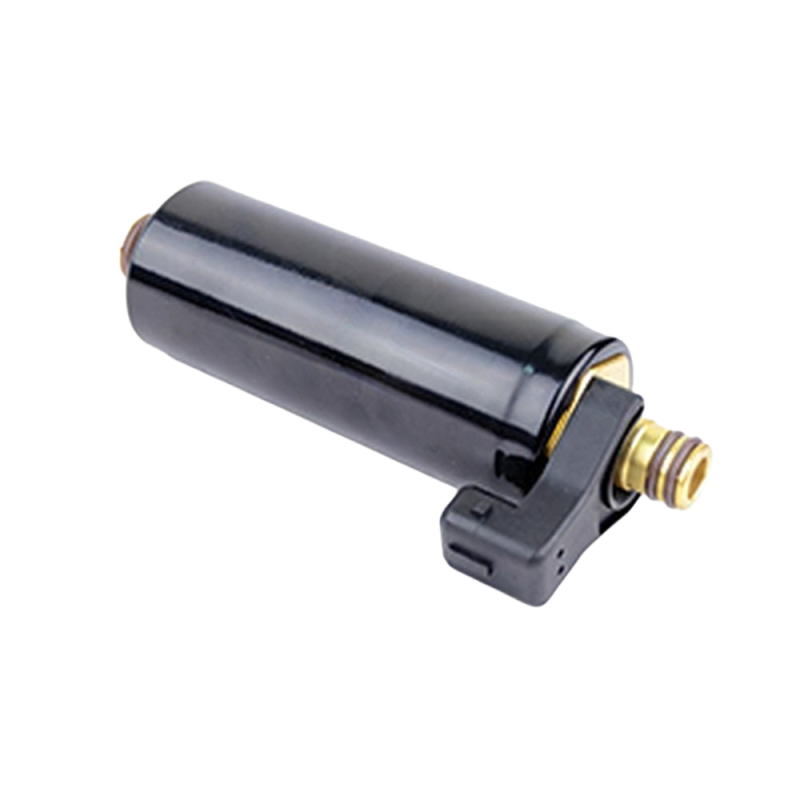

New Low Pressure Fuel Pump Compatible With 2002-2010 Yamaha F225 Lf225 F-Txr F-Tlr F-Tur Lf-Txr

(0) Reviews: Write first review
PH500-M081A1
YAMAHA OEM PART NUMBERS:
• Yamaha Low Pressure Fuel Pump: 69J-24410-02-00 / 69J244100200
• Yamaha Low Pressure Fuel Pump: 69J-24410-01-00 / 69J244100100
• Yamaha Low Pressure Fuel Pump: 69J-24410-00-00 / 69J244100000

SPECIFICATIONS:
• Type: Low Pressure External Lift Fuel Pump
• Pressure: 4-8 PSI (Low Pressure)
• Position: External to VST (Supplies Fuel TO VST Tank)
• Voltage: 12V DC
• Application: Yamaha F200 / F225 / F250 4-Stroke V6 Outboards (2002-2010+)
• Engine: 3.3L (3352cc) V6 24-Valve DOHC EFI 4-Stroke
• Rotation Variants: F (Forward), LF (Counter-Rotation), VF (Performance)
• Ethanol Compatible: Yes
• Condition: New
• Note: NOT the high-pressure VST pump — this is the external lift/boost pump

APPLICATIONS SUMMARY:
• Yamaha F200 / LF200 / VF200 4-Stroke V6 Outboards (2002-2010+)
• Yamaha F225 / LF225 / VF225 4-Stroke V6 Outboards (2002-2010+)
• Yamaha F250 / LF250 / VF250 4-Stroke V6 Outboards (2002-2010+)
• F-TXR / F-TUR / F-TLR / F-BTUR / F-BTXR Variants
• LF-TXR / LF-TUR / LF-BTUR / LF-BTXR Counter-Rotation Variants

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $477.26
Sale: $272.72
Save: 43%
Save: $204.54
Qty:
Free Shipping!

Description

YAMAHA F200 4-STROKE V6 OUTBOARDS (2002-2010+) — 3.3L (3352cc) V6 24-Valve DOHC EFI:
• Yamaha F200 F-TXR 4-Stroke V6 (2002-2010)
• Yamaha F200 F-TUR 4-Stroke V6 (2002-2010)
• Yamaha LF200 LF-TXR Counter-Rotation 4-Stroke V6 (2002-2009)
• Yamaha LF200 LF-TUR Counter-Rotation 4-Stroke V6 (2002-2010)
• Yamaha VF200 4-Stroke V6 Performance (2010+)

YAMAHA F225 4-STROKE V6 OUTBOARDS (2002-2010+) — 3.3L V6 24-Valve DOHC EFI:
• Yamaha F225 F-TXR 4-Stroke V6 (2002-2010)
• Yamaha F225 F-TLR 4-Stroke V6 (2006-2009)
• Yamaha F225 F-TUR 4-Stroke V6 (2002-2009)
• Yamaha LF225 LF-TXR Counter-Rotation 4-Stroke V6 (2002-2009)
• Yamaha LF225 LF-TUR Counter-Rotation 4-Stroke V6 (2002-2010)
• Yamaha VF225 4-Stroke V6 Performance (2010+)

YAMAHA F250 4-STROKE V6 OUTBOARDS (2002-2010+) — 3.3L V6 24-Valve DOHC EFI:
• Yamaha F250 F-TXR 4-Stroke V6 (2002-2010)
• Yamaha F250 F-TUR 4-Stroke V6 (2002-2009)
• Yamaha F250 F-BTUR 4-Stroke V6 (2006-2010)
• Yamaha F250 F-BTXR 4-Stroke V6 (2006-2010)
• Yamaha LF250 LF-TXR Counter-Rotation 4-Stroke V6 (2002-2009)
• Yamaha LF250 LF-TUR Counter-Rotation 4-Stroke V6 (2002-2010)
• Yamaha LF250 LF-BTUR Counter-Rotation 4-Stroke V6 (2006-2010)
• Yamaha LF250 LF-BTXR Counter-Rotation 4-Stroke V6 (2006-2010)
• Yamaha VF250 4-Stroke V6 Performance (2010+)

NOTE: This is the LOW PRESSURE external lift pump (4-8 PSI) that supplies fuel TO the VST (Vapor Separator Tank) on Yamaha 200-250 HP 4-stroke V6 outboards. Distinct from the high-pressure pump inside the VST. Both pumps work together on these engines. F = forward rotation; LF = counter-rotation; VF = performance variant.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 3.5 lbs.
  • W5.0000” x H5.0000” x L8.0000”
  • Free Shipping!
