Trailer Idler Hub Kit Compatible With 1-3/8 X 1-1/16 Tapered Spindle 5 Lug On 4-1/2 Bolt Pattern

BEARING AND SEAL NUMBERS:
• Inner Bearing: L68149 (1-3/8")
• Outer Bearing: L44649 (1-1/16")
• Inner Race: L68111
• Outer Race: L44610
• Grease Seal: 171255TB (1.719" ID)
• Dust Cap: 1.98" OD

SPECIFICATIONS:
• Spindle Size: 1-3/8" x 1-1/16" (Tapered)
• Spindle Type: #84 Tapered
• Stud Count: 5
• Bolt Circle: 5 on 4-1/2"
• Wheel Stud Thread: 1/2"-20
• Axle Capacity: 3,500 lbs
• Hub Capacity: 1,750 lbs
• Inner Bearing: L68149 (1-3/8")
• Outer Bearing: L44649 (1-1/16")
• Inner Race: L68111
• Outer Race: L44610
• Grease Seal: 171255TB (1.719" ID)
• Dust Cap OD: 1.98"
• Condition: New

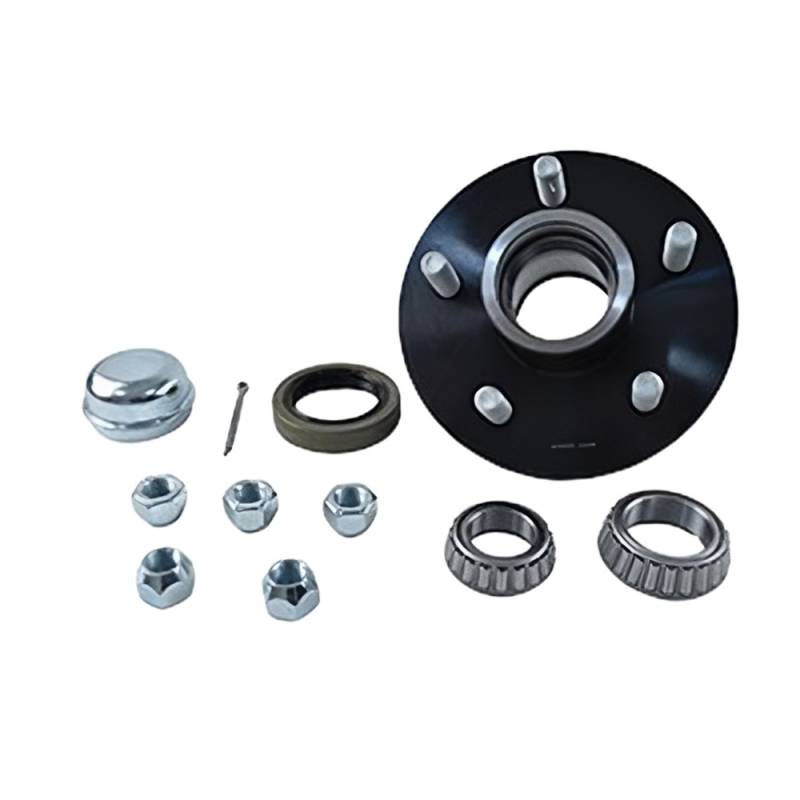

KIT INCLUDES:
• (1) 5-Stud Cast Iron Hub
• (1) Inner Bearing — L68149
• (1) Outer Bearing — L44649
• (1) Grease Seal — 171255TB
• (1) Dust Cap
• (5) Lug Nuts — 1/2"-20
• (1) Cotter Pin

APPLICATION:
• Boat, cargo, travel, horse, and equipment trailers
• Fits 1-3/8" x 1-1/16" tapered spindle (#84) axles
• 5 on 4-1/2" bolt circle (standard trailer pattern)
• 3,500 lb rated axles
• NOT for straight spindles (1-1/16" x 1-1/16")

Trailer Idler Hub Kit — 5 on 4-1/2 Inch Bolt Pattern
Complete hub kit with cast iron hub, L68149 and L44649 bearings, 171255TB grease seal, dust cap, lug nuts, and cotter pin. Universal fit for 1-3/8 inch by 1-1/16 inch tapered spindle trailer axles. 5 on 4-1/2 inch bolt pattern. 1,750 lb per hub capacity.
