OEM PART NUMBERS:
• Hustler: 601969
• John Deere: TCU29747
• Ariens/Gravely: 07200519
• Scag: 483242
• Dayco: L5125
• Gates: 69125 / 851250
• Goodyear: B122
SPECIFICATIONS:
• Belt Type: V-Belt (Section B / 5L)
• Belt Length: 125" (3175mm)
• Belt Width: 5/8" (15.875mm)
• Belt Depth: 0.375" (9.5mm)
• Cover Ply: 2 Ply
• Cord Material: Aramid (Kevlar)
• Cover Material: Neoprene
• Resistance: High Cut, Oil and Heat Resistant
• Condition: New
APPLICATION:
• Hustler TrimStar 48" Deck (929240, 929265, 929273, 930388, 930396, 930644CE)
• John Deere WH48A/WHP48A 48" Commercial Walk-Behind
• Scag Cheetah/Tiger Cat/Tiger Cub/Wildcat 48"/52" Deck
• Gravely Pro 1948H/1952H, Pro-Walk 48HE/52HE
• Fitment varies by serial number — verify OEM part number before ordering

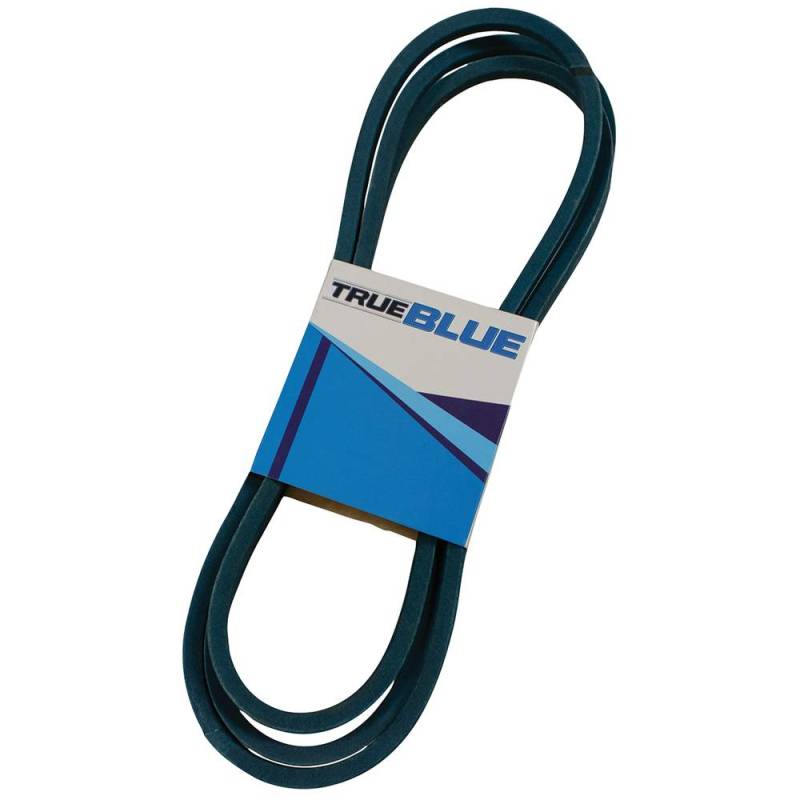

Deck Drive Belt — Hustler TrimStar John Deere Scag Gravely
Premium aramid cord deck drive belt for Hustler, John Deere, Scag, and Gravely commercial mower applications. Features 5/8" x 125" dimensions with 2-ply neoprene cover for high cut, oil, and heat resistance. Direct replacement for Hustler 601969, John Deere TCU29747, Scag 483242, and Ariens/Gravely 07200519. Cross-references Dayco L5125, Gates 69125/851250, and Goodyear B122. Aramid (Kevlar) cord construction provides superior strength and durability for demanding commercial mowing operations.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
