OEM PART NUMBERS:
• Scag: 48912 / 482137 / 483241
• Woods: 1001244 / W99
• John Deere: LVU21853
• Ferris: 20873 / 5020873 / 5020873SM
• Yazoo: 205-514
• Dayco: L5117
• Gates: 69117
• Goodyear: 851170
• Ref No: B114
SPECIFICATIONS:
• Belt Type: V-Belt (Section B / 5L)
• Belt Length: 117" (2972mm)
• Belt Width: 5/8" (15.875mm)
• Belt Depth: 0.4375" (11.1mm)
• Cover Ply: 2 Ply
• Cord Material: Aramid (Kevlar)
• Cover Material: Neoprene
• Resistance: High Cut, Oil and Heat Resistant
• Condition: New
APPLICATION:
• Scag STHM20/STHM22 Three-Wheel Rider 61" Deck
• Scag Tiger Cat/Tiger Cub/Wildcat 48" Deck
• Woods RD6000/PRD6000 Finish Mowers
• John Deere 1023E/1025R/1026R Compact Tractors
• Ferris High Wheel Walk-Behind Mowers
• Yazoo 60" Deck
• Fitment varies by serial number — verify OEM part number before ordering

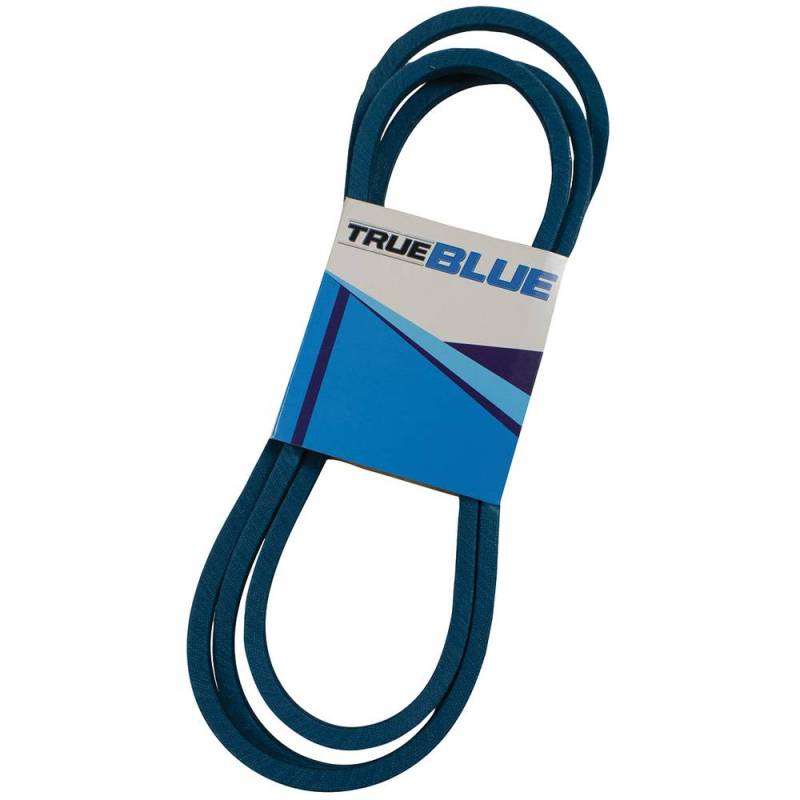

Deck Drive Belt — Scag Woods John Deere Ferris Yazoo
Premium aramid cord deck drive belt for commercial mower, finish mower, and compact tractor applications. Features 5/8" x 117" dimensions with 2-ply neoprene cover for high cut, oil, and heat resistance. Direct replacement for Scag 48912/482137/483241, Woods 1001244/W99, John Deere LVU21853, Ferris 20873/5020873/5020873SM, and Yazoo 205-514. Cross-references Dayco L5117, Gates 69117, and Goodyear 851170.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
