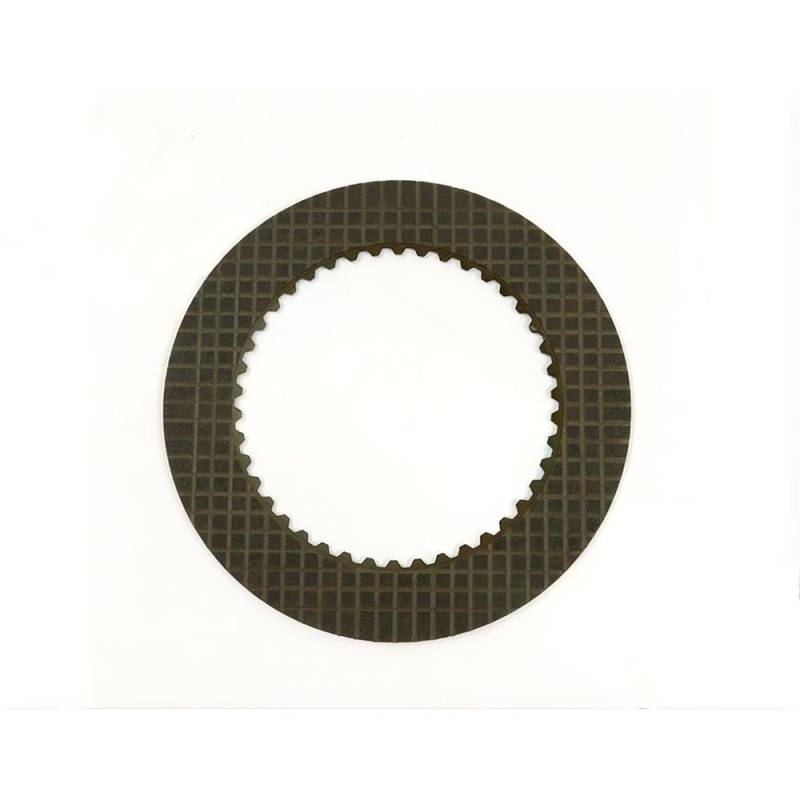

Clutch Disc Compatible With 1975-1992 John Deere 4055/4255/4455/4555 Clutch System Tractor Ar94517

TAR94517A1
OEM PART NUMBERS:
• John Deere: AR94517 (Primary OEM number)

SPECIFICATIONS:
• Type: Clutch Disc
• Condition: New

APPLICATION:
• Compatible with John Deere 4055/4255/4455/4555/4560/4755 (1988-1992)
• Compatible with John Deere 8430/8440/8450/8630/8640/8650 (1975-1988)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $119.75
Sale: $68.43
Save: 43%
Save: $51.32
Qty:
Free Shipping!

Description

JOHN DEERE TRACTORS:
• John Deere 4055/4255/4455/4555/4560/4755 Clutch System (1988-1992)
• John Deere 8430/8440/8450/8630/8640/8650 Clutch System (1975-1988)


IMPORTANT:
This is a CLUTCH disc — NOT a brake disc or Powershift transmission disc. The 55-series tractors (4055-4755) use separate discs in the clutch, wet brakes, and Powershift transmission. AR94517 fits the clutch system only. For brakes see R46417; for Powershift see R46416/RE53823.

Do NOT confuse AR94517 with AR94519 or RE23286 — all three are clutch discs for the same tractors but are NOT interchangeable. They serve different positions in the clutch assembly. Match your old disc to the correct OEM number. Also fits the 84/86-series (8430/8440/8450/8630/8640/8650) clutch system. Sold individually — verify disc count per clutch pack from the service manual. Symptoms of failure: clutch slipping under load, shuddering, burning smell. Replace all discs as a set. Inspect piston seals, pressure plate surface, and housing bore.

⚠️ Match OEM number exactly — AR94517 vs AR94519 vs RE23286 are not the same.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.7 lbs.
  • W10.0000” x H2.0000” x L10.0000”
  • Free Shipping!
