Fuel Injection Line Compatible With 2001-2009 Caterpillar 902/906 3024/C1.7/C2.2 2.2L 4-Cyl Diesel

CATERPILLAR MINI EXCAVATORS:
• Caterpillar 301.8C/302.5C/303CR/303.5CR 3024/C2.2 2.2L Diesel (2002-2010)

CATERPILLAR SKID STEER LOADERS:
• Caterpillar 216B/226B/232B/242B 3024/C2.2 2.2L Diesel (2002-2009)

CATERPILLAR COMPACT WHEEL LOADERS:
• Caterpillar 902/906 3024 2.2L Diesel (2001-2009)


IMPORTANT:

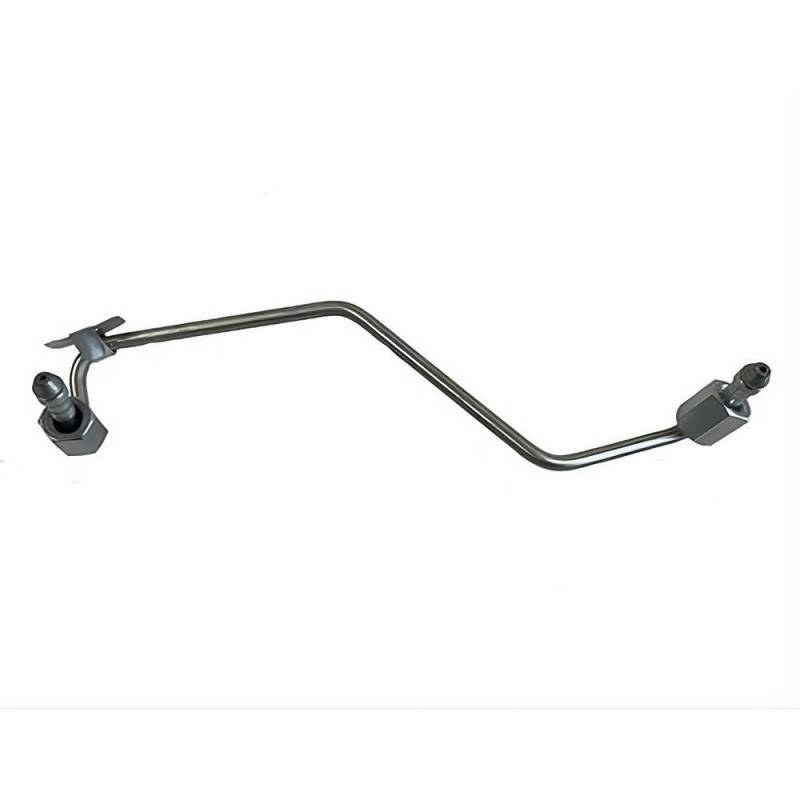

CYLINDER #4 HIGH-PRESSURE injection line for the Cat 3024/C2.2 (Perkins 404C-22/404D-22). This delivers fuel from the injection pump to the injector nozzle — do NOT confuse with the low-pressure leak-off/return pipe (Cat 486-8879). Each cylinder has unique bends — NOT interchangeable between positions.
Cat 3024/C2.2 = Perkins 404C-22/404D-22. Perkins equivalents: 131507700-131507730. Both sets fit the same engine — use whichever matches your parts catalog. Do NOT confuse with the Cat 3044C/C3.4 (Mitsubishi S4S, 3.3L) which uses completely different lines.
Symptoms: fuel weeping, diesel odor, single-cylinder misfire. A cracked line sprays fuel onto hot surfaces — fire risk. Use flare-nut wrenches. Bleed fuel system thoroughly — this small engine is hard to restart if not properly bled.
⚠️ Confirm high-pressure line (not leak-off pipe) and Cat vs Perkins part number.
