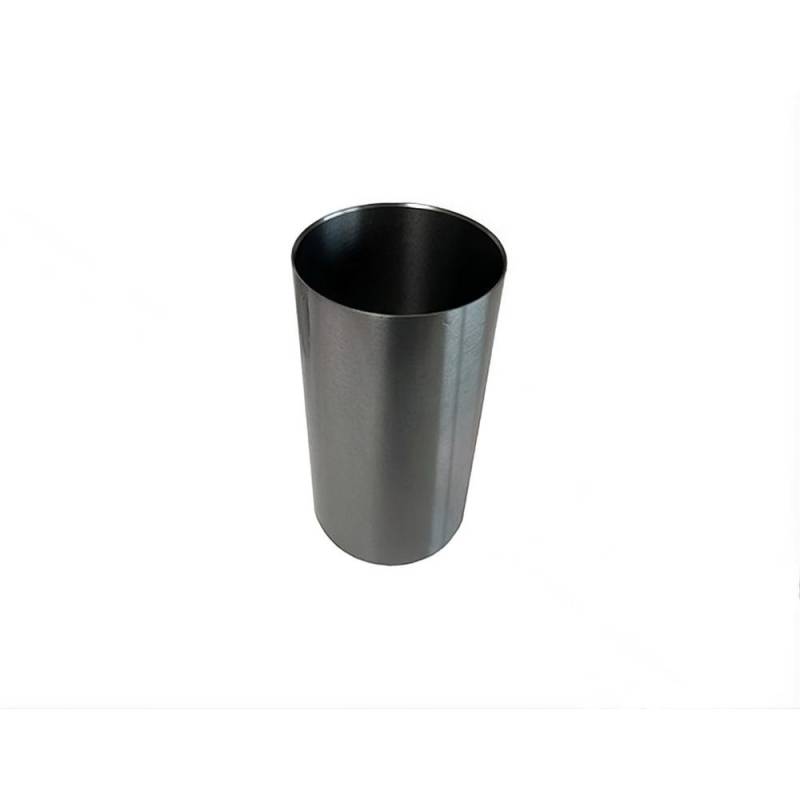

Cylinder Repair Sleeve Compatible With Mitsubishi S4kt/S6kt 1995-2012 S4k/S6k Diesel 102.0Mm Bore

M34307-00501A2
OEM PART NUMBERS:
• Mitsubishi: 34307-00501 (Primary OEM - 102mm repair sleeve)

SPECIFICATIONS:
• Bore Diameter: 102.0mm
• Finish: Finished
• Material: Cast Iron
• Condition: New

APPLICATION:
• Compatible with Caterpillar 311C/312C/314C (2002-2012)
• Compatible with Mitsubishi S4KT/S6KT (1995-2012)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $96.41
Sale: $55.09
Save: 43%
Save: $41.32
Qty:
Free Shipping!

Description

CATERPILLAR EXCAVATORS:
• Caterpillar 311C/312C/314C 3064/3066 (S4K/S6K) Diesel (2002-2012)

MITSUBISHI INDUSTRIAL:
• Mitsubishi S4KT/S6KT S4K/S6K Diesel (1995-2012)


IMPORTANT:
This is a THIN WALL REPAIR SLEEVE for the Mitsubishi S4K/S6K engine (also known as Caterpillar 3064/3066) — NOT a standard wet liner. Repair sleeves are used when the parent bore is too damaged for standard reconditioning. The block must be bored oversize, then the sleeve is pressed in. This is the Mitsubishi OEM number — the Caterpillar equivalent is 5I-7523. Both are 102mm bore repair sleeves for the same engine. The S4K (4-cylinder) and S6K (6-cylinder) engines are used in Caterpillar 311C/312C/314C excavators and Mitsubishi industrial equipment. Do NOT confuse with the 100mm bore repair sleeve (Cat 122-7311) for the 3046 engine — similar application but different bore size. Consult the engine service manual for parent bore machining specs.

⚠️ Repair sleeve — requires block boring. Cat equivalent is 5I-7523.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W6.0000” x H10.0000” x L6.0000”
  • Free Shipping!
