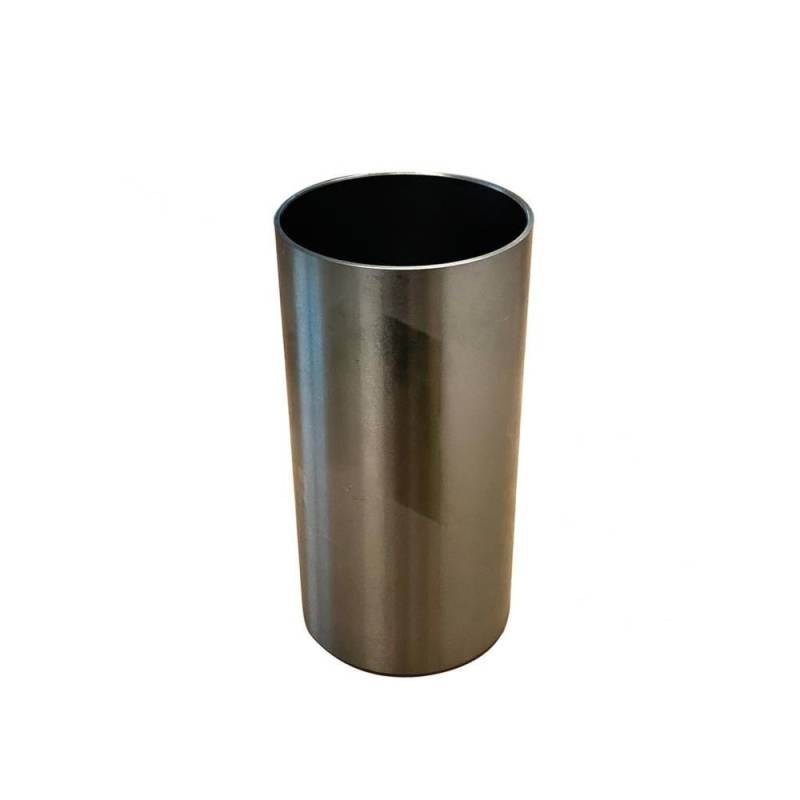

Universal Bore Cylinder Liner 86.0Mm Bore Semi-Finished Cast Iron Compatible With Kubota

86RSA1
OEM PART NUMBERS:
• Maxiforce/Universal: 86RS (Universal 86.0mm bore cylinder liner)

SPECIFICATIONS:
• Bore Diameter: 86.0mm
• Finish: Semi-Finished
• Material: Cast Iron
• Condition: New

APPLICATION:
• Compatible with Kubota KX155-5/KX161-3 (2005-2015)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $121.59
Sale: $103.88
Save: 15%
Save: $17.71
Qty:
Free Shipping!

Description

KUBOTA EQUIPMENT:
• Kubota KX155-5/KX161-3 Kubota V2403 2.4L Diesel (2005-2015)


IMPORTANT:
This is a SEMI-FINISHED universal bore cylinder liner (86mm bore) — it MUST be bored and honed to final size after installation. Do NOT install and run without machining. Universal liners are designed as repair/service sleeves for engines that originally came with parent bores (no factory liners). The block must be bored oversize to accept the sleeve. Compatible engines include Kubota V2403 (2.4L). Found in Kubota KX155-5/KX161-3 excavators. The V2403 is the largest bore in the Kubota V-series compact range at 86mm. Do not confuse with V2203 (84mm). Consult the engine service manual for parent bore machining specifications and interference fit requirements.

⚠️ Semi-finished universal liner — requires boring and honing after fitting.
