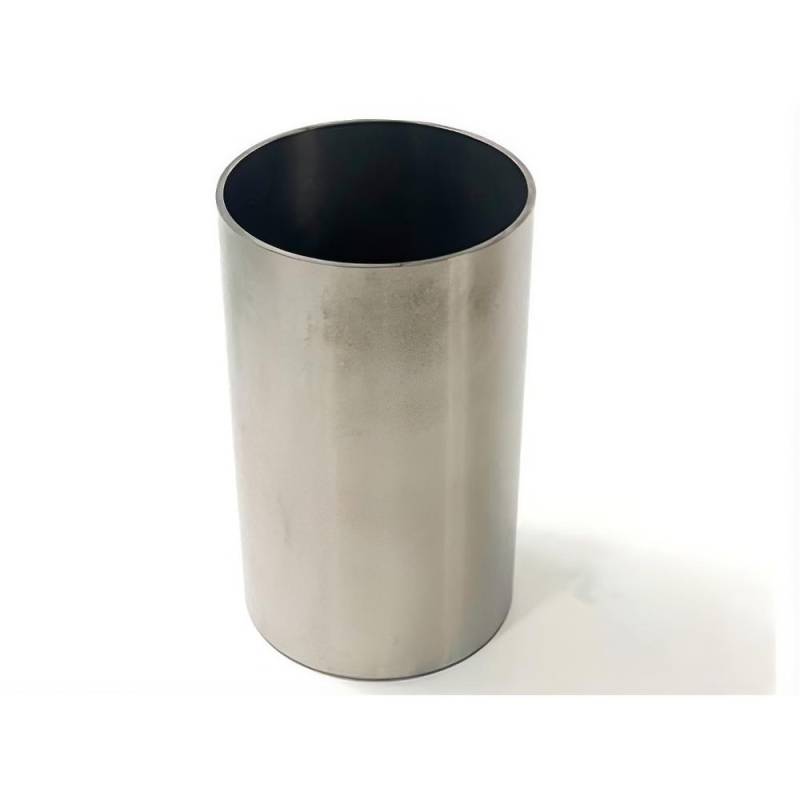

Universal Bore Cylinder Liner 98.0Mm Bore 190.0Mm Length Semi-Finished Cast Iron Compatible With

MASSEY FERGUSON TRACTORS:
• Massey Ferguson 165/175/265/275 Perkins 4.236 3.86L Diesel (1964-1988)

YANMAR INDUSTRIAL:
• Yanmar 4TNV98/4TNV98C Yanmar 4TNV98 3.3L Diesel (2004-2018)


IMPORTANT:
This is a SEMI-FINISHED universal bore cylinder liner (98mm bore) — it MUST be bored and honed to final size after installation. Do NOT install and run without machining. Length: 190.0mm. Universal liners are designed as repair/service sleeves for engines that originally came with parent bores (no factory liners). The block must be bored oversize to accept the sleeve. Compatible engines include Perkins 4.236 (3.86L, 98.43mm bore) and Yanmar 4TNV98/4TNV98C (3.3L). Found in Massey Ferguson 165/175/265/275 tractors (Perkins 4.236) and various Yanmar 4TNV98-powered equipment. For OEM Perkins 4.236 liners, see flanged (3135X032, 31358394), parallel (31358324), or semi-finished (3135X031) versions. Multiple engine families share the 98mm bore range — verify engine model before ordering. Consult the engine service manual for parent bore machining specifications and interference fit requirements.

⚠️ Semi-finished universal liner — requires boring and honing after fitting.
