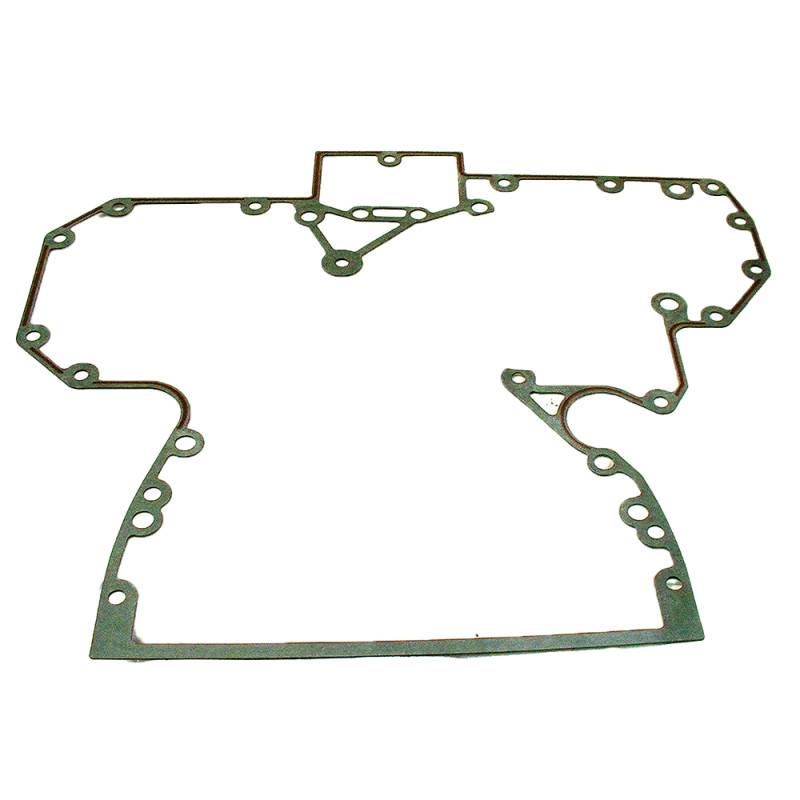

Timing Gear Cover Gasket Compatible With John Deere 450G/550G/650G 1991-2000 4045/6068 4.5L 4-Cyl

JOHN DEERE TRACTORS:
• John Deere 6400/6410/6510/6810 4045/6068 PowerTech 4.5-6.8L Diesel (1993-2003)

JOHN DEERE CONSTRUCTION:
• John Deere 450G/550G/650G 4045/6068 4.5-6.8L Diesel (1991-2000)


IMPORTANT:
This timing gear cover gasket fits the John Deere 4045/6068 PowerTech engine family — specifically the earlier production found in 6400/6410/6510/6810 tractors and 450G/550G/650G construction equipment (1991-2003). Do NOT confuse with R520131 or R520132 which are timing cover gaskets for later 4045/6068 production — the timing cover design changed between production eras.

Failure symptoms: oil seeping from the front timing cover, oil on the crankshaft pulley area. When replacing, inspect the front crankshaft seal — replace if showing any hardening or leakage. Clean all old gasket material from both the timing cover and block surfaces. On machines from this era, also inspect the timing cover itself for cracks around bolt holes. The 4045/6068 is one of Deere's most widely used engine families and gaskets can vary by serial number.

⚠️ Earlier production (1991-2003). Verify engine serial number — do not use R520131/R520132.
