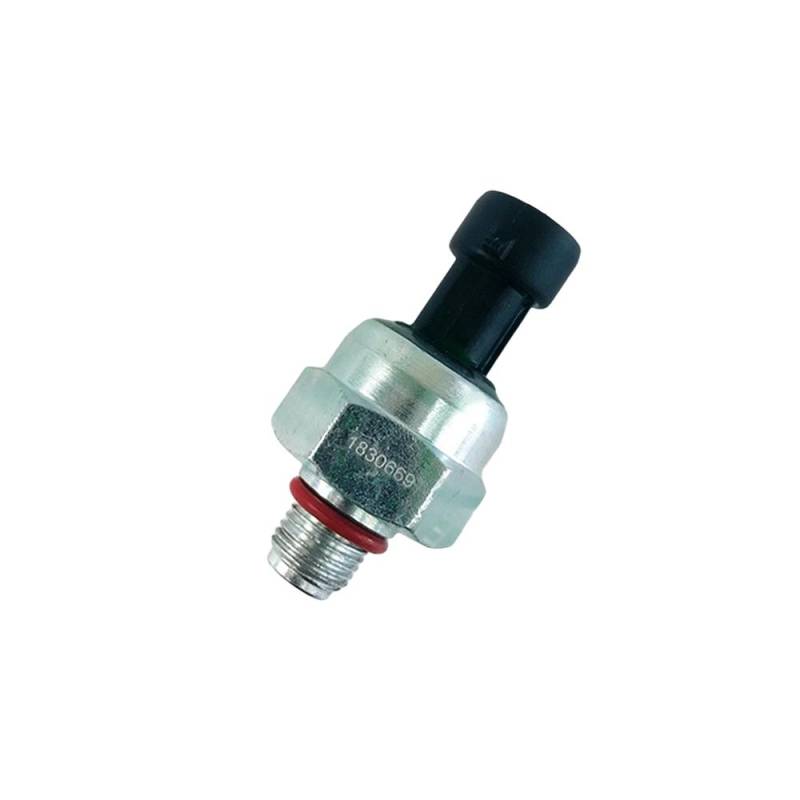

Injection Control Pressure Sensor Compatible With 1995-2004 International 3800/Re Dt466e 7.6L Diesel

1830669A2
OEM PART NUMBERS:
• International: 1830669 (Primary OEM number)
• International: 1830669C92 (Assembly number)

SPECIFICATIONS:
• Sensor Type: Injection Control Pressure
• Output: 0-5V
• Thread: 7/16-20 UNF
• Connector: 3-Pin
• Condition: New

APPLICATION:
• Compatible with International 4300/4400/4700/4900 (1995-2004)
• Compatible with International 3800/RE (1995-2004)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $143.83
Sale: $82.19
Save: 43%
Save: $61.64
Qty:
Free Shipping!

Description

INTERNATIONAL TRUCKS:
• International 4300/4400/4700/4900 DT466E 7.6L Diesel (1995-2004)

INTERNATIONAL BUSES:
• International 3800/RE DT466E 7.6L Diesel (1995-2004)


IMPORTANT:
INJECTION CONTROL PRESSURE (ICP) sensor for DT466E HEUI fuel system — NOT a conventional fuel rail pressure sensor. The DT466E uses hydraulically actuated injectors driven by high-pressure engine oil (3000+ PSI). The ICP monitors this oil pressure for the ECM. 1830669 and 1830669C92 are the same part (with/without assembly suffix).

Failure symptoms: hard starting, power loss under load, stalling, surging, fault codes 333 (ICP above/below desired) or 335 (unable to build pressure). The ICP is under the valve cover on the high-pressure oil rail — removal required. Before replacing, rule out IPR valve failure, HPOP issues, and injector O-ring leaks — all cause identical symptoms. Uses 7/16-20 UNF thread.
⚠️ HEUI system — verify ICP vs IPR before ordering.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.2 lbs.
  • W3.0000” x H3.0000” x L5.0000”
  • Free Shipping!
