OEM PART NUMBERS:
• Cummins: 3929161 (Current part number - Standard piston)

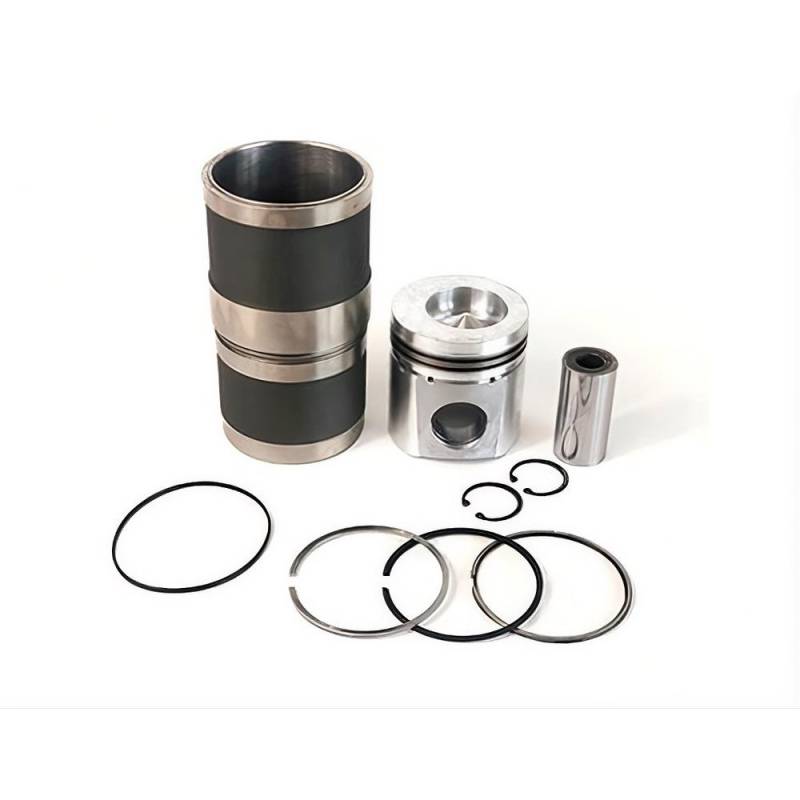

• Cummins: 3802657 (Piston kit containing piston 3929161)
SPECIFICATIONS:
• Bore Diameter: 114.0mm (4.49")
• Stroke: 135.0mm (5.32")
• Compression Height: 120.3mm
• Pin Diameter: 45.0mm
• Ring Grooves: 3
• Size: Standard
• Engine: C-Series 8.3 8.3L
• Cylinders: 6
• Condition: New
APPLICATION:
• Case IH Tractors 7220/7230/7240/7250 (1994-2000)
• Case IH Tractors 8910/8920/8930/8940/8950 (1996-2000)
• Case IH Tractors MX180/MX200/MX220 (1998-2003)
• Case Wheel Loaders 721B/721C/821B/821C
• Case IH Combines 2366/2388
• Hyundai Excavators R290LC-7/R320LC-7
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
