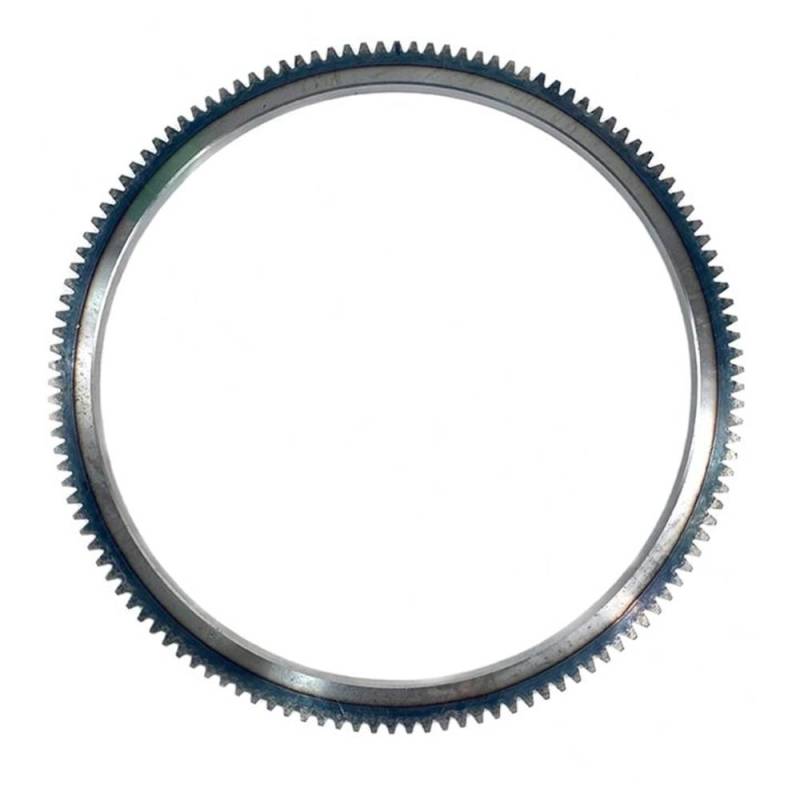

Flywheel Ring Gear Compatible With Cat 3013/3013C/C1.5 1997-2010 3013C (C1.5) - 1.5L, 3-Cyl (Cat

B154-2405A1
OEM PART NUMBERS:
• Caterpillar: 154-2405 (Primary OEM part number from Cat parts catalog)

SPECIFICATIONS:
• Teeth Count: 126
• Gear Type: Spur Ring Gear
• Material: Cast Iron
• Position: Flywheel Ring
• Width (mm): 17.5
• Outer Diameter (mm): 404
• Inner Diameter (mm): 371
• Mounting Style: Bolted to Flywheel
• Engine Family: Caterpillar 3013/3013C/C1.5 AND Caterpillar 3024/3024C/C2.2
• Condition: New

APPLICATION:
• Compatible with CAT 3013/3013C/C1.5 (1997-2010)
• Compatible with CAT 3024/3024C/C2.2 (1997-2010)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $232.84
Sale: $133.05
Save: 43%
Save: $99.79
Qty:
Free Shipping!

Description

CATERPILLAR COMPACT EQUIPMENT:
• CAT 3013/3013C/C1.5 3013C (C1.5) - 1.5L, 3-cyl (1997-2010)
• CAT 3024/3024C/C2.2 3024C (C2.2) - 2.2L, 4-cyl (1997-2010)


IMPORTANT:
126-tooth spur flywheel ring gear for Cat 3013/3024/C1.5/C2.2 engines. DUPLICATE PAIR: Same part as Perkins PU15376160. Cat 3013 = Perkins 403, Cat 3024 = Perkins 404. If one part number is out of stock, the other is identical.

This is the 126-tooth variant — do NOT confuse with the 109-tooth variant (B156-6960/P115376040) which fits the same engine family but is a different flywheel configuration. Count teeth on your existing ring gear before ordering — this is the #1 ordering mistake with these small Cat/Perkins engine ring gears. Inspect flywheel face and register for damage when ring gear is removed. Follow engine service manual for installation procedure.

⚠️ 126T variant. Same as Perkins PU15376160. NOT same as 109T (B156-6960). Count teeth.
