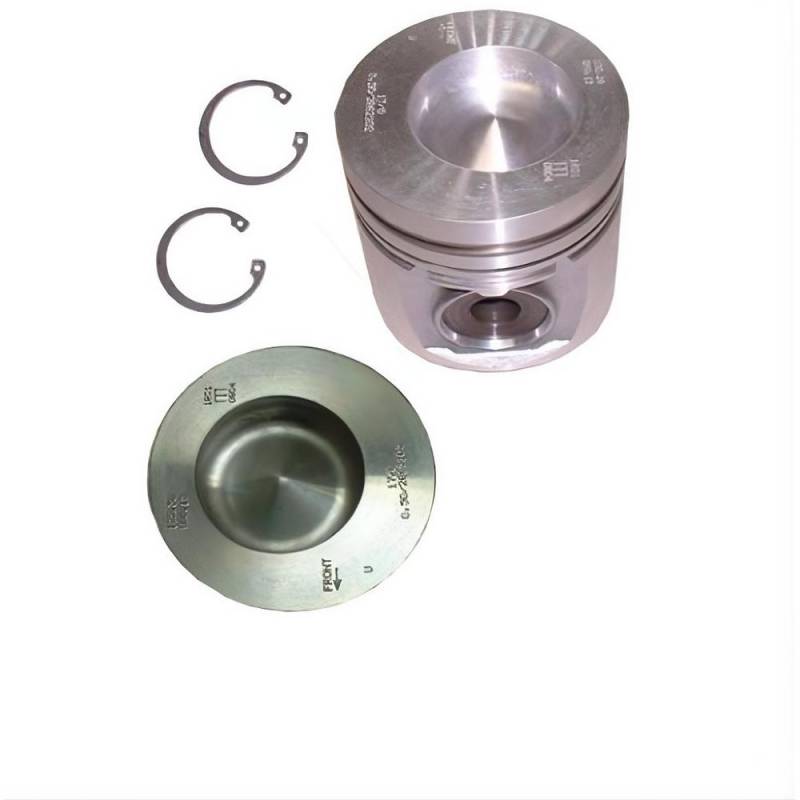

102.5Mm Steel Engine Piston Compatible With Case Ih 1640/1644 Combine B Series 1986-2000 5.9L

OEM PART NUMBERS:
• Cummins: 3908815 (0.50mm oversize piston - 16.5:1 CR non-emission turbo)
• Cummins: 3907156 (Standard bore variant - same 16.5:1 CR family)
• Cummins: 3907158 (1.00mm oversize variant - same 16.5:1 CR family)
• Cummins: 3802764 (0.50mm oversize piston kit number)

SPECIFICATIONS:
• Bore Diameter: 102.5mm (4.035")
• Stroke: 120.0mm (4.72")
• Compression Height: 71.56mm
• Pin Diameter: 40.0mm
• Ring Grooves: 3
• Size: 0.50mm Oversize
• Engine: B Series 5.9L
• Cylinders: 6
• Condition: New

APPLICATION:
• Case IH Tractors 2096/5120/5220 (1987-1997)
• Case IH Combines 1640/1644 (1986-1996)
• Case Excavators 9010B/9020/9020B (1990-2000)
• Dodge Trucks Ram 2500/Ram 3500 (1989-1998)
