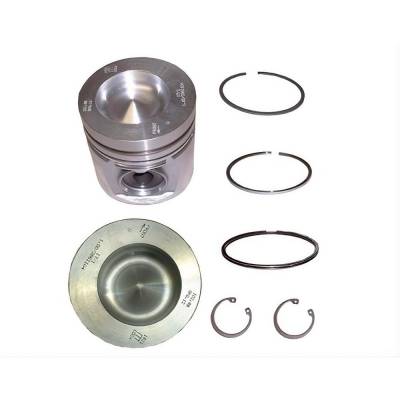

103.0Mm Steel Engine Piston Compatible With Case Ih 1640/1644 Combine B Series 1986-2000 5.9L

OEM PART NUMBERS:
• Cummins: 3907158 (1.00mm oversize piston - 16.5:1 CR non-emission turbo)
• Cummins: 3907156 (Standard bore variant - same 16.5:1 CR family)
• Cummins: 3908815 (0.50mm oversize variant - same 16.5:1 CR family)
• Cummins: 3802565 (1.00mm oversize piston kit number)

SPECIFICATIONS:
• Bore Diameter: 103.0mm (4.055")
• Stroke: 120.0mm (4.72")
• Compression Height: 71.56mm
• Pin Diameter: 40.0mm
• Ring Grooves: 3
• Size: 1.00mm Oversize
• Engine: B Series 5.9L
• Cylinders: 6
• Condition: New

APPLICATION:
• Case IH Tractors 2096/5120/5220 (1987-1997)
• Case IH Combines 1640/1644 (1986-1996)
• Case Excavators 9010B/9020/9020B (1990-2000)
• Dodge Trucks Ram 2500/Ram 3500 (1989-1998)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
