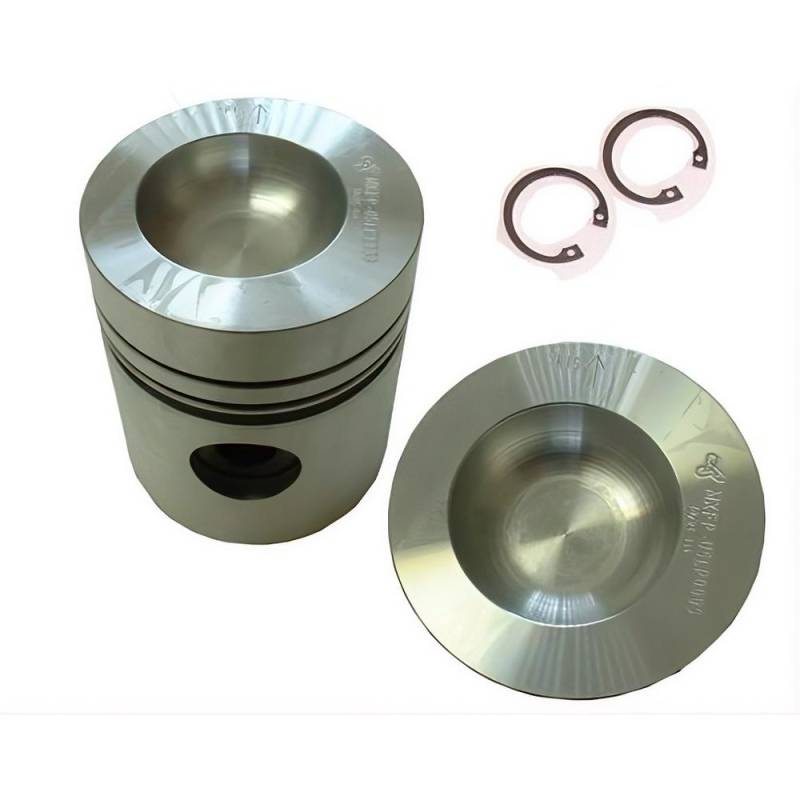

100.96Mm Engine Piston Compatible With Massey Ferguson 275/283/290/294/383/390/394/690/194/ 3060

OEM PART NUMBERS:
• Perkins: U5LP0009 (Current piston kit number)
• Perkins: U5L0009 (Earlier variant)
• Perkins: U5LH0013 (Cross-reference)
• Massey Ferguson: 3637757M91 (MF cross-reference)
• Massey Ferguson: 747050M91 (MF cross-reference)
• Massey Ferguson: 747050V91 (MF cross-reference)
• Massey Ferguson: 747080M91 (MF cross-reference)

SPECIFICATIONS:
• Bore Diameter: 100.96mm (3.975")
• Stroke: 127.0mm (5.0")
• Compression Height: 70.5mm
• Pin Diameter: 35.0mm
• Ring Grooves: 3
• Size: Standard
• Engine: 4.248 4.06L
• Cylinders: 4
• Condition: New

APPLICATION:
• Massey Ferguson Tractors 275/283/290/294 (1977-1990)
• Massey Ferguson Tractors 383/390/394 (1986-1997)
• Massey Ferguson Tractors 690 (1982-1990)
• Massey Ferguson Tractors 194 (1984-1990)
• Massey Ferguson Tractors 3060 (1986-1992)
• Massey Ferguson Industrials 816/816B/840 (1980-1990)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
