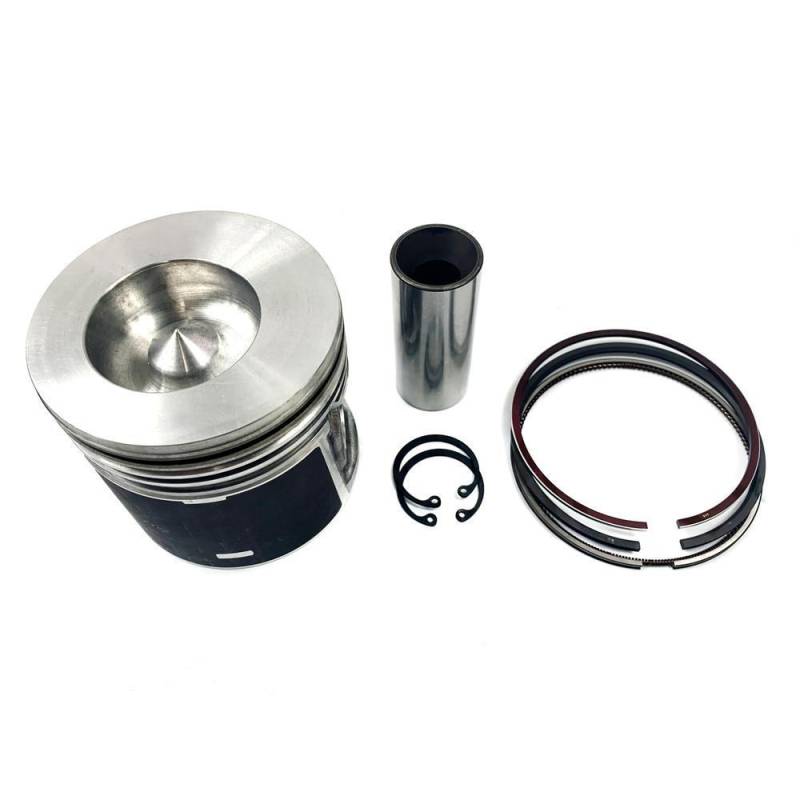

86.0Mm Piston With Rings Compatible With John Deere 4520/4720 Compact Tractor 4024Hf/5030Hf 2.4L

OEM PART NUMBERS:
• John Deere: RE536353 (Current standard bore piston with rings - 4024HF/5030HF Tier 3)
• John Deere: RE522094 (Superseded by RE536353 - earlier standard bore piston)
• John Deere: RE527622 (Standard bore piston (without rings) - 4024HF Tier 3)

SPECIFICATIONS:
• Bore Diameter: 86.0mm (3.386")
• Stroke: 105.0mm (4.134")
• Pin Diameter: 30.0mm
• Ring Grooves: 3
• Size: Standard
• Engine: 4024HF/5030HF 2.4L
• Cylinders: 4
• Condition: New

APPLICATION:
• John Deere Skid Steer Loaders 318D/319D/320D/323D (2010-2014)
• John Deere Skid Steer Loaders 326D/328D/329D/332D/333D (2010-2014)
• John Deere Skid Steer Loaders 324J (2008-2012)
• John Deere Compact Tractors 4520/4720 (2008-2013)
• John Deere Tractors 5065M/5075M (2008-2013)
• John Deere Wheel Loaders 244J (2007-2012)
• John Deere Wheel Loaders 304J (2007-2012)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
