106.5Mm Steel Engine Piston Compatible With John Deere

OEM PART NUMBERS:
• John Deere: RE521616 (Current piston - 4045T/H and 6068T/H Tier 2/3)

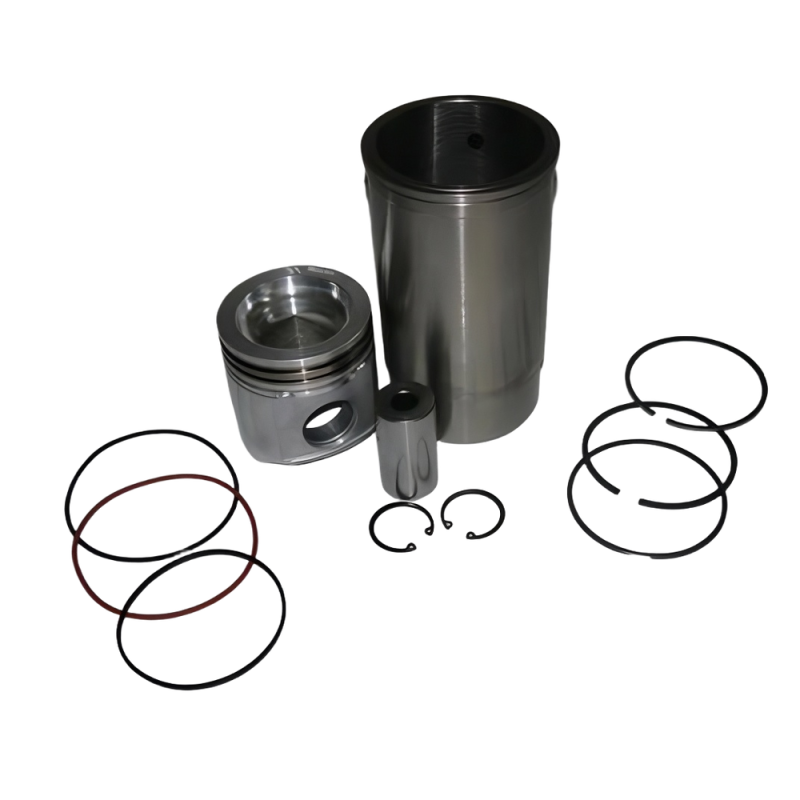

• John Deere: RE524450 (Cylinder kit containing piston RE521616)
• John Deere: AR65507 (Cross-reference / earlier piston number)
• John Deere: R116397 (Cross-reference / earlier piston number)

SPECIFICATIONS:
• Bore Diameter: 106.5mm (4.19")
• Stroke: 127.0mm (5.0")
• Pin Diameter: 41.28mm
• Ring Grooves: 3
• Size: Standard
• Engine: 4045T/H / 6068T/H PowerTech 6.8L
• Cylinders: 6
• Condition: New

APPLICATION:
• John Deere Tractors 6520/6620/6820/6920 (2002-2007)
• John Deere Tractors 7530/7630/7730/7830/7930 (2006-2013)
• John Deere Tractors 7195J/7210J/7225J (2011-2015)
• John Deere Combines 1450CWS/1450WTS/1550CWS/1550WTS (2003-2010)
• John Deere Combines 9560 STS/9570 STS/S550 (2004-2014)
• John Deere Sprayers 4730/4830/5430i (2004-2012)
• John Deere Constructions 640H/644J/644K (2001-2013)
• John Deere Constructions 764 (2001-2006)
• John Deere Constructions 330C LC/330LC/370C (2001-2006)
• John Deere Constructions 670G/670GP/672G/672GP (2006-2014)
• John Deere Constructions 848H/850G (2006-2013)
• John Deere Forestrys 1170E/1270D/1470D (2005-2012)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
