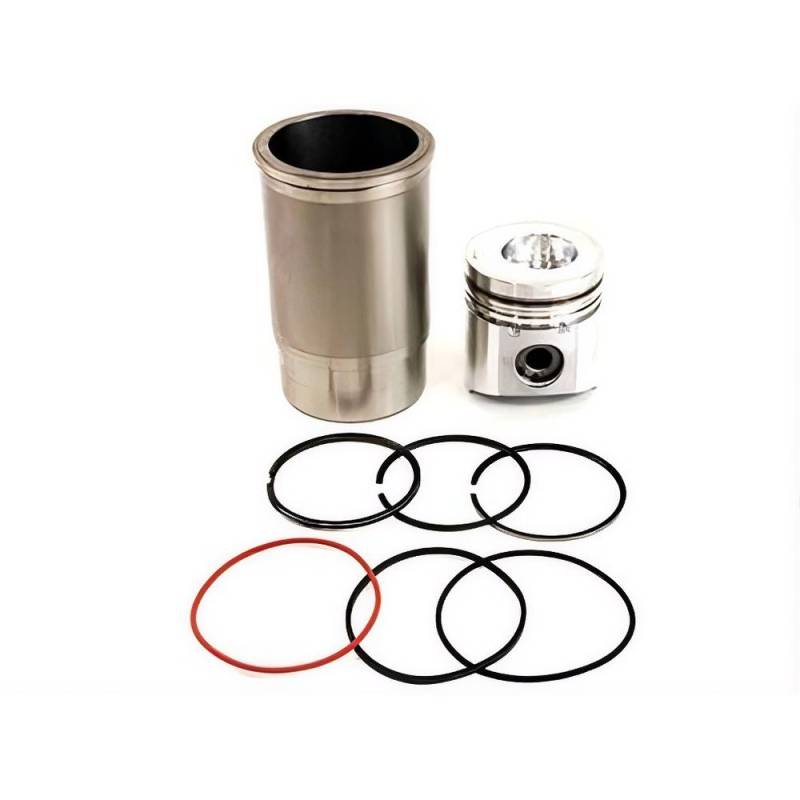

102.0Mm Piston With Pin Compatible With John Deere

OEM PART NUMBERS:
• John Deere: AR77762 (Current part number - Standard with pin)
• John Deere: AR55984 (Earlier part number - superseded by AR77762)
• John Deere: AR87736 (Cross-reference part number)

SPECIFICATIONS:
• Bore Diameter: 102.0mm (4.016")
• Stroke: 110.0mm (4.33")
• Compression Height: 66.3mm
• Pin Diameter: 34.925mm
• Ring Grooves: 3
• Size: Standard
• Engine: 300 Series
• Condition: New

APPLICATION:
• John Deere Tractors 830/1020/1120/1520/1530 (1965-1979)
• John Deere Tractors 2020/2030/2040/2440 (1965-1982)
• John Deere Tractors 2510/2520/2840/4030 (1965-1982)
• John Deere Combines 4400/4420/6600 (1970-1985)
• John Deere Backhoe Loaders 300B-410 Series
• John Deere Industrials 401B/401C/401D/440/440A
• John Deere Wheel Loaders 444/544/544A

PRODUCT NOTICE:
