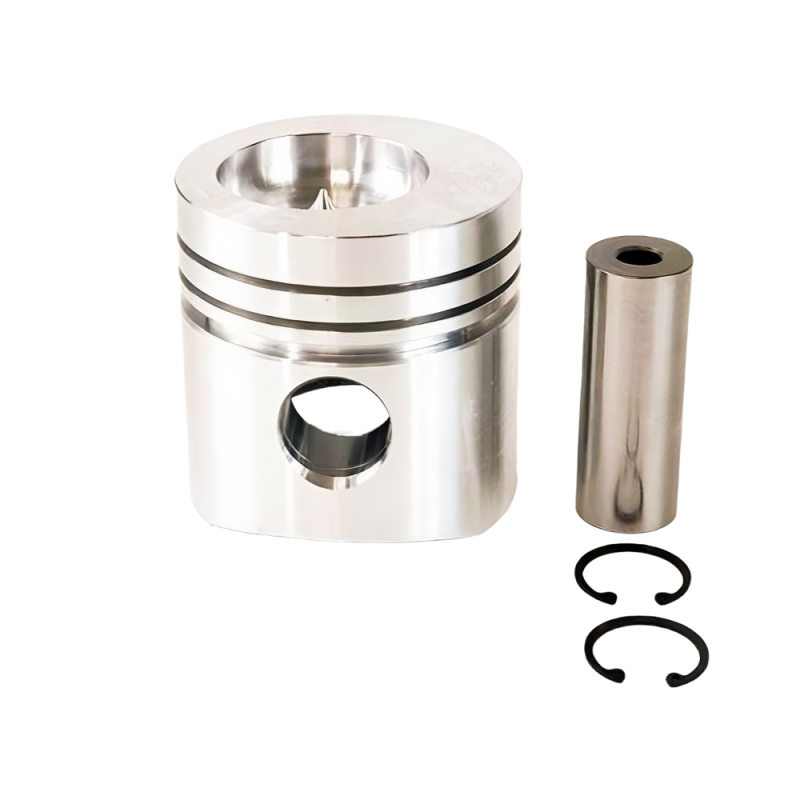

91.48Mm Piston With Pin Compatible With John Deere 1020/1030/820/830 Tractor Jd 300 Series 2.5L

OEM PART NUMBERS:
• John Deere: T23481 (Current part number - standard bore with pin)
• John Deere: AR70633 (Earlier piston ring set reference)
• John Deere: AR51902 (Earlier piston kit reference)

SPECIFICATIONS:
• Bore Diameter: 91.48mm (3.602")
• Stroke: 127.0mm (5.0")
• Pin Diameter: 30.1mm
• Ring Grooves: 3
• Size: Standard
• Engine: JD 300 Series 2.5L
• Cylinders: 3
• Condition: New

APPLICATION:
• John Deere Tractors 1020/1030/820/830 (1965-1975)
• John Deere Industrials 300/300A/300B/301/301A (1968-1980)
• John Deere Industrials 350/350A/350B/350C/380 (1968-1980)
• John Deere Industrials 400/440/450/540 (1968-1978)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
