New Marine Oil Feed Pump Compatible With 1986-2010 Yamaha V4 115Hp 130Hp 3.544 Bore 2-Stroke

OIL FEED / TRANSFER PUMP — YAMAHA REMOTE OIL TANK TO OUTBOARD:

YAMAHA OIL FEED PUMP ASSEMBLY (1986-2015) — 29 YEARS:

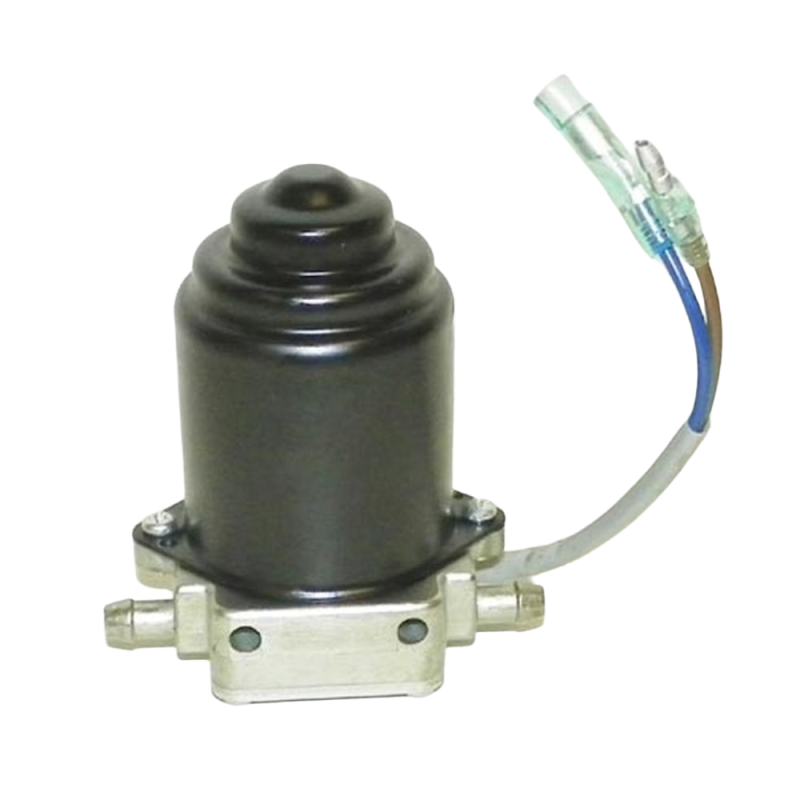

Per Yamaha documentation and Crowley Marine, OEM 6E5-81900-01-00 is the Oil Feed Pump Assembly (Motor Pump Assembly) — the electric pump that transfers oil from the Yamaha remote oil tank to the outboard's main oil reservoir. Used across Yamaha 2-stroke V4 and V6 outboards from 1986 through 2015 including HPDI, OX66, Z-series, LZ-series, and LX-series performance variants.

YAMAHA V4 OUTBOARD APPLICATIONS (3.544 BORE):
• Yamaha 115 HP V4 3.544 Bore 2-Stroke Outboard (1986-2010)
• Yamaha 115 HP V4 3.544 Bore 2-Stroke Outboard (2004-2010)
• Yamaha 130 HP V4 3.544 Bore 2-Stroke Outboard (1989-2004)

YAMAHA V6 90-DEGREE OUTBOARD APPLICATIONS (3.544 BORE):
• Yamaha 150 HP V6 3.544 Bore 2-Stroke Outboard (1986-2010)
• Yamaha 175 HP V6 3.544 Bore 2-Stroke Outboard (1986-2000)
• Yamaha 200 HP V6 90-Degree 3.544 Bore 2-Stroke Outboard (1988-1999)
• Yamaha 225 HP V6 90-Degree 3.544 Bore 2-Stroke Outboard (1990-1997)

YAMAHA V6 76-DEGREE OUTBOARD APPLICATIONS (3.544 BORE):
• Yamaha 200 HP V6 76-Degree 2-Stroke Outboard (1999-2005)
• Yamaha 225 HP V6 76-Degree 2-Stroke Outboard (1998-2004)
• Yamaha 250 HP V6 76-Degree 2-Stroke Outboard / OX66 (1995-2004)

YAMAHA V6 HPDI 2.6L OUTBOARD APPLICATIONS (3.544 BORE):
• Yamaha 150 HP V6 2.6L HPDI Outboard / Z150 (2001-2015)
• Yamaha 175 HP V6 2.6L HPDI Outboard / Z175 (2001-2012)

YAMAHA V6 HPDI 3.3L OUTBOARD APPLICATIONS (3.660 BORE):
• Yamaha 200 HP V6 3.3L HPDI Outboard / Z200 (2001-2012)
• Yamaha 225 HP V6 3.3L HPDI Outboard / Z225 (2003-2009)
• Yamaha 250 HP V6 3.3L HPDI Outboard / Z250 (2003-2008)
• Yamaha 300 HP V6 3.3L HPDI Outboard / Z300 (2004-2010)

YAMAHA Z/LZ/LX SERIES PERFORMANCE VARIANTS:
• Z150, Z175, Z200, Z250, Z300 HPDI Models
• LZ150, LZ200, LZ250, LZ300 (Counter-Rotation HPDI)
• LX150, LX200, LX225, LX250 (Long-Shaft Performance)

OIL FEED PUMP SPECIFICATIONS:
• Type: Electric Oil Transfer / Feed Pump Assembly
• Voltage: 12V DC
• Function: Transfers Oil from Remote Oil Tank to Outboard Main Reservoir
• Mounting: Installs into Side of Yamaha Remote Oil Tank
• Compatibility: ALL Yamaha Remote Oil Tank Systems
• Included In Remote 2.8 Gallon Oil Tank Kit 6YR-W0035-94-00
• Engine Compatibility: Yamaha V4/V6 2-Stroke Outboards 1986-2015

FUNCTIONAL APPLICATION — REMOTE OIL TANK SYSTEM:
Per Yamaha and Offshore Marine: This pump fits into the side of the Yamaha remote oil tank and feeds oil from the remote tank to the outboard's main oil reservoir. It is the electric pump component of the Yamaha PrecisionBlend oil delivery system. When the main oil reservoir on the outboard runs low, this pump transfers oil from the larger remote tank (typically 2.8 gallons) through oil lines to the outboard. Failure of this pump causes the outboard's oil reservoir to run dry, triggering low-oil warnings and risking oil starvation if the warning is ignored.

SERVICE WHEN:
• Low Oil Warnings on Yamaha 2-Stroke Outboard
• Pump Not Operating (No Oil Transfer from Remote Tank)
• Burned-Out Pump Motor (12V Test Shows No Operation)
• Routine Inspection on High-Hour Yamaha 2-Strokes
• Remote Oil Tank Service / Cleaning
• Yamaha PrecisionBlend System Service

FITMENT NOTE:
This is an OEM-spec replacement Oil Feed/Transfer Pump for Yamaha 6E5-81900-01-00. ALWAYS verify the OEM part number from your Yamaha service manual or parts diagram before ordering. Per Offshore Marine: "Works with all Yamaha remote oil tanks" — but verify your specific application by OEM part number for exact fitment. Easy 12V test: apply direct 12V to the pump leads to confirm the existing pump is failed before ordering replacement.
