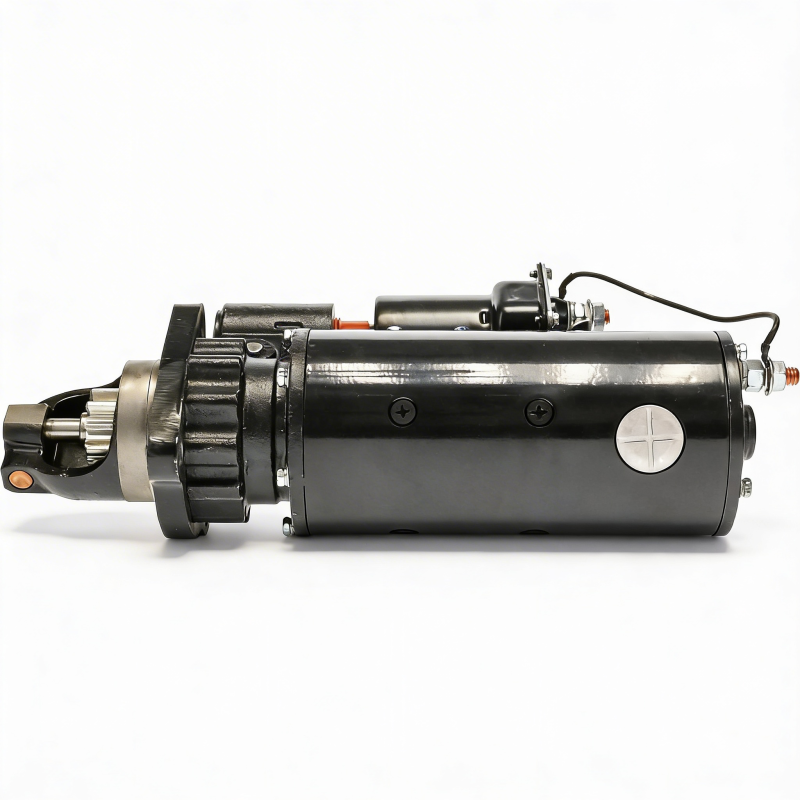

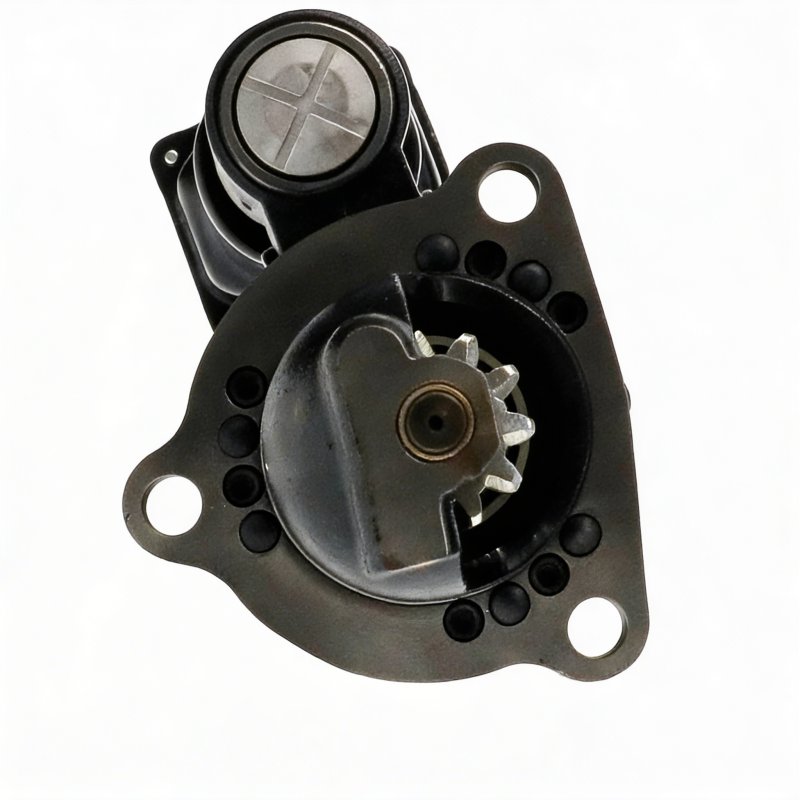

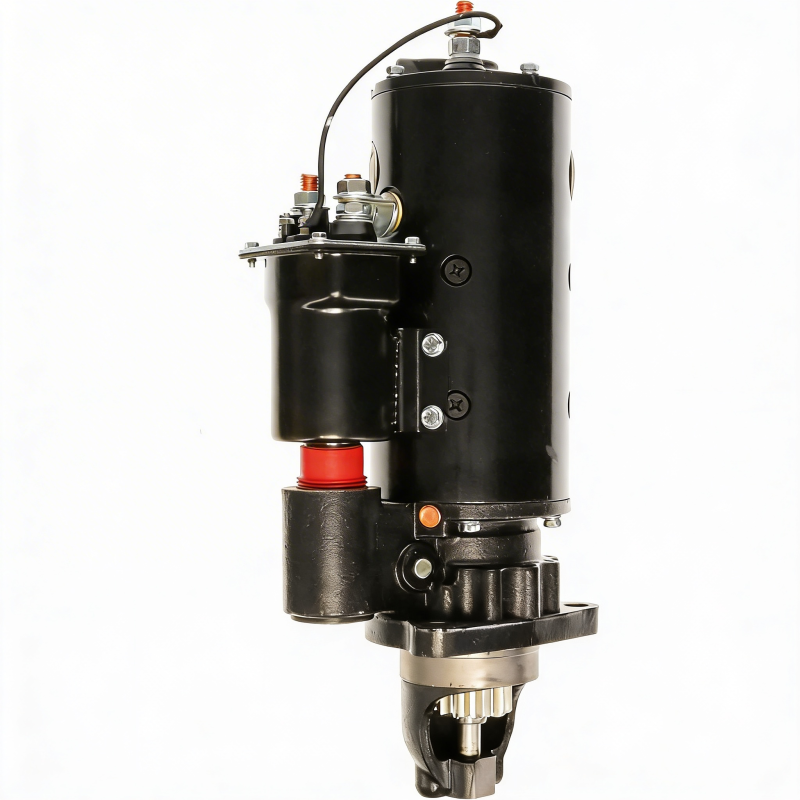

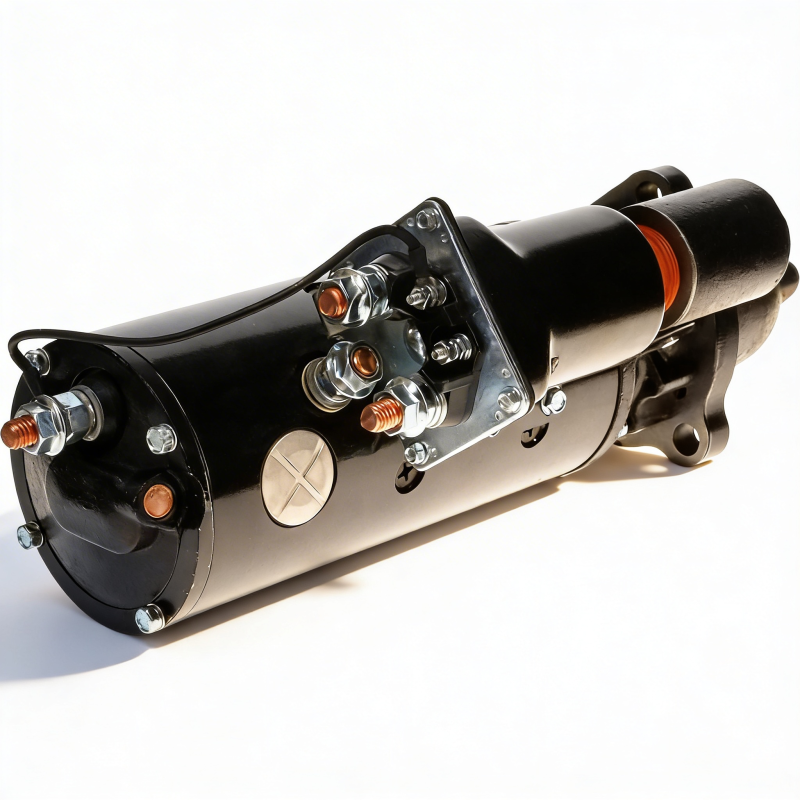

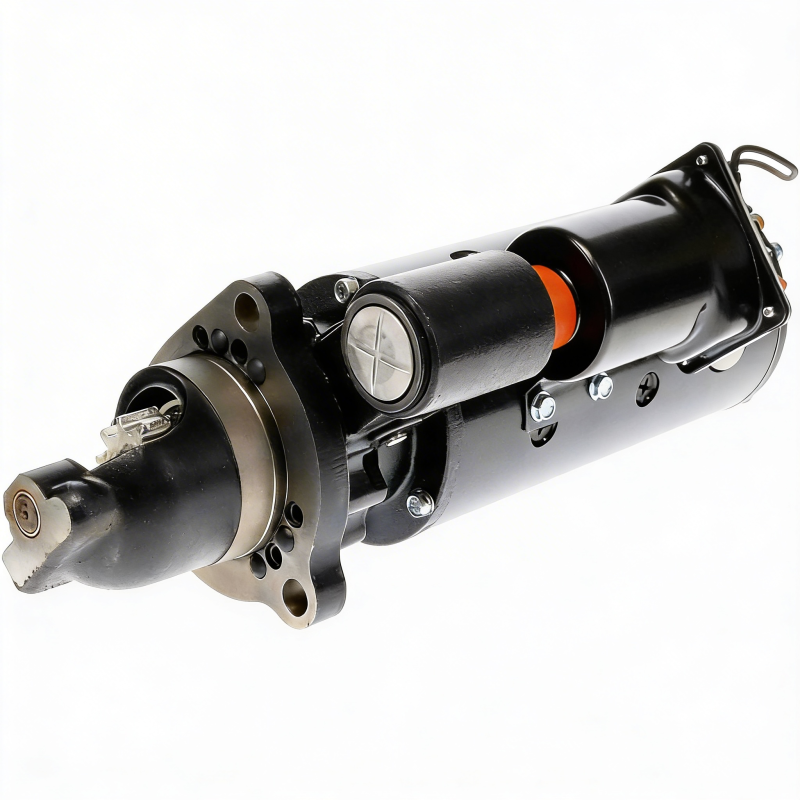

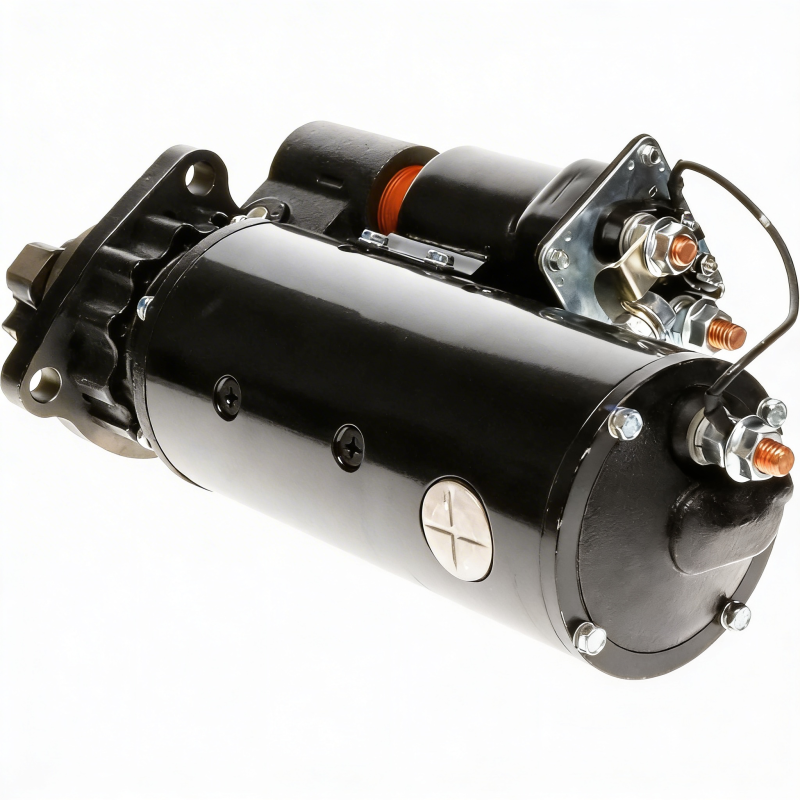

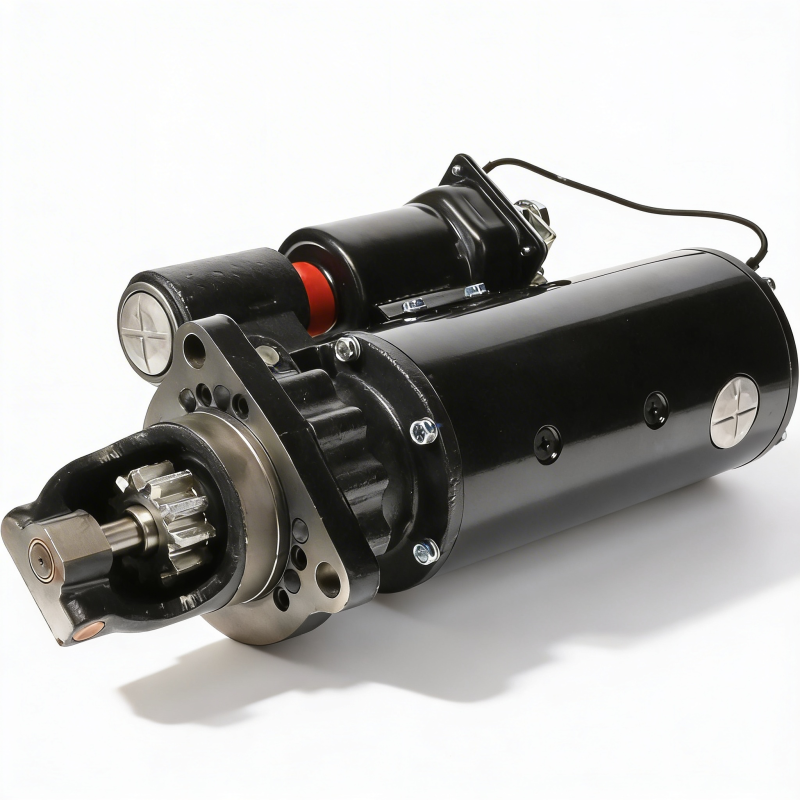

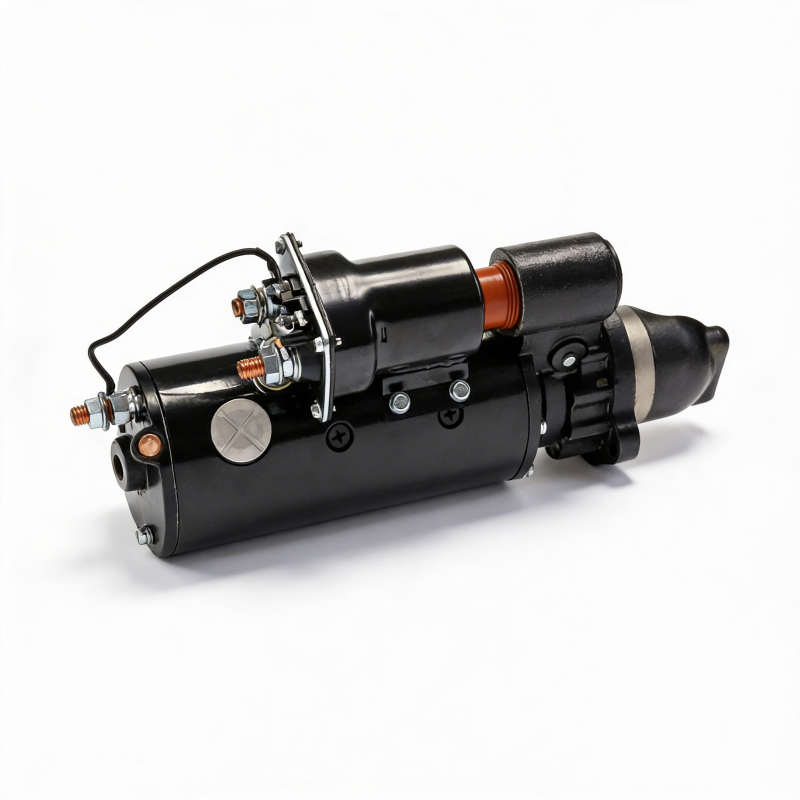

Starter Motor Compatible With Caterpillar Marine 3406 14.6L 3408 18.0L 3412 27.0L Cummins C Series

OEM PART NUMBERS:
• Delco: 1114106 / 1114097 / 1114059 / 1114702
• Delco: 1114808 / 1990212 / 1114063 / 1114080
• Delco: 1114930
• Dixie: TS-1190 (TS1190)

SPECIFICATIONS:
• Voltage: 12V
• Type: DD (Direct Drive)
• Family: Delco 40MT
• Rotation: CCW (Counterclockwise)
• Tooth Count: 11
• Power: 7.8kW / 10.45 HP
• Gear OD: 2.22 in / 56.4mm
• Solenoid Position: 38 Degrees
• Mounting Ears: 16.0mm Unthreaded (x3)
• Weight: 66 lbs / 30 kg
• Condition: New

APPLICATION:
• Caterpillar Marine 3406/3408/3412 (1985-1995)
• Cummins C Series 8.3L / V Series 9.1L (1983-1988)
• Detroit Diesel 8V-71 Industrial / Marine
• Waukesha Industrial Engines

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
