New Permanent Magnet Dc Motor Compatible With Industrial Hydraulic Power Units Power Unit By Part

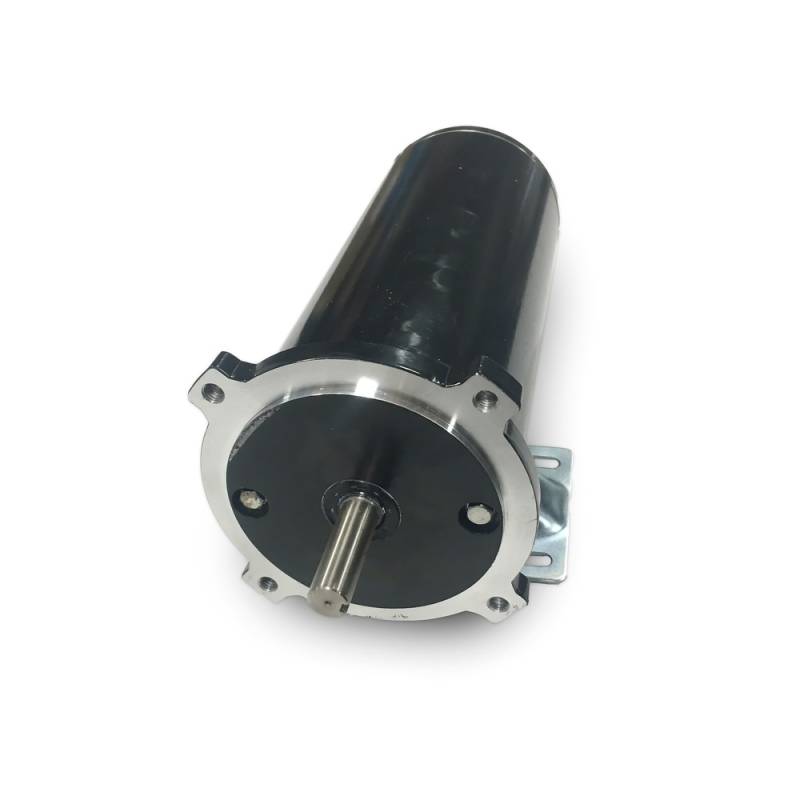

PRODUCT TYPE: PERMANENT MAGNET DC MOTOR

SPECIFICATIONS:
MODEL: 50078
CONDITION: NEW
TYPE: PERMANENT MAGNET DC MOTOR
ELECTRICAL SPECS: 24V DC / 41.1 FULL LOAD AMPS.
HORSEPOWER: 1 HP.
SPEED: 1800 RPM.
TORQUE: 2.92 LB-FT
SERVICE FACTOR: 1.0.
ROTATION: BI-ROTATIONAL / REVERSIBLE.
FRAME: NEMA 56C WITH REMOVABLE BASE.
ENCLOSURE: TEFC (TOTALLY ENCLOSED FAN-COOLED).
SHAFT DIAMETER: 0.625 IN (5/8”).
SHAFT LENGTH: 2.06 IN.
SHAFT STYLE: KEYED
BEARINGS: SEALED BALL.
INSULATION CLASS: CLASS F.
DUTY CYCLE: CONTINUOUS.
IP RATING: IP54.

REPLACES:
OEM: LEESON, WORLDWIDE ELECTRIC
OEM INTERCHANGE PART NUMBERS: WPMDC1-18-24V-56CB 108053
