Carburetor Rebuild Kit Compatible With Polaris Scrambler 50 2001-2002 49.3Cc Air-Cooled 2-Stroke

OEM PART NUMBERS:
• Polaris: 0450115 (Carburetor Repair Kit)
• Polaris: 450095 (Float Chamber Seal)
• Polaris: 450931 (Carburetor Assembly Reference)

SPECIFICATIONS:
• Engine: 49.3cc Air-Cooled 2-Stroke Horizontal Single Cylinder
• Bore x Stroke: 40.0mm x 39.2mm
• Compression Ratio: 6.8:1
• Carburetor: Sunworld H68K
• Main Jet: #75
• Fuel System: Gravity Feed
• Starting: Electric with Kick-Start Backup
• Max Torque: 4 ft-lbs (5.4 Nm) at 6000 RPM
• Spark Plug: NGK BPR7HS
• Transmission: Automatic CVT
• Final Drive: Chain (428 x 130 Links)

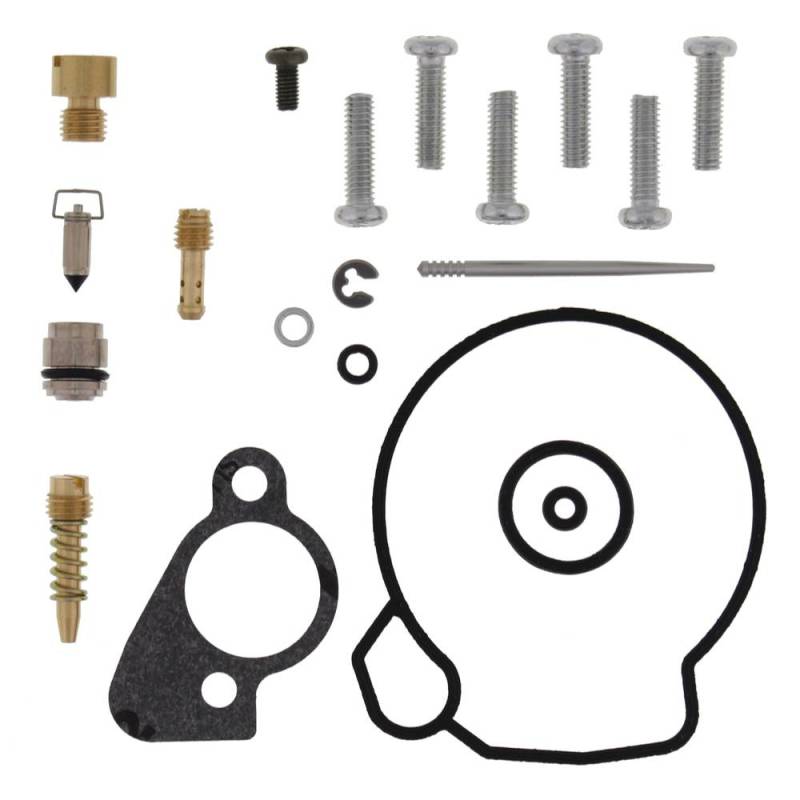

KIT INCLUDES:
• (1) Float Chamber Gasket
• (1) Top Carburetor Cover Gasket
• (1) Needle Jet
• (1) Spring
• (1) Small Flat Washer
• (1) E-Clip
• (3) O-Rings
• (1) Small Pan Head Bolt
• (6) 8-32 x 1/2 Inch Pan Head Bolts
• (1) Valve Needle Set
• (1) Needle Nozzle
• (1) Jet #75 (Main Jet)
• (1) Throttle Set Screw

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
