OEM CROSS-REFERENCE PART NUMBERS:
• Carlisle: 518186 (Straight Rib 4-Ply)
• Dixie Chopper: 97165 (LT/X Series Front Caster OEM)
• Hustler: 747741 (Z / Super Z Front Caster OEM)
• Exmark: 103-0069 / 103-0065 / 103-3797 (Lazer Z Caster OEM)
• Toro: 103-0065 / 109-9127 / 127-9528 (Z Master Caster OEM)
• Scag: 482504 / 483050 / 9278 (Turf Tiger/Tiger Cat OEM)
• Bad Boy: 022-2017-00 / 022-5347-00 (Lightning Z/CZT OEM)
• John Deere: M123503 / AUC12143 (Z-Track Caster OEM)
• Cub Cadet: 634Z05884 (ZT2 Front Caster OEM)
• Ariens/Gravely: 07101226 (Front Caster OEM)
• Oregon: 70-409 (Cross Reference)
• Rotary: 10430 (Cross Reference)
• R&R Products: RCT5181861 (Cross Reference)
• Sunbelt: B1TI28 (Cross Reference)
• Stens: 165-289 (Cross Reference)

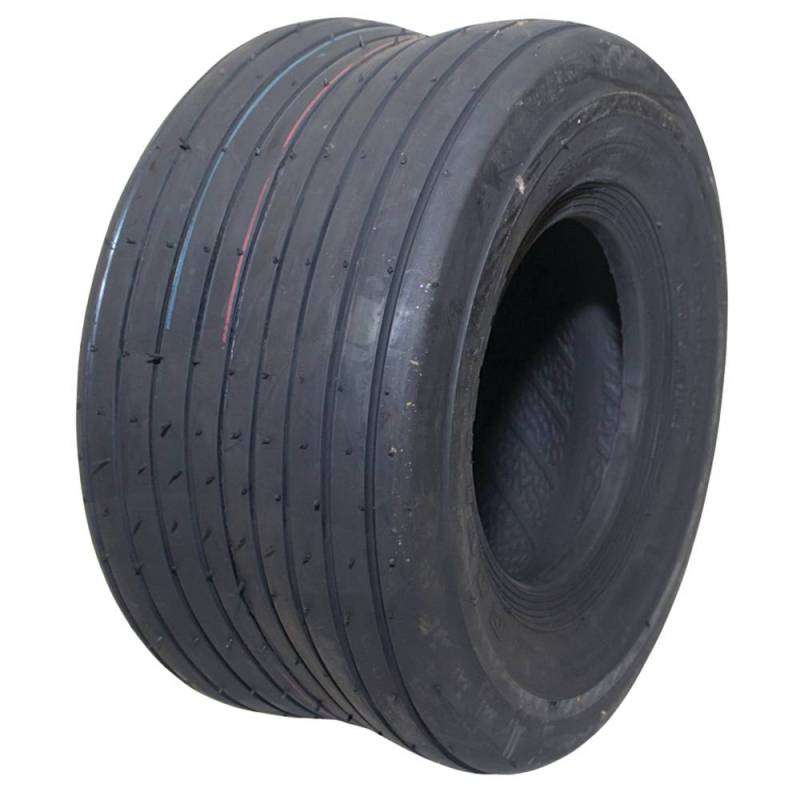

TIRE SPECIFICATIONS:
• Size: 13x6.50-6
• Tread Pattern: Straight Rib (Continuous Circumferential)
• Ply Rating: 4-Ply (Load Range B)
• Type: Tubeless
• Overall Diameter: 13.0 Inches
• Section Width: 6.50 Inches
• Rim Diameter: 6 Inches
• Rim Width: 4.50 Inches
• Tread Depth: 5mm
• Maximum Load: 480 lbs at 28 PSI
• Maximum PSI: 28
• Weight: Approx 4 lbs
• Speed Rating: A3 (9 mph Maximum)
• Service: NHS (Non-Highway)
• Construction: Bias Ply Tubeless
• Condition: New
APPLICATIONS:
• Dixie Chopper LT / X Series Front Caster
• Hustler Z / Super Z / FasTrak Front Caster
• Exmark Lazer Z / Toro Z Master Front Caster
• Scag Turf Tiger / Tiger Cat / Cheetah Front Caster
• Zero Turn Mower Front Caster Tire
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
