OEM CROSS-REFERENCE PART NUMBERS:
• Carlisle: 511116 (Turf Saver 4-Ply)
• Toro: 139-5849 (TimeCutter 54 and 60 Inch OEM)
• Toro: 133-9278 (Wheel and Tire Assembly OEM)
• Hustler: 600668 (TrimStar 54 and 60 Inch OEM)
• Ariens/Gravely: 07100215 (Zero Turn OEM)
• Country Clipper: D3353 (Boulevard 48 Inch OEM)
• Rotary: 7031 (Cross Reference)
• R&R Products: RCT511116 (Cross Reference)
• Stens: 165-260 (Cross Reference)

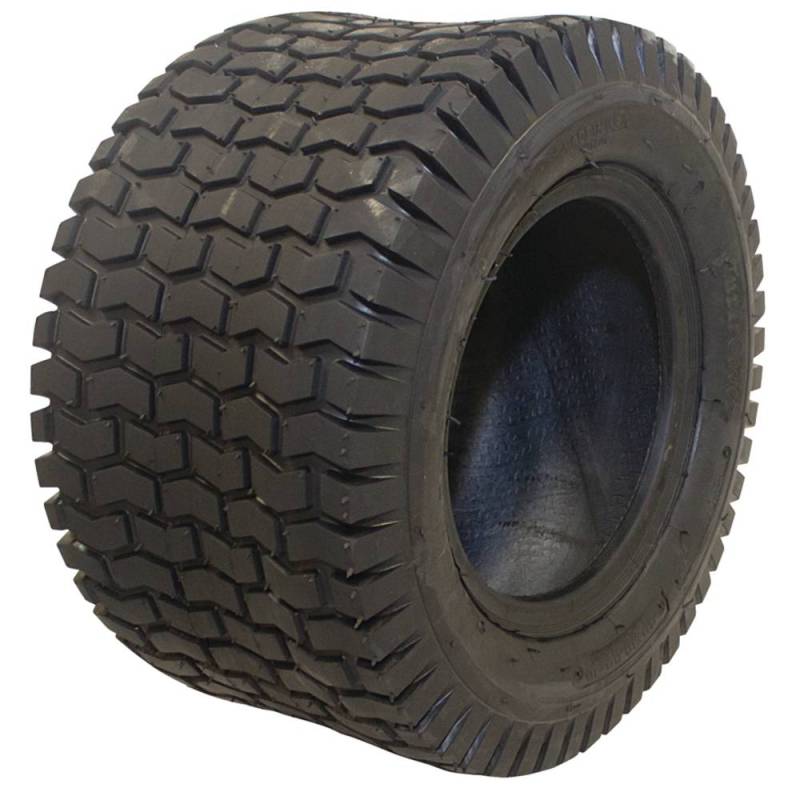

TIRE SPECIFICATIONS:
• Size: 20x10.00-10
• Tread Pattern: Turf Saver (Flat Profile Chevron)
• Ply Rating: 4-Ply (Load Range B)
• Type: Tubeless
• Overall Diameter: 20.0 Inches
• Section Width: 9.5 Inches
• Rim Diameter: 10 Inches
• Rim Width: 8.0 Inches
• Tread Depth: 7/32 Inch
• Maximum Load: 1225 lbs at 24 PSI
• Maximum PSI: 24
• Weight: Approx 23 lbs
• Service: NHS (Non-Highway)
• Construction: Bias Ply Tubeless
• Condition: New
APPLICATIONS:
• Toro TimeCutter 54-60 Inch Zero Turn Mowers
• Hustler TrimStar / Fastrak XD / Raptor XD
• Ariens Apex / Zenith / Gravely ZT XL / HD
• Scag Freedom Z / Liberty Zero Turn Mowers
• Commercial Zero Turn Mower Rear Drive Tire
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
