OEM CROSS-REFERENCE PART NUMBERS:
• Carlisle: 511408 / 5114081 (Turf Master 4-Ply)
• John Deere: M119692 (Lawn & Garden Tractor OEM)
• Scag: 481660 (Turf Tiger 52 Inch OEM)
• Kubota: K3271-17200 (ZG222 / ZG227 Zero Turn OEM)
• Ariens/Gravely: 07101116 (Pro-Turn Wheel/Tire Assembly)
• Exmark: 109-3339 / 146-1390 (Tire & Wheel Assembly)
• Rotary: 9190 (Cross Reference)
• Oregon: 66-209 (Cross Reference)
• Hi-Run: WD1044 (Cross Reference)
• Wright: 72410052 (Stander Zero Turn OEM)
• Cub Cadet: 734-05116-0901 (OEM)
• Stens: 165-400 (Cross Reference)

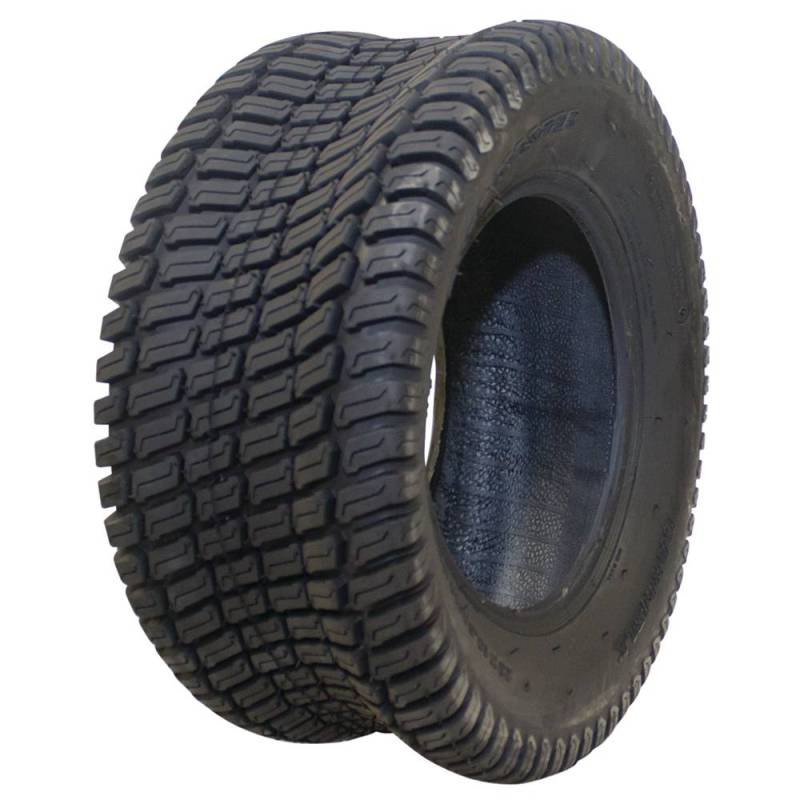

TIRE SPECIFICATIONS:
• Size: 23x10.50-12
• Tread Pattern: Turf Master (Deep Lug Contoured Shoulder)
• Ply Rating: 4-Ply (Load Range B)
• Type: Tubeless
• Overall Diameter: 22.8 Inches
• Section Width: 10.00 Inches
• Rim Diameter: 12 Inches
• Rim Width: 8.50 Inches
• Tread Depth: 11/32 Inch
• Maximum Load: 1390 lbs at 20 PSI
• Maximum PSI: 20
• Weight: Approx 17.3 lbs
• Load Index: 92A3
• Service: NHS (Non-Highway)
• Condition: New
APPLICATIONS:
• John Deere 240-345 / GX325-GX355 / 1420-1445 / F910-F930
• Ferris ISZ 52 / 61 Inch Zero Turn Mower
• Grasshopper ZTR 320 Series 52 / 61 / 72 Inch
• Scag Turf Tiger 52 Inch / Kubota ZG222 / ZG227
• Ariens/Gravely Pro-Turn 100 / Wright Stander / Cub Cadet
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
