OEM PART NUMBERS:
• Case IH / International Harvester: 63864C91 / 63864C92 / 63864C93
• Case IH: 64519C91
• Hy-Capacity: HH63864
SPECIFICATIONS:

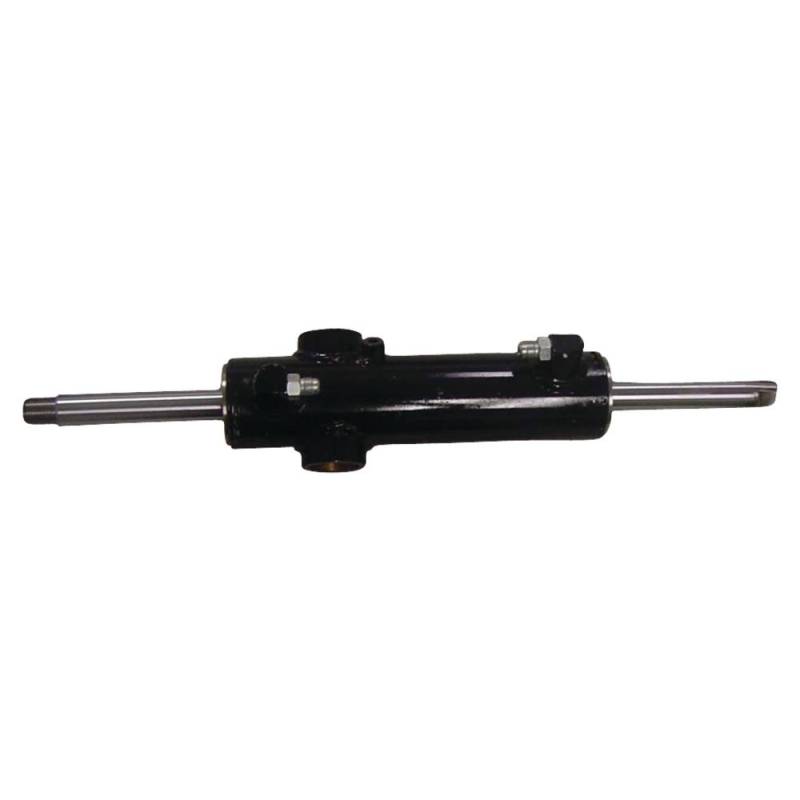

• Type: Power Steering Cylinder (Late Production)
• Bore Diameter: 2.75"
• Rod Diameter (OD): 1"
• Body Length: 11.5"
• Rod Travel: 8" (full left and right stroke)
• Trunnion to Cylinder Body End: 2-1/4"
• Shaft Type: Threaded stub shaft, right-hand side
• Tie Rod End Style: 71820C91
• Configuration: 2WD Standard Adjustable Tread Front Axle
• Weight: 14.3 lbs (6.5 kg)
• Condition: New
SUPERSESSION CHAIN:
• 63864C91 → 63864C92 → 63864C93 (current)
• Cross-reference: 64519C91
• Early production (NOT interchangeable): 533279R91 → 533279R92 → 533279R93 → 533279R94
SERIAL NUMBER RESTRICTIONS (Late Production Type):
• 766: After Serial Number 17394
• 966: After Serial Number 32806
• 1066: After Serial Number 58876
• 1466: After Serial Number 30726
• 1566: After Serial Number 13609
• 1568: After Serial Number 8021
• Hydro 100: After Serial Number 12695
• 1822: After Serial Number 12691
• 2022: Beginning Serial Number 13388
• 3088/3288/3688: Without All-Wheel Drive only
INTERNATIONAL HARVESTER 66 SERIES:
• 766, 966, 1066, 1466, 1468, 1566, 1568, Hydro 100 (1971-1978)
INTERNATIONAL HARVESTER 86 SERIES:
• 786, 886, 986, 1086, 1486, 1586, Hydro 186 (1976-1981)
INTERNATIONAL HARVESTER 88/50 SERIES:
• 3088, 3288, 3488 Hydro, 3688, 5088, 5288, 5488 (1981-1985)
CASE IH COTTON PICKERS:
• 1822, 2022 (1988-1995)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
