Additional Images

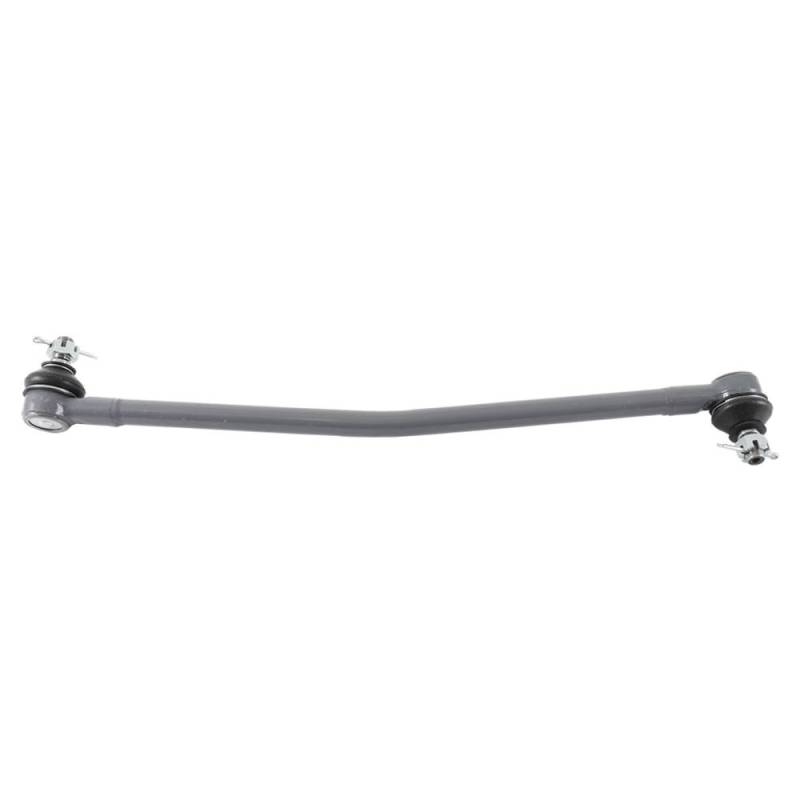

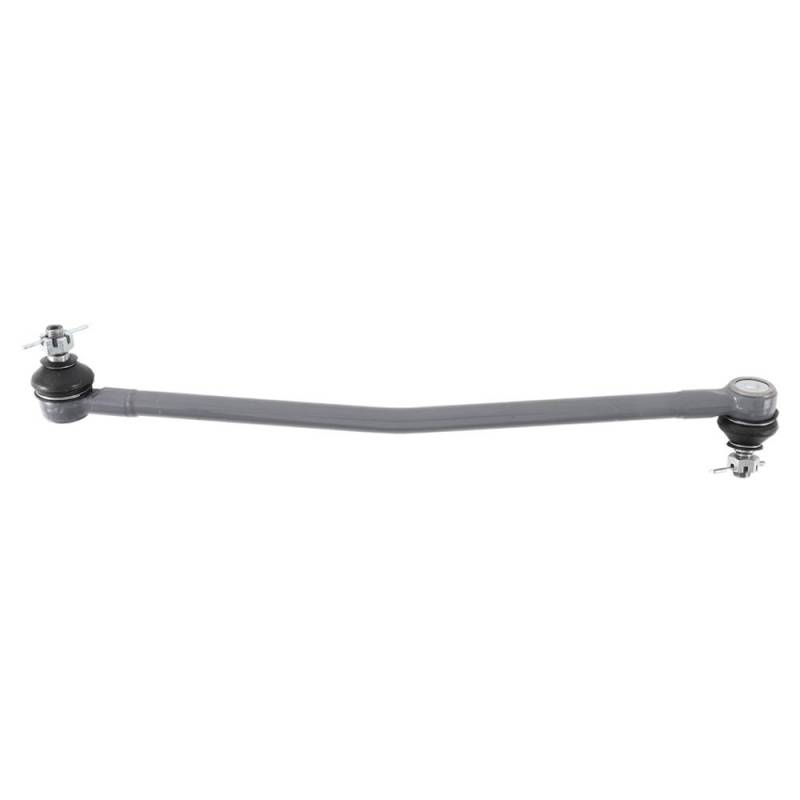

Tie Rod Assembly Left Hand Compatible With Kubota L2800dt L2800hst L3400dt L3410dt L3410hst L3700su

1904-0101A1
Kubota :
• TC220-13700 (Tie Rod Assembly — Left Hand — Steering — Current Part Number)
• TC22013700 (No-Dash Format)

:
• Stens 1904-0101 / Atlantic Quality Parts (Tie Rod Assembly)
• Complete Tractor 1904-0101 (Tie Rod — Kubota L-Series)
• DB Electrical (Tie Rod — Kubota TC220-13700)

Product Specifications:
• Type: Tie Rod Assembly — Steering
• Position: Left Hand
• Center to End: 10 5/8 Inches
• Overall Length: 21.50 Inches (546.10mm)
• Diameter: 3/4 Inch
• Dimensions: 22.10 x 4.40 x 1.80 Inches
• Weight: 4.30 lbs
• Mounting: Direct Bolt-On Replacement
• Function: Steering Tie Rod Assembly — Front Axle — Left Side
• Application: Kubota L-Series Compact Utility Tractors (L2800 / L3400 / L3410 / L3700SU)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $223.53
Sale: $127.73
Save: 43%
Save: $95.80
Qty:
Free Shipping!

Description

Kubota L-Series (D1403 Engine — 3-Cylinder 1.4L Diesel):
• L2800DT — 29 HP D1403 3-Cylinder 1.4L Diesel (2004-2007)
• Engine: Bore 80.0mm / Stroke 92.4mm / Displacement 1.396L
• Compression Ratio: 23.0:1 / Max Speed: 2800 RPM

Kubota L-Series (D1503 Engine — 3-Cylinder 1.5L Diesel):
• L2800HST — 30 HP D1503 3-Cylinder 1.5L Diesel (2008-2010)
• Engine: Bore 84.0mm / Stroke 91.0mm / Displacement 1.498L
• Compression Ratio: 23.0:1 / Max Speed: 2800 RPM

Kubota L-Series (D1703 Engine — 3-Cylinder 1.7L Diesel):
• L3400DT — 35 HP D1703 3-Cylinder 1.7L Diesel (2004-2010)
• Engine: Bore 87.0mm / Stroke 92.4mm / Displacement 1.647L
• Compression Ratio: 23.0:1 / Max Speed: 2700 RPM

Kubota L-Series (V1703 Engine — 3-Cylinder 1.6L Diesel):
• L3410DT / L3410HST — 35 HP V1703 3-Cylinder 1.6L Diesel (1998-2002)
• Engine: Bore 87.0mm / Stroke 92.4mm / Displacement 1.647L
• Compression Ratio: 23.0:1 / Max Speed: 2700 RPM

Kubota L-Series (D1803-M Engine — 3-Cylinder 1.8L Diesel):
• L3700SU — 37 HP D1803-M 3-Cylinder 1.8L Diesel (2010-2012)
• Engine: Bore 87.0mm / Stroke 102.4mm / Displacement 1.826L
• Compression Ratio: 23.0:1 / Max Speed: 2700 RPM

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 4.3 lbs.
  • W4.4000” x H1.8000” x L22.1000”
  • Free Shipping!
