OEM PART NUMBERS:
• Caterpillar: 7N7804 / 7N-7804
• 1894467
• 1974548
• Peterbilt: PAS1047-00W / PAS104700W
• Stens: 340-12026 / 34012026
• Stens: 340-12097 / 34012097
• Stens: 340-12026R / 34012026R
SPECIFICATIONS:

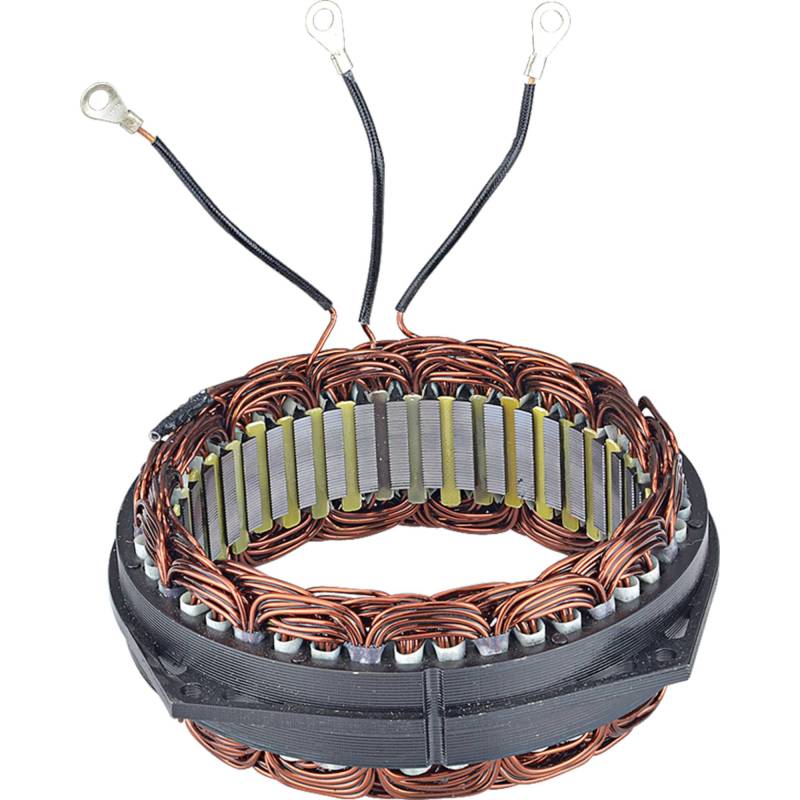

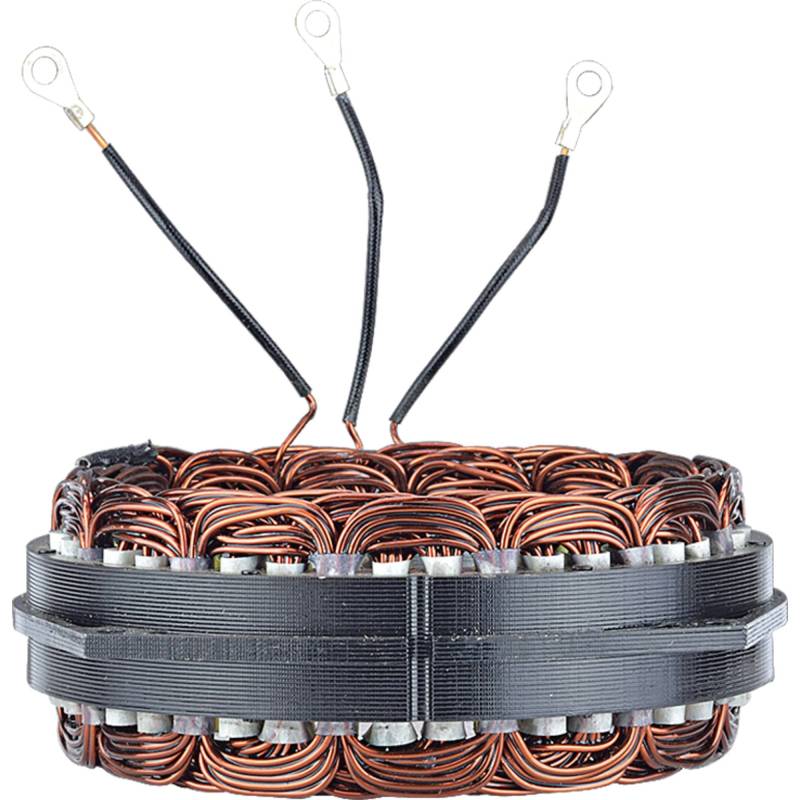

• Type: Alternator Stator (20SI Type)
• Voltage: 24V
• Amperage: 45A
• Lam Stack ID: 4.134" (105mm)
• Lam Stack OD: 5.319" (135.1mm)
• Lam Stack Thickness: 23.500mm (0.925")
• Lamination Type: Full Flanged
• Note: Does NOT include stator lead grommet
• Condition: New
APPLICATIONS:
• Caterpillar Motor Graders: 12H, 120H, 135H, 140H, 14H, 160H (NA variants)
• Caterpillar Heavy Equipment: 245B, 815B, 826C, SR4, SR4B
• Champion Motor Graders: 710, 710A, 720, 720A, 730, 730A, 740, 760, 780, 780A
• Cummins Engines: B-Series, C-Series, 855-Series, L-Series, V-Series
• International Harvester: Paystar, 2200-2275, 2674-2675 Series
• Peterbilt Heavy-Duty Trucks
