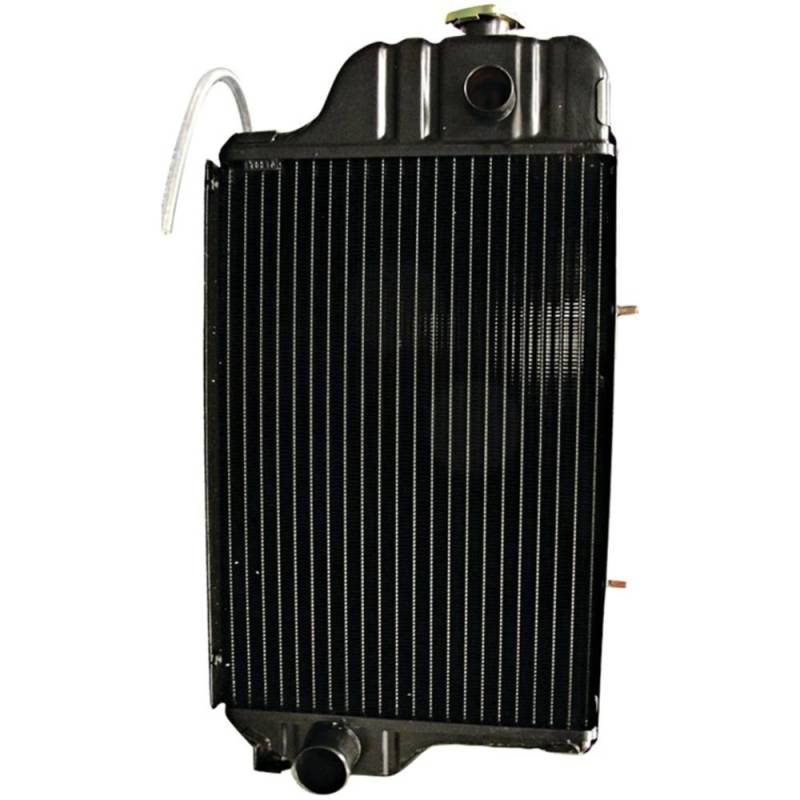

Radiator Compatible With 1965-2030 John Deere 1520 2020 2440 2630 2640 Utility Tractor 300B 301A 302

OEM Part Numbers:
• John Deere: AR65715 / AT28810 / AT20847 / AL25255

PART SPECIFICATIONS:
• Weight: 23 lbs
• Overall: 26-3/4" H x 14-1/4" W x 4-1/8" Thick
• Core: 20" H x 13-5/8" W x 3" Thick
• Construction: Copper Core / Brass Tanks
• Rows: 4
• Fins Per Inch: 8
• Upper Hose OD: 1-1/2"
• Lower Hose OD: 2"
• Neck Height: 3/4"
• Pressure Cap: Included (7 PSI)
• Oil Cooler: Not Integrated

SUPERSESSION CHAIN:
• AT20847 → AT28810 → AR65715 (Current)
• AL25255 (Alternate Designation)

SERIAL NUMBER RESTRICTIONS:
• 2440: SN Prior to 340999 ONLY
• 2640: SN Prior to 340999 ONLY
• SN 341000+ uses AR90945/AR90947

APPLICATION SUMMARY:
• Utility: 1520, 2020, 2030, 2440, 2630, 2640
• Industrial: 300B, 301A, 302, 302A, 400, 401, 401B, 401C, 480
