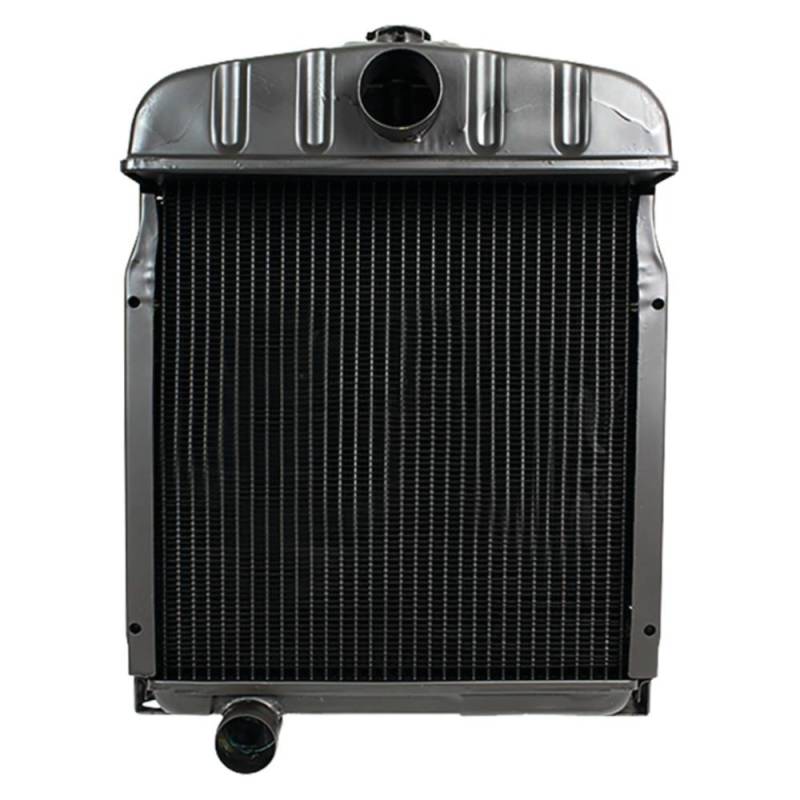

Radiator 3 Row 16 X 16.75 Inch Core Compatible With Farmall 140 International Harvester 140Hv

1706-6559A1
International Harvester :
• 369400R91 • 369400R92 • 369400R93 • 369400R94

Cross-Reference Numbers:
• 219756 • 219756-A
• 359756 • 359756-A
• 369400R94-A

Related Parts (Different Application):
• Farmall 100/130 uses 356356R94/R96 series — NOT Interchangeable
• Farmall 200/230/240 uses different radiator — NOT Interchangeable
• Farmall Cub uses 351878R93 series — NOT Interchangeable
• Farmall 300/350 uses 361704R93 series — NOT Interchangeable

Product Specifications:
• Type: 3-Row Radiator — Copper Core / Brass Tanks
• Core: 16" H × 16-3/4" W × 2" Thick
• Fins Per Inch: 6 FPI
• Overall: 22" H × 17-1/2" W
• Top Hose Connection OD: 2-3/8 inch
• Lower Hose Connection OD: 2 inch
• Neck Height: 3/4 inch
• Pressure Cap: NOT Included
• Engine: IH C-123 122.7ci (2.0L) 4-Cyl I-Head Gasoline
• Application: Farmall 140, 140HV (1958-1981)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $1,389.89
Sale: $794.22
Save: 43%
Save: $595.67
Qty:
Free Shipping!

Description

Farmall 140 (1958-1981):
• Farmall 140 — C-123 122.7ci (2.0L) 4-Cyl I-Head Gasoline — 21 HP at 1,400 RPM
• Nebraska Test: 23.02 HP (Belt) / 21.25 HP (Drawbar)
• Serial Number Range: 501 to 67411+
• Total Production: 66,290 Units
• Pre-Restyle (1958-1963): SN 501–23300
• Post-Restyle (1963-1981): SN 23301 and up

Farmall 140HV — High-Clearance (1958-1980):
• Same C-123 engine as standard 140
• High-Clearance version for row-crop work
• Uses identical radiator (369400R94)

Engine Specifications:
• IH C-123 — 122.7ci (2.0L) 4-Cyl I-Head Gasoline
• Bore: 3.125 inch × Stroke: 4.000 inch
• Rated Speed: 1,400 RPM
• Horsepower: 21 HP (23 HP belt tested)
• Cooling System: Liquid-Cooled, Thermostat Controlled

Production Notes:
• Built at Chicago, Illinois and Louisville, Kentucky USA
• Farmall 140 was a small offset-design utility tractor
• One of IH's longest production runs — 23 years (1958-1981)
• Used extensively for vegetable farming, nurseries, and small acreage
• Restyled in late 1963 with updated sheet metal

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 20.5 lbs.
  • W19.9000” x H13.2000” x L26.6000”
  • Free Shipping!
