International Harvester :
• 121723C1 • 121725C1 • 533586R2 • 71610C1 • 71611C1
• HH121725 • HH71611
• 533586R1 (Earlier Revision) • 533587R2
Alternate Casting Numbers:
• A121725C1 • A71611C1
Cross-References:
• 219587 • 219587-A • 359587 • 359587-A • AR4026
Related Parts (Different Application):
• 378713R91/R92 — IH 656/706/756 Radiator 5-Row (NOT Interchangeable)
• 396352R91 / 65427C1 — Hydro Drive Radiator 27"H×21"W (Different)
Product Specifications:

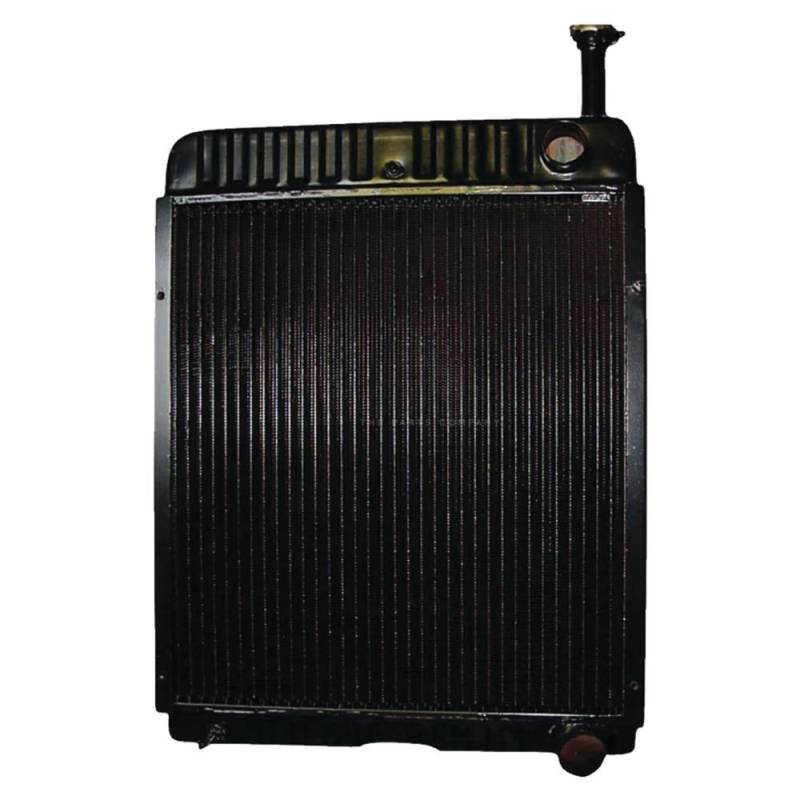

• Type: 6-Row Radiator — Copper Core / Brass Tanks
• Core: 24" H × 22-1/2" W × 2-3/4" Thick
• Fins Per Inch: 8 FPI
• Overall: 24" H × 22-1/8" W × 3" Thick
• Top Hose Connection OD: 2 inch
• Lower Hose Connection OD: 2-1/4 inch
• Neck Height: 4-1/2 inch
• Weight: 31.7 lbs (14.4 kg)
• Pressure Cap: NOT Included
• Engine: D360 / D414 / DT414 / D436 / DT436 / DV-550 Diesel
• Application: IH 766-1568 Row-Crop Tractors, Hydro 100/186
PRODUCT NOTICE:
