Case (With Oil Cooler):
• A39345 • AR39345 • A35583 • E32348
Case (Without Oil Cooler):
• A39344 • A35604
Cross-References:
• 219521 (Northern Radiator)
• 219580 (Without Oil Cooler Variant)
Related Parts (Different Application):
• Case 580C (1975-1980) uses D89103 — NOT Interchangeable
• Case 580D uses D81055 — NOT Interchangeable
• Case 580E/Super E uses A171080 — NOT Interchangeable
• Modern Case 570LXT/570T uses different radiator — NOT Interchangeable
Product Specifications:

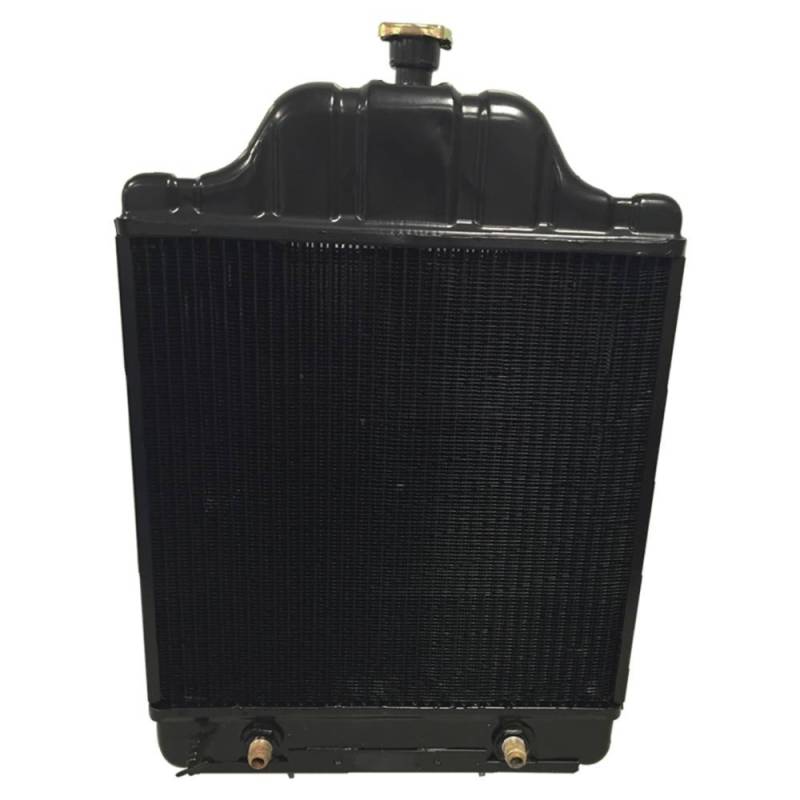

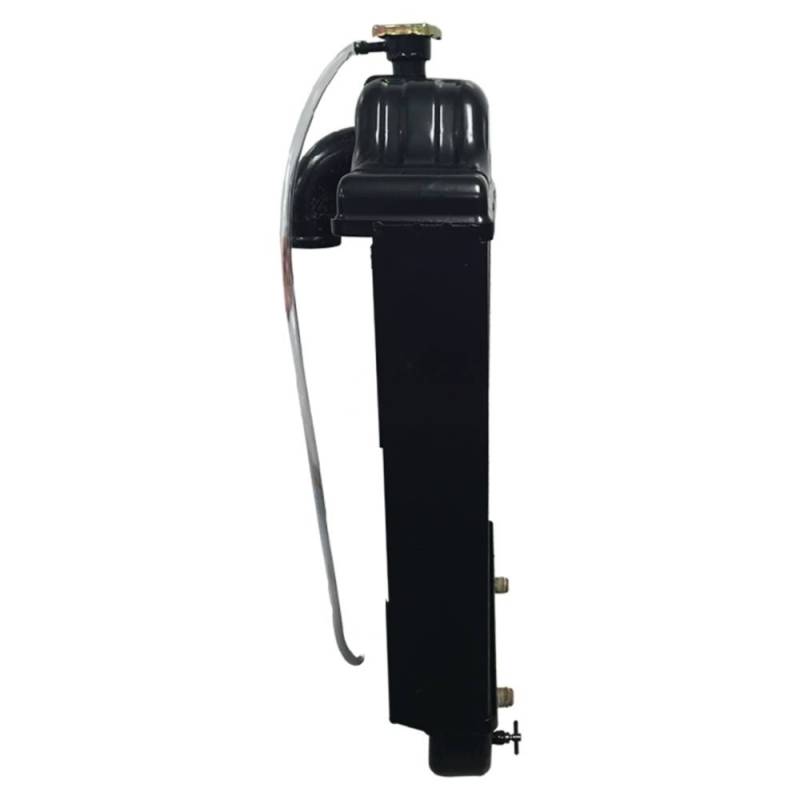

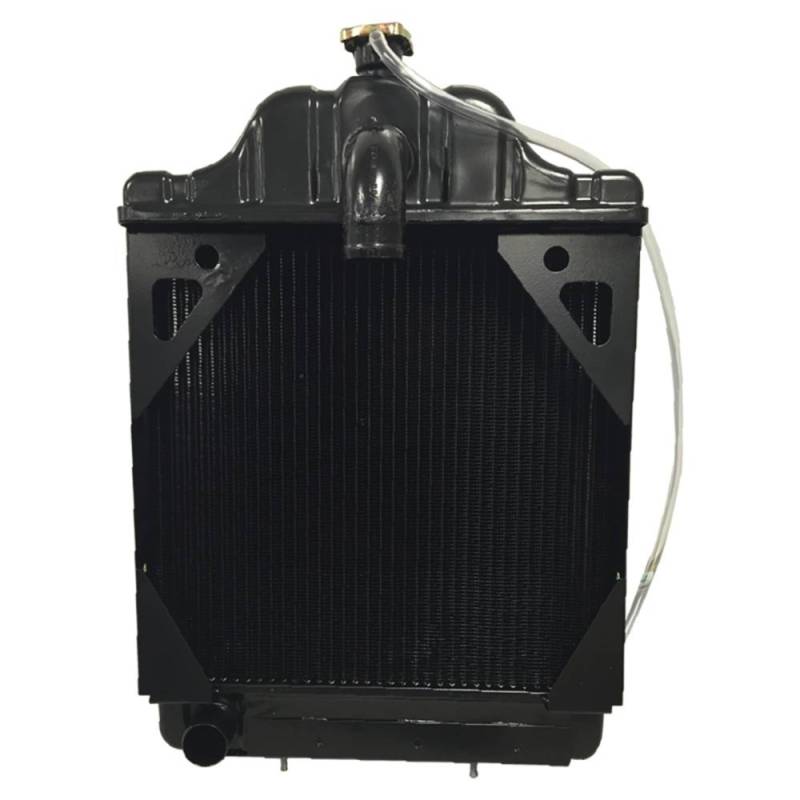

• Type: 3-Row Radiator — Copper Core / Brass Tanks
• Core: 17-9/16" H × 18" W × 2" Thick
• Fins Per Inch: 8 FPI
• Overall: 28-5/8" H × 18-9/16" W × 3-9/16" Thick
• Top Hose Connection OD: 2 inch
• Lower Hose Connection OD: 1-3/4 inch
• Mounting Width: 8-1/16 inch
• Neck Height: 1-3/4 inch
• Weight: 29.36 lbs
• Oil Cooler: On Grill Side — 3/8-18 NPT — 10" Centers
• Pressure Cap: INCLUDED (15 PSI)
• Engine: Case G188D 188ci (3.1L) Diesel or G159 159ci (2.6L) Gasoline
• Application: Case 530CK, 570, 580B, 580CK
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
