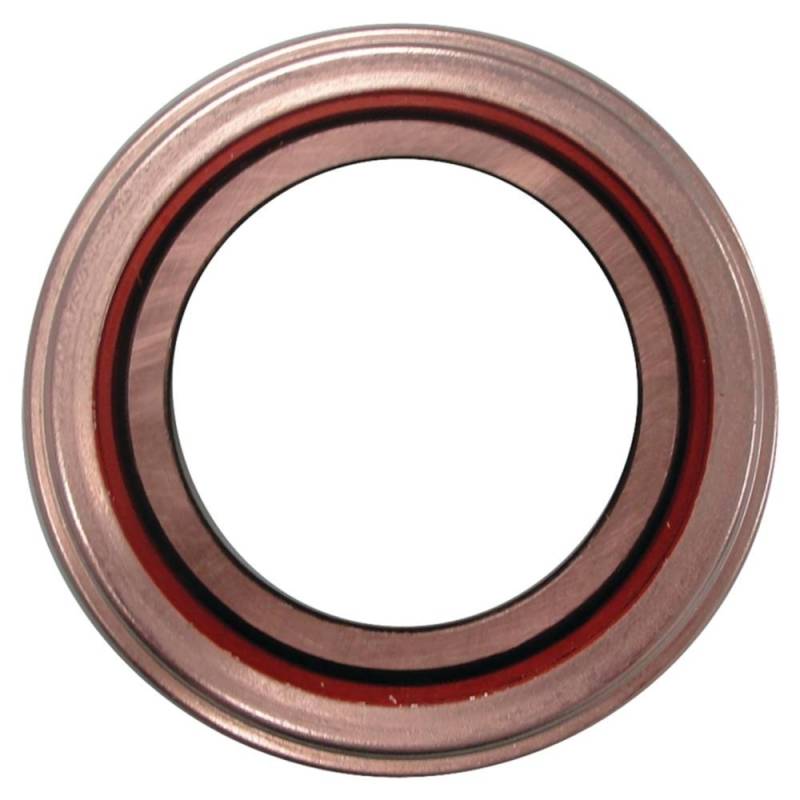

Clutch Release Throw Out Bearing Sealed 2.380 In Id 3.810 In Od Compatible With Case Ih 784 884 885

(0) Reviews: Write first review
1712-7030A7
International Harvester / Case IH :
• 528098R91 (Clutch Release Bearing — Primary)
• 528098R92 (Revision — Primary)
• 158125C91 (Case IH Designation)
• 360502R91 (Alternate IH Number)
• 365866R91 (Alternate IH Number)
• 365865R91 (Alternate IH Number)
• 405625R91 (Alternate IH Number)
• 59879D (Early IH Number)
• 85104C91 (Case IH Alternate)
• 85119C91 (Case IH Alternate)
• 1502575C91 (Case IH Alternate)

Cross-Reference:
• Hy-Capacity: 832375 • H832375 • 832375-10
• Sparex: S.72784
• A-2322-1 • T9203

Related Clutch Components (Sold Separately):
• Pressure Plate — 10.5 / 11 inch (varies by model)
• Clutch Disc — 10.5 / 11 inch (varies by model)
• Pilot Bearing — Separate Part Number
• Release Fork — Separate Part Number

Product Specifications:
• Type: Clutch Release Bearing — Throw-Out Bearing
• Bearing Type: Sealed Ball Thrust — Non-Greaseable
• Inner Diameter: 2.380 inch (Round)
• Outer Diameter: 3.810 inch
• Width Overall: 0.800 inch
• Seal: Double Sealed — Pre-Lubricated for Life
• Carrier: Stamped Steel
• Weight: 1.04 lbs
• Application: IH 300-656, Case IH 384-995, Industrial 2400A-3500A

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $109.46
Sale: $62.55
Save: 43%
Save: $46.91
Qty:
Free Shipping!

Description

International Harvester Utility (1955-1965):
• International 300 — 4-Cyl Gasoline / LP Gas — 169ci (2.8L) — 36-40 HP — 1955-1956
• International 330 — 4-Cyl Gasoline — 135ci — 36-42 HP — 1957-1958
• International 340 — 4-Cyl Gasoline (135ci) / Diesel (166ci) — 47 HP — 1957-1965
• International 350 — 4-Cyl Gas / LP / Diesel — 169ci (2.8L) — 52 HP — 1956-1958

International 04 / 60 Series (1961-1972):
• International 404 — C-135 4-Cyl Gasoline / LP — 135ci (2.2L) — 37 HP — 1961-1968
• International 444 — BD-154 Diesel (154ci) / C-153 Gas (153ci) 4-Cyl — 37-38 HP — 1963-1972
• International 460 — C-135 Gas / D-155 Diesel — 36-38 HP — 1961-1969
• International 504 — D-188 Diesel (188ci) / C-175 Gas (175ci) 4-Cyl — 58 HP — 1961-1968
• International 606 — 6-Cyl Diesel — 70-75 HP — 1962-1966
• International 656 — 6-Cyl Diesel — 75 HP — 1965-1972

International 44/54/64/66/74 Series (1968-1978):
• International 454 — D-179 3-Cyl Diesel (179ci / 2.9L) — 40 HP — 1970-1973
• International 464 — D-179 3-Cyl Diesel — 44 HP — 1973-1978
• International 474 — D-206 4-Cyl Diesel (206ci / 3.4L) — 51-55 HP — 1975-1978
• International 544 — C-200 Gas (200ci) / D-239 Diesel (239ci / 3.9L) 4-Cyl — 58-65 HP — 1968-1977
• International 574 — D-206 Diesel / C-200 Gas 4-Cyl — 67 HP — 1970-1978
• International 664 — D-239 4-Cyl Diesel — 65-70 HP — 1973-1977
• International 666 — D-239 4-Cyl Diesel — 75 HP — 1972-1976
• International 674 — D-206 Diesel / C-200 Gas 4-Cyl — 65 HP — 1973-1977

International / Case IH 84 Series (1977-1985):
• Case IH 384 — BD-154 4-Cyl Diesel — 154ci (2.5L) — 44 HP — 1977-1984
• Case IH 484 — D-206 4-Cyl Diesel — 206ci (3.4L) — 55 HP — 1978-1985
• Case IH 584 — D-206 4-Cyl Diesel — 60 HP — 1977-1984
• Case IH 684 — D-246 4-Cyl Diesel — 246ci (4.0L) — 69 HP — 1977-1984
• Case IH 784 — D-268 4-Cyl Diesel — 268ci (4.4L) — 85 HP — 1978-1984
• Case IH 884 — D-268 4-Cyl Diesel — 81 HP — 1980-1985

Case IH 85/95 Series (1978-1994):
• Case IH 385 — BD-154 Diesel / C-153 Gas — 38-48 HP — 1978-1985
• Case IH 485 — D-206 4-Cyl Diesel — 60 HP — 1978-1990
• Case IH 585 — D-206 4-Cyl Diesel — 60 HP — 1985-1990
• Case IH 685 — D-246 4-Cyl Diesel — 68 HP — 1985-1990
• Case IH 695 — D-246 4-Cyl Diesel — 77 HP — 1985-1994
• Case IH 495 — D-179 3-Cyl Diesel — 179ci (2.9L) — 53 HP — 1991-1994
• Case IH 595 — D-206 4-Cyl Diesel — 60 HP — 1985-1994
• Case IH 885 — D-268 4-Cyl Diesel — 268ci (4.4L) — 84 HP — 1985-1990
• Case IH 895 — D-268 4-Cyl Diesel — 84 HP — 1991-1994
• Case IH 995 — D-268 Turbo 4-Cyl Diesel — 104 HP — 1991-1994

Industrial Models:
• International 2400A / 2400B — D-155 / D-179 3-Cyl Diesel — 40-50 HP — 1973-1978
• International 2424 / 2444 — BD-154 Diesel / C-153 Gas 4-Cyl — 42-44 HP — 1963-1978
• International 2500A / 2500B — D-206 4-Cyl Diesel — 55-65 HP — 1975-1978
• International 2504 — D-188 Diesel / C-175 Gas 4-Cyl — 58 HP — 1961-1968
• International 2544 — C-200 Gas / D-239 Diesel 4-Cyl — 58-65 HP — 1968-1973
• International 2606 — 6-Cyl Diesel — 70-75 HP — 1962-1967
• International 2656 — 6-Cyl Diesel — 75-80 HP — 1967-1971
• International 3400A / 3444 / 3500A — D-155 3-Cyl Diesel — 40-55 HP — 1970s

Compatibility Notes:
• Fits 10.5 inch and 11 inch clutch systems
• 2.380 inch round ID — verify matches your release fork
• Production span: 1955 to 1994 across all compatible models
