Case IH :
• A189087 • A189091 • A190663 • HA190663
• A190659 • A190807 (Interchangeable)
Superseded Earlier Numbers:
• A184225 • A184439 • A184441 • A184443
Cross-References:
• 219728 ( Reference)
Related Parts (Different Application):
• 140501A2 / AM140501A2 — Later SN 7200-Series Radiator (SN JJA0064978+, NOT Interchangeable)
• Later radiator has different dimensions: 34-1/2" H × 29-1/4" W × 5-1/4" D
Product Specifications:

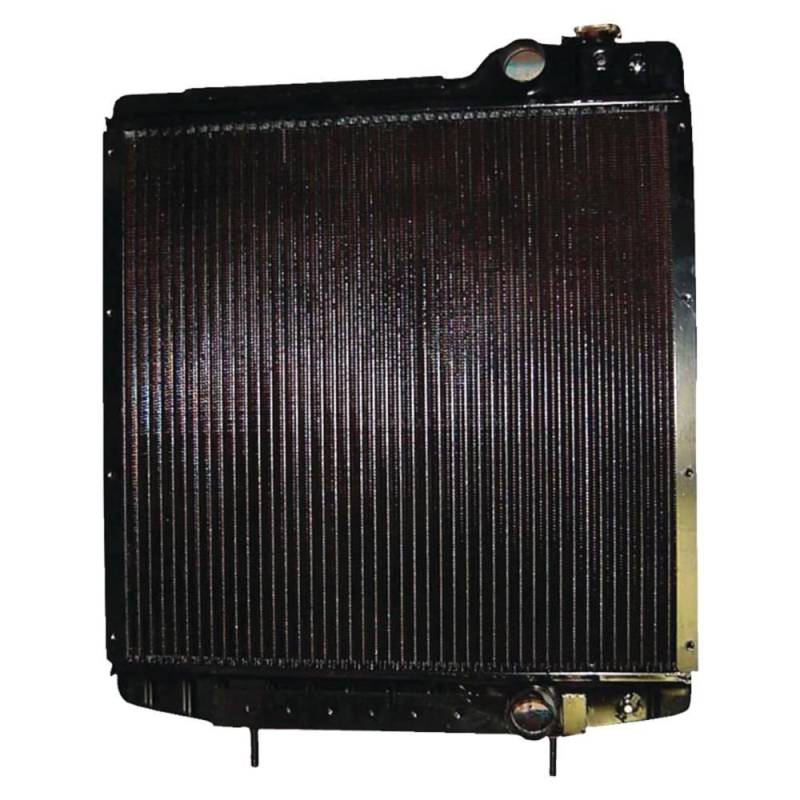

• Type: 6-Row Radiator — Copper Core / Brass Tanks
• Core: 26-1/4" H × 27-3/4" W × 3-7/8" Thick
• Fins Per Inch: 8 FPI
• Overall: 32-1/8" H × 28-5/8" W × 3-1/2" Thick
• Top Hose Connection OD: 2-1/4 inch
• Lower Hose Connection OD: 2-1/4 inch
• Mounting Width: 21 inch
• Neck Height: 3/4 inch
• Pressure Cap: NOT Included
• Engine: CDC 505 (8.3L) 6-Cyl Turbocharged Diesel
• Application: Case IH Magnum 7110-7150, 7210-7250 (Early SN)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
