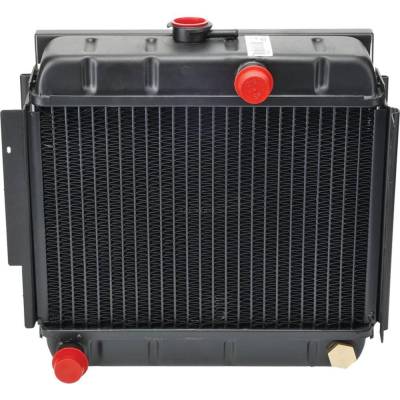

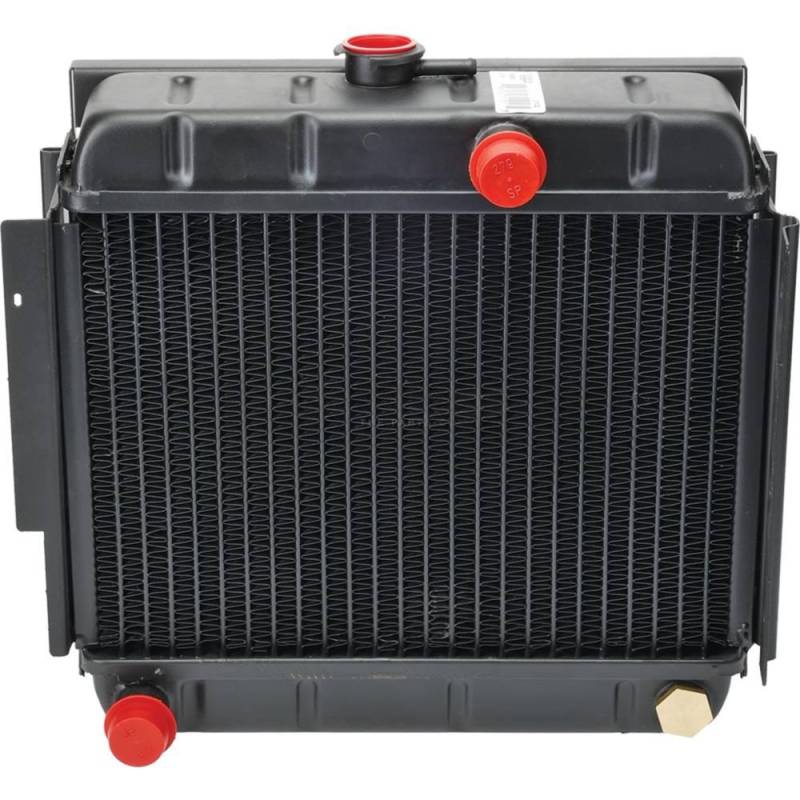

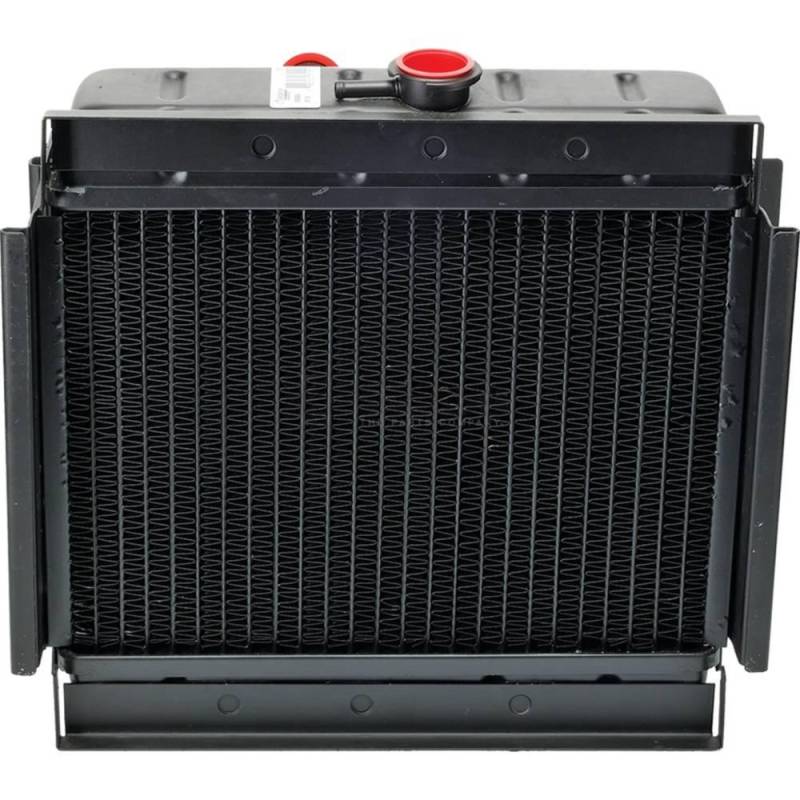

Radiator Compatible With John Deere Gator 6X4 Gas 4X2 Trailgator Diesel M-Gator 15.5 Hp Kawasaki

1406-6365A1
OEM Part Numbers:
- AM116381 (John Deere)
- AM116382 (John Deere)
- VGA10978 (John Deere)
- CJD0101 (Aftermarket)
- 2455004 (Aftermarket)

PART SPECIFICATIONS:
- Core: 9-1/8"H x 12-1/8"W x 2-1/2" Thick
- Material: Copper Core / Brass Tanks
- Weight: 12.205 lbs
- Inlet: 1" OD (Top)
- Outlet: 1" OD (Bottom)
- Drain: 1/4" NPT
- Cap: Included

APPLICATION SUMMARY:
- Gator 4x2 Gas - 15.5 HP 675cc V-Twin
- Gator 6x4 Gas - 15.5 HP 675cc V-Twin
- TrailGator - Kawasaki Gasoline
- Diesel Gator - 18.2 HP 993cc 3-Cyl
- M-Gator Military - 20.8 HP 854cc 3-Cyl

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $1,257.87
Sale: $718.78
Save: 43%
Save: $539.09
Qty:
Free Shipping!

Description

John Deere Gator Utility Vehicle Applications:

Gator 4x2 (Gas)
- Engine: 15.5 HP Kawasaki FD620D 675cc V-Twin Liquid-Cooled Gasoline
- Bore x Stroke: 3.07" x 2.76"
- Fuel System: Carburetor
- Cooling: Liquid-Cooled with Thermostat
- Transmission: CVT
- Payload: 800 lbs
- Top Speed: 15 mph

Gator 6x4 (Gas)
- Engine: 15.5 HP Kawasaki FD620D 675cc V-Twin Liquid-Cooled Gasoline
- Bore x Stroke: 3.07" x 2.76"
- Fuel System: Carburetor
- Cooling: Liquid-Cooled with Thermostat
- Transmission: CVT
- Drive: Six-Wheel Drive (6x4)
- Payload: 1200 lbs
- Top Speed: 15 mph

TrailGator
- Engine: Kawasaki Liquid-Cooled Gasoline
- Compact Utility Vehicle

Diesel Gator
- Engine: 18.2 HP Yanmar 3TNE68 993cc 3-Cylinder Diesel
- Bore x Stroke: 2.68" x 2.76"
- Fuel System: Direct Injection
- Cooling: Liquid-Cooled
- Payload: 1200 lbs

M-Gator Military 6x4
- Engine: 20.8 HP Yanmar 3TNE84 854cc 3-Cylinder Diesel
- Military Specification Utility Vehicle
- Heavy-Duty Frame and Suspension
- Six-Wheel Drive
