International Harvester :
• 360720R91 (Vertical Muffler — Primary)
• 360720R91GV (Galvanized Variant)
• 360720R92 (Revision)
Stanley Brand:
• IH-3 (Stanley Vertical Muffler)
Cross-Reference:
• A360720R92 (Alternate Number)
• A138487 (Alternate Cross-Reference)
• 234494 (Alternate Number)
• TO7530 (TISCO Number)
• 856-IH3 ()
NOT Compatible With:
• Farmall Cub / Cub Lo-Boy — Uses different muffler
• Farmall H / HV / M / MD — Uses larger exhaust muffler
• Horizontal exhaust models — This is VERTICAL exhaust only
Product Specifications:

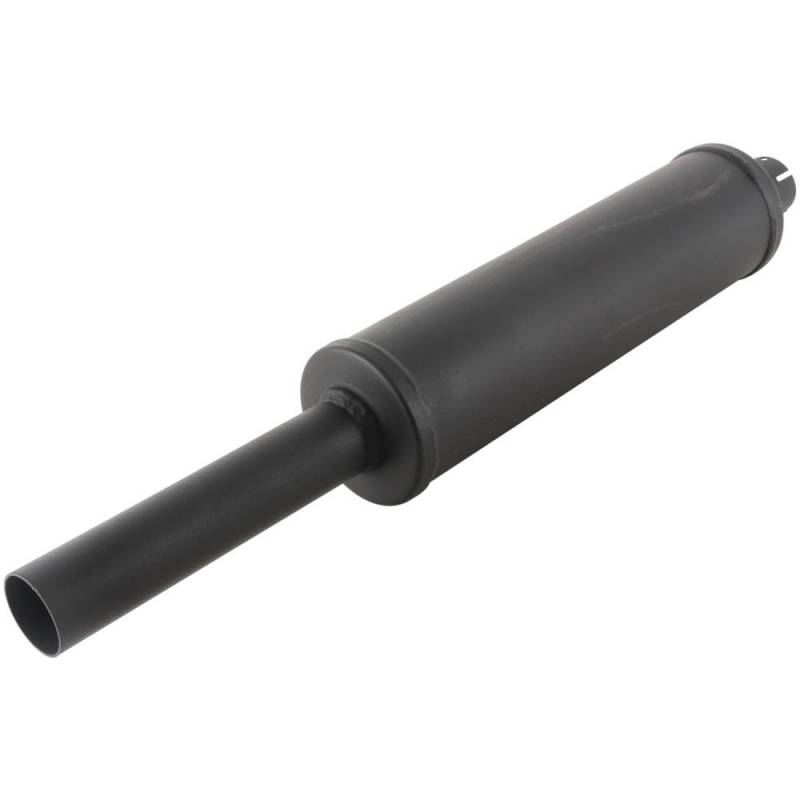

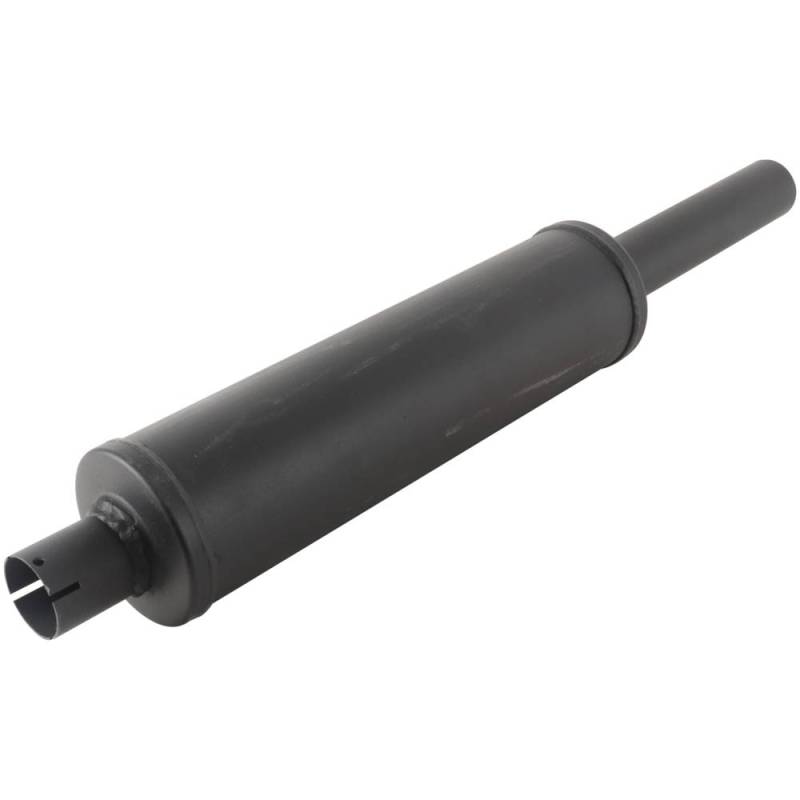

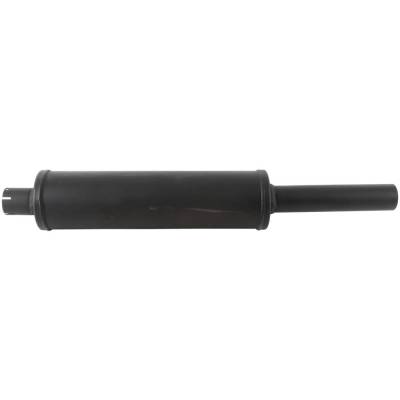

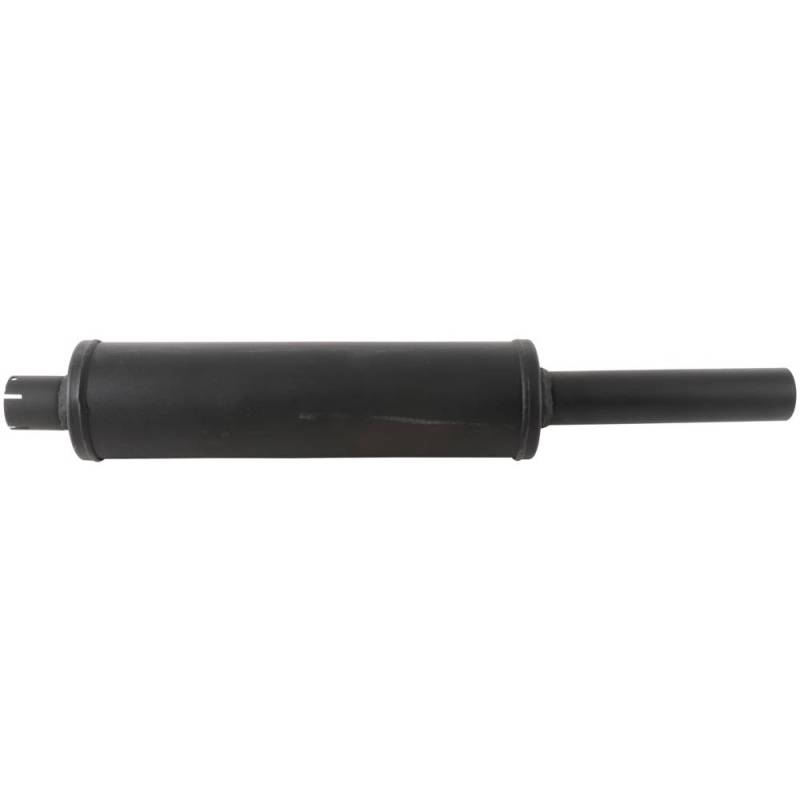

• Type: Vertical Round Exhaust Muffler
• Material: Aluminum
• Overall Length: 29 inch
• Body Diameter: 4-1/4 inch (4.25 inch)
• Shell Length: 17 inch
• Inlet Diameter: 1-15/16 inch ID
• Inlet Pipe Length: 2-3/4 inch
• Outlet Diameter: 2 inch OD
• Outlet Pipe Length: 9-1/4 inch
• Weight: 6 lbs
• Clamp: NOT Included — Requires 2 inch Saddle Clamp
• Application: Farmall A-C, Super A/C, 100-340 (1939-1981)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
