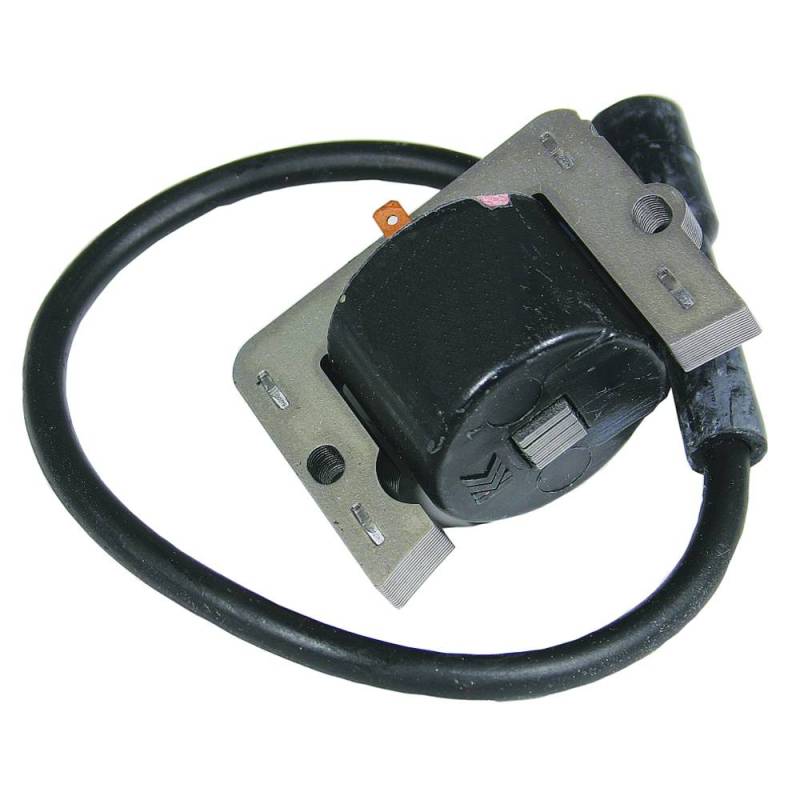

Electronic Module Compatible With Kohler Cv460 Cv490 Cv491 Cv492 Cv493 Command Replaces 2609652

(0) Reviews: Write first review
055-465A7
OEM PART NUMBERS:
• Ariens: 20981500
• Kohler: 12 584 02 / 12-584-02 / 1258402
• Kohler: 12 584 02-S / 12-584-02-S / 1258402S
• Kohler: 12 584 05-S / 12-584-05-S / 1258405S
• Kohler: 12 757 04 / 12-757-04 / 1275704
• Kohler: 2609652

SPECIFICATIONS:
• Product Type: Solid State Ignition Module
• Engine Type: Kohler Command CH & CV Series
• Displacement Range: 398cc - 490cc (24.3 - 29.9 cu.in.)
• Horsepower Range: 11HP - 17HP @ 3600 RPM
• Configuration: Single-Cylinder OHV 4-Stroke Air-Cooled
• Shaft Types: Horizontal (CH-series) and Vertical (CV-series)
• Ignition Type: Electronic Magneto with Solid State Module
• Condition: New Aftermarket Replacement

ENGINE MODEL APPLICATIONS:
• Kohler CH-Series (Horizontal): CH11, CH12.5, CH125, CH13, CH14, CH15, CH15PT, CH15ST, CH15T, CH410, CH430, CH440, CH450
• Kohler CV-Series (Vertical): CV11, CV12.5, CV125, CV125T, CV13, CV13T, CV14, CV14ST, CV14T, CV15, CV15ST, CV15T, CV430, CV450, CV460, CV461, CV490, CV491, CV492, CV493, CV493T

EQUIPMENT BRAND APPLICATIONS:
• Craftsman: 917-series lawn tractors (60+ models with Kohler Command engines)
• Husqvarna: 954/966/967/968-series lawn tractors (40+ models)
• John Deere: GT225 garden tractors (GT225-38, -42C, -42M, -44M, -48C, -54)
• Scag: Commercial zero-turn mowers SW/SWZ series (14 models)
• Dixon: Zero-turn mowers 965/966/968-series (16 models)
• Ariens, AYP, Bobcat, Dixie Chopper, Ferris, Poulan, Simplicity: Various models with Kohler Command engines

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $281.61
Sale: $160.92
Save: 43%
Save: $120.69
Qty:
Free Shipping!

Description

KOHLER COMMAND CH SERIES ENGINES (HORIZONTAL SHAFT):
• CH11 398cc (24.3 cu.in.) Single-Cyl OHV 4-Stroke Air-Cooled 11HP
• CH12.5 / CH125 398cc (24.3 cu.in.) Single-Cyl OHV 4-Stroke Air-Cooled 12.5HP
• CH13 398cc (24.3 cu.in.) Single-Cyl OHV 4-Stroke Air-Cooled 13HP
• CH14 398cc (24.3 cu.in.) Single-Cyl OHV 4-Stroke Air-Cooled 14HP
• CH15 / CH15PT / CH15ST / CH15T 426cc (26.0 cu.in.) Single-Cyl OHV 4-Stroke Air-Cooled 15HP
• CH410 398cc Single-Cyl OHV 4-Stroke Air-Cooled 14HP
• CH430 429cc Single-Cyl OHV 4-Stroke Air-Cooled 14HP
• CH440 429cc Single-Cyl OHV 4-Stroke Air-Cooled 14HP
• CH450 426cc Single-Cyl OHV 4-Stroke Air-Cooled 15HP

KOHLER COMMAND CV SERIES ENGINES (VERTICAL SHAFT):
• CV11 398cc (24.3 cu.in.) Single-Cyl OHV 4-Stroke Air-Cooled Vertical Shaft 11HP
• CV12.5 / CV125 / CV125T 398cc (24.3 cu.in.) Single-Cyl OHV 4-Stroke Air-Cooled Vertical Shaft 12.5HP
• CV13 / CV13T 398cc (24.3 cu.in.) Single-Cyl OHV 4-Stroke Air-Cooled Vertical Shaft 13HP
• CV14 / CV14ST / CV14T 398cc (24.3 cu.in.) Single-Cyl OHV 4-Stroke Air-Cooled Vertical Shaft 14HP
• CV15 / CV15ST / CV15T 426cc (26.0 cu.in.) Single-Cyl OHV 4-Stroke Air-Cooled Vertical Shaft 15HP
• CV430 426cc Single-Cyl OHV 4-Stroke Air-Cooled Vertical Shaft 15HP
• CV450 426cc Single-Cyl OHV 4-Stroke Air-Cooled Vertical Shaft 15HP
• CV460 / CV461 460cc (27.9 cu.in.) Single-Cyl OHV 4-Stroke Air-Cooled Vertical Shaft 16HP
• CV490 / CV491 / CV492 / CV493 / CV493T 490cc (29.9 cu.in.) Single-Cyl OHV 4-Stroke Air-Cooled Vertical Shaft 17HP

CRAFTSMAN LAWN TRACTORS (60+ models with Kohler engines):
• Models: 917252542, 917256540, 917256541, 917256542, 917256543, 917256544, 917256550, 917256551, 917256552, 917256583, 917256591, 917256610, 917256611, 917257660, 917258542, 917258544, 917258551, 917258557, 917259542, 917259546
• Additional models: 917259547, 917259550, 917259553, 917259555, 917259556, 917271011, 917271013, 917271014, 917271020, 917271021, 917271022, 917271024, 917271041, 917271050, 917271051, 917271052, 917271060, 917272051, 917272052, 917272055
• Additional models: 917272057, 917272058, 917272059, 917272060, 917272061, 917272065, 917272066, 917272067, 917272069, 917272072, 917272074, 917272075, 917272082, 917272083, 917272220, 917272420, 917272480, 917272481, 917273135, 917273140, 917273143, 917273150, 917273180

HUSQVARNA LAWN TRACTORS (40+ models with Kohler engines):
• Models: 954000522, 954001202C, 954140005, 954140005B, 954140005D, 954140005E, 954140005F, 954140005G, 954140005H, 954140005K, 954140007B, 954140007C, 954140007E, 954140007J, 95414007, 954140100A, 954140101A, 954140107A, 954140108A, 954140108B
• Additional models: 954568519, 954568526, 954568533, 954569776, 954569790, 966582601, 966582701, 966663701, 966663702, 967003901, 967003903, 967177002, 967177003, 968999505, 968999658, 968999696, 968999749, 968999780, EZ4220BF, LTH130

JOHN DEERE GARDEN TRACTORS (GT225 Series with Kohler Command engines):
• Models: GT225-38, GT225-42C, GT225-42M, GT225-44M, GT225-48C, GT225-54

SCAG COMMERCIAL MOWERS (14 models with Kohler engines):
• Models: SCZ72V-34KH, SW32-13KH, SW36A-13KH, SW36A-15KH, SW48A-15KH, SW52A-18KH, SW52V-18KH, SWZ36-14KH, SWZ48-14KH, SWZ48-15KH, SWZ52A-18KH, SWZ52V-18KH, SWZU36-15KH, SWZU52A-18KH

OTHER EQUIPMENT BRANDS:
• AYP: PDC18H42STA
• Ariens: 935025, 935026, 935031
• Bobcat: XM5412, XM5421
• Dixie Chopper: LT1800-34, LT1800-44
• Dixon: 965871801, 966985301, 966985302, 966985401, 966985402, 968999551, 968999552, 968999559, 968999581, 968999650, 968999722, 968999723, 968999724, 968999725, 968999726, 968999773
• Ferris: 5901194
• Poulan: PRK17H42ST, PRO-PD1842STA, PRO-PD18H42STA
• Simplicity: 1692416

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.6 lbs.
  • W3.5000” x H3.3000” x L4.2000”
  • Free Shipping!
